Code 51 - Switch Condition Signal
Code 51 - Switch Condition Signal
Fig 1: Code 51 Flow Chart - 1 Of 2 (SC400) Switch Condition Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

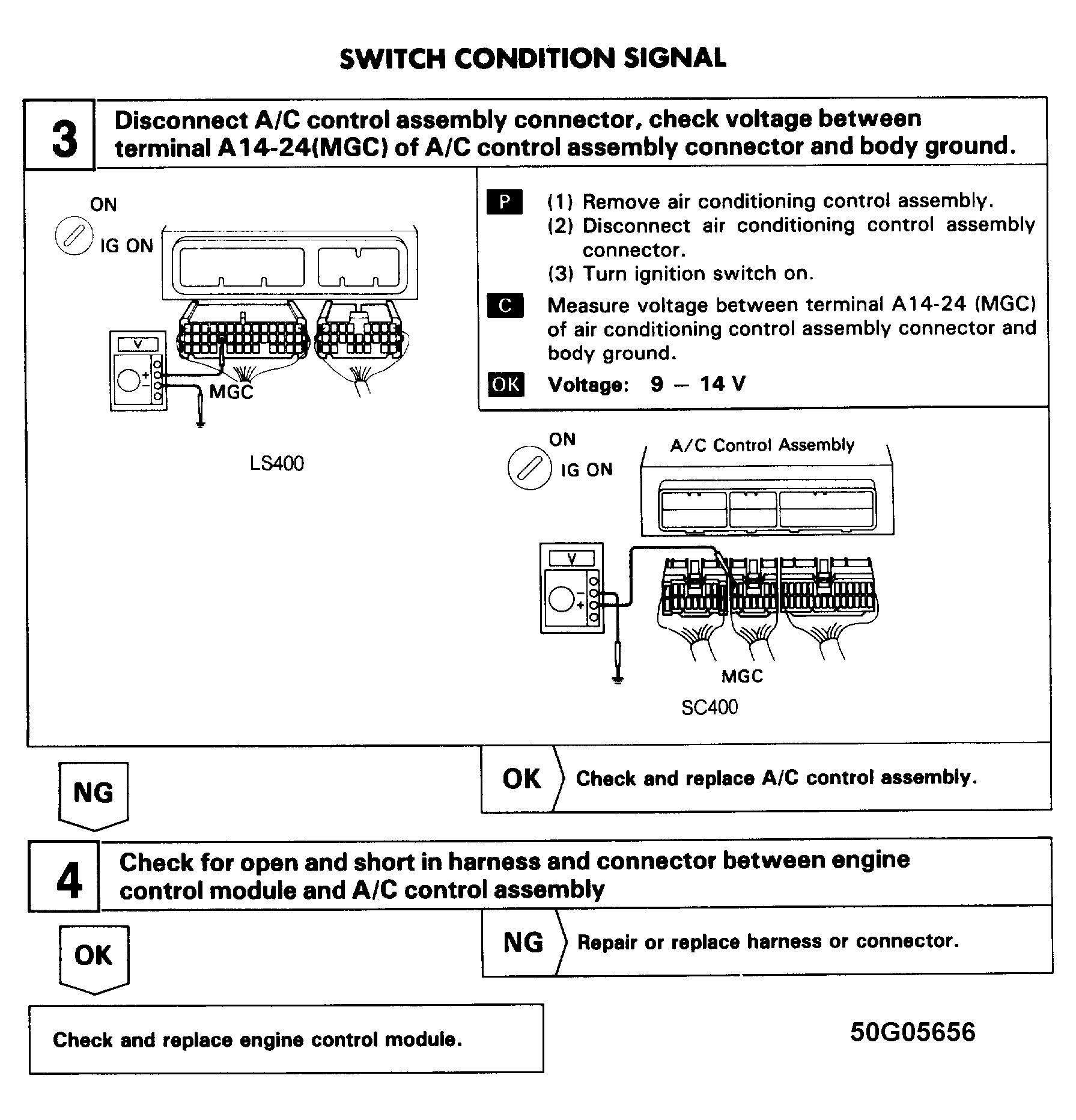

Fig 2: Code 51 Flow Chart - 2 Of 2 (SC400) Switch Condition Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
