Code 71 - EGR System Malfunction

NOTE: After repairs are completed, perform TROUBLE CODE DETECTION DRIVING PATTERN TEST at end of testing for this trouble code.

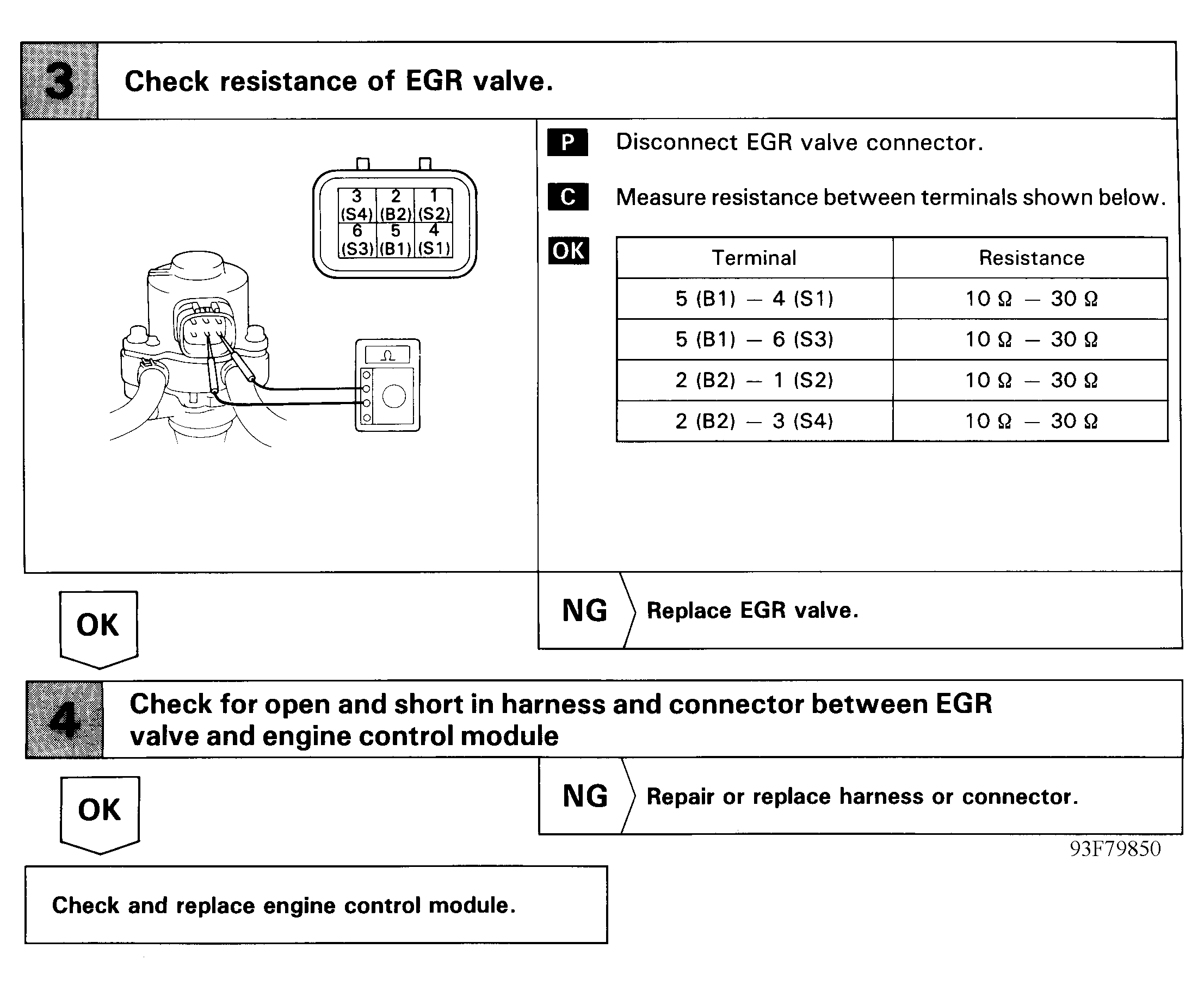

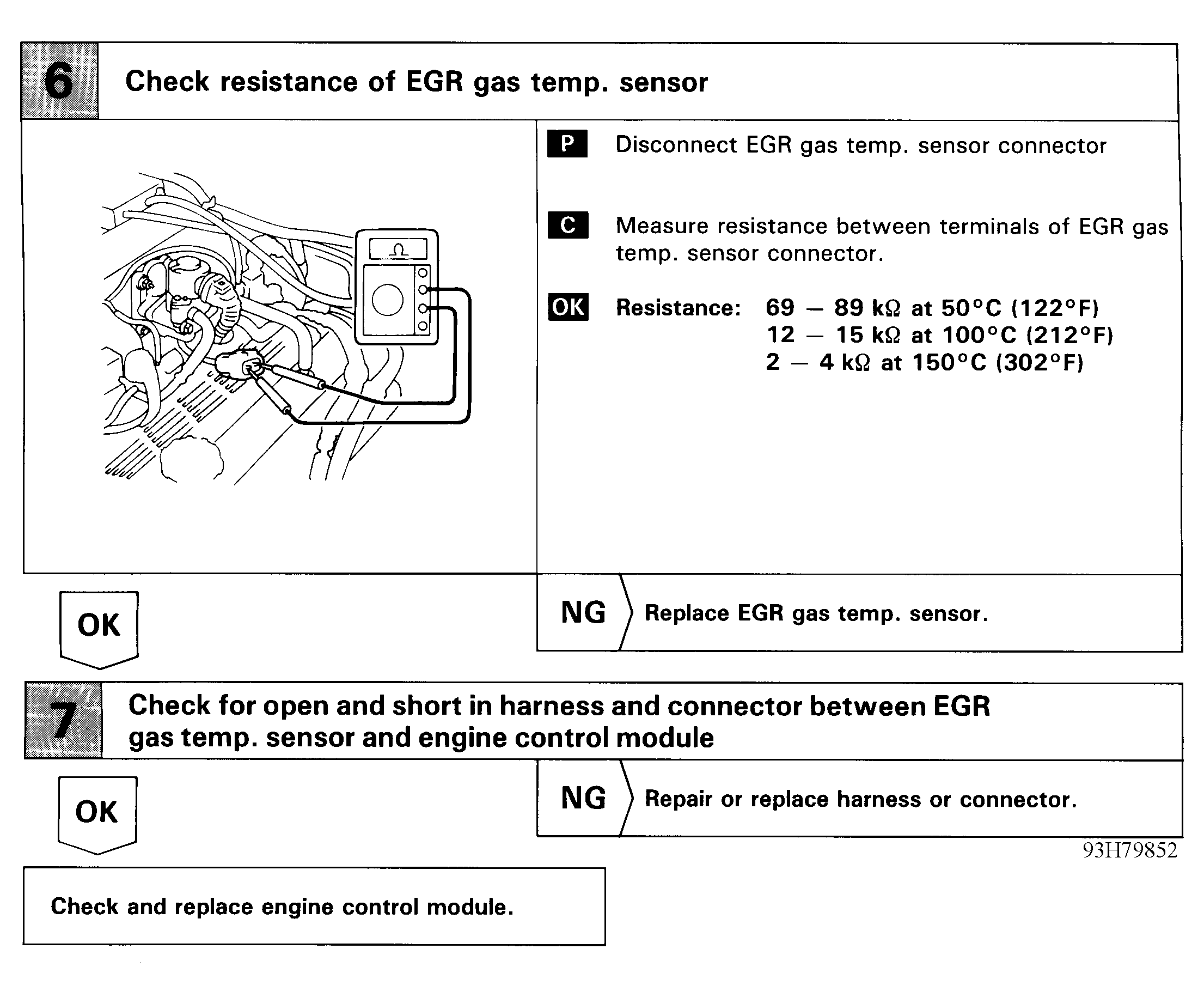

Fig 1: Code 71 Flow Chart - 1 Of 4 (SC400) EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Code 71 Flow Chart - 2 Of 4 (SC400) EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Code 71 Flow Chart - 3 Of 4 (SC400) EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Code 71 Flow Chart - 4 Of 4 (SC400) EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Code 71 Diag. Trouble Code Detection Driving Test (SC400) EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
