Fuse Panel Identification - 1995
WARNING:
Always disconnect battery ground cable before servicing high-current fuses. It is recommended that high-current fuses be replaced by a qualified technician.

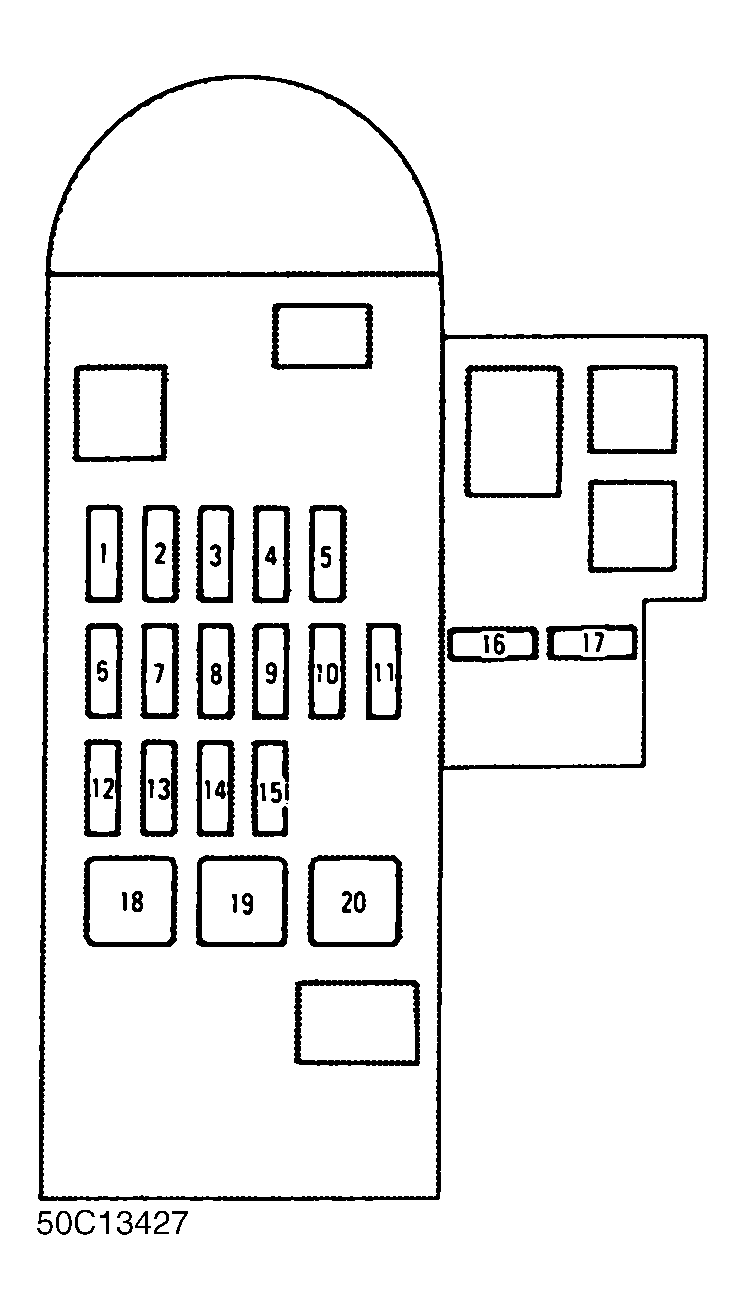

Fuse & Circuit Breaker Identification
- 1 - 7.5 Amp - Charging System
- 2 - 10 Amp - Air Conditioning System, Rear Window Defogger
- 3 - 20 Amp - Windshield Wipers & Washers
- 4 - 7.5 Amp - Starting System, Cruise Control, Multiport Fuel Injection System/Sequential Multiport Fuel Injection System, Instrument Panel Lights
- 5 - 7.5 Amp - Discharge Warning Light, Multiport Fuel Injection System/Sequential Multiport Fuel Injection System, SRS Air Bag System
- 6 - 7.5 Amp - Instrument Panel Lights, Glove Box Light
- 7 - 10 Amp - Outside Rear View Mirror Defogger
- 8 - 20 Amp - Turn Signal & Cornering Lights
- 9 - 15 Amp - Stoplights, Cruise Control Cancel Device
- 10 - 15 Amp - Cigarette Lighter, Theft Deterrent System, Shift Lock System, SRS Air Bag System, Instrument Panel Lights
- 11 - 7.5 Amp - Radio, Cassette Tape Player, Compact Disc Player, Power Antenna, Power Rear View Mirrors
- 12 - 15 Amp - Tail, Parking, Side Marker & License Plate Lights
- 13 - 15 Amp - Cruise Control System, Power Steering Control System, Shift Lock System, Anti-Lock Brake System, SRS Air Bag System, Power Door Lock System, Preset Steering, Traction Control System, Electronically Controlled Hydraulic-Driven Cooling System, Passenger's Seat Control System
- 14 - 10 Amp - Gauges & Meters, Service Reminder Indicators & Warning Buzzers (Except Discharge & Open Door Warning Lights), Back-Up Lights, Headlights, Electronically Controlled Automatic Transmission System, Automatic Transmission Overdrive System, Headlight
- 15 - 15 Amp - SRS Air Bag System, Power Rear View Mirrors
- 16 - 15 Amp - Fog Lights
- 17 - 15 Amp - Seat Heater
- 18 - 30 Amp - Preset Steering, Electronic Moon Roof, Power Windows, Theft Deterrent System
- 19 - 40 Amp - Starting System
- 20 - 30 Amp - Theft Deterrent System, Seat Control System, Fuel Opener Control System, Power Door lock System
- 21 - 10 Amp - Interior Light, Personal Light, Door Courtesy Lights, Ignition Switch Light, Open Door Warning Light, Trunk Room Light, Electronic Moonroof System, Preset Steering System, Seat Belt Reminder System, Cruise Control System, Air Conditioning System, Inside Rear View Mirror, Door Lock & Theft Deterrent System, Foot Light, Power Rear View Mirror, Locking With Wireless Remote Control System, Passenger's Seat Control System
- 22 - 30 Amp - Multiport Fuel Injection System/Sequential Multiport Fuel Injection System
- 23 - 25 Amp - Emergency Flashers, Horns
- 24 - 20 Amp - Radio, Cassette Tape Player, Compact Disc Player, Power Antenna
- 25 - 15 Amp - Telephone
- 26 - 7.5 Amp - Charging System
- 27 - 7.5 Amp - Traction Control System
- 28 - 15 Amp - Right Hand Headlight (Low Beam)
- 29 - 15 Amp - Left Hand Headlight (Low Beam)
- 30 - 7.5 Amp - Daytime Running Light System (Canada Only)
- 31 - 15 Amp - Right Hand Headlight (High Beam)
- 32 - 15 Amp - Left Hand Headlight (High Beam)
- 33 - 30 Amp - Starting System
