Test 10 - Door Open Detection Switch Circuit

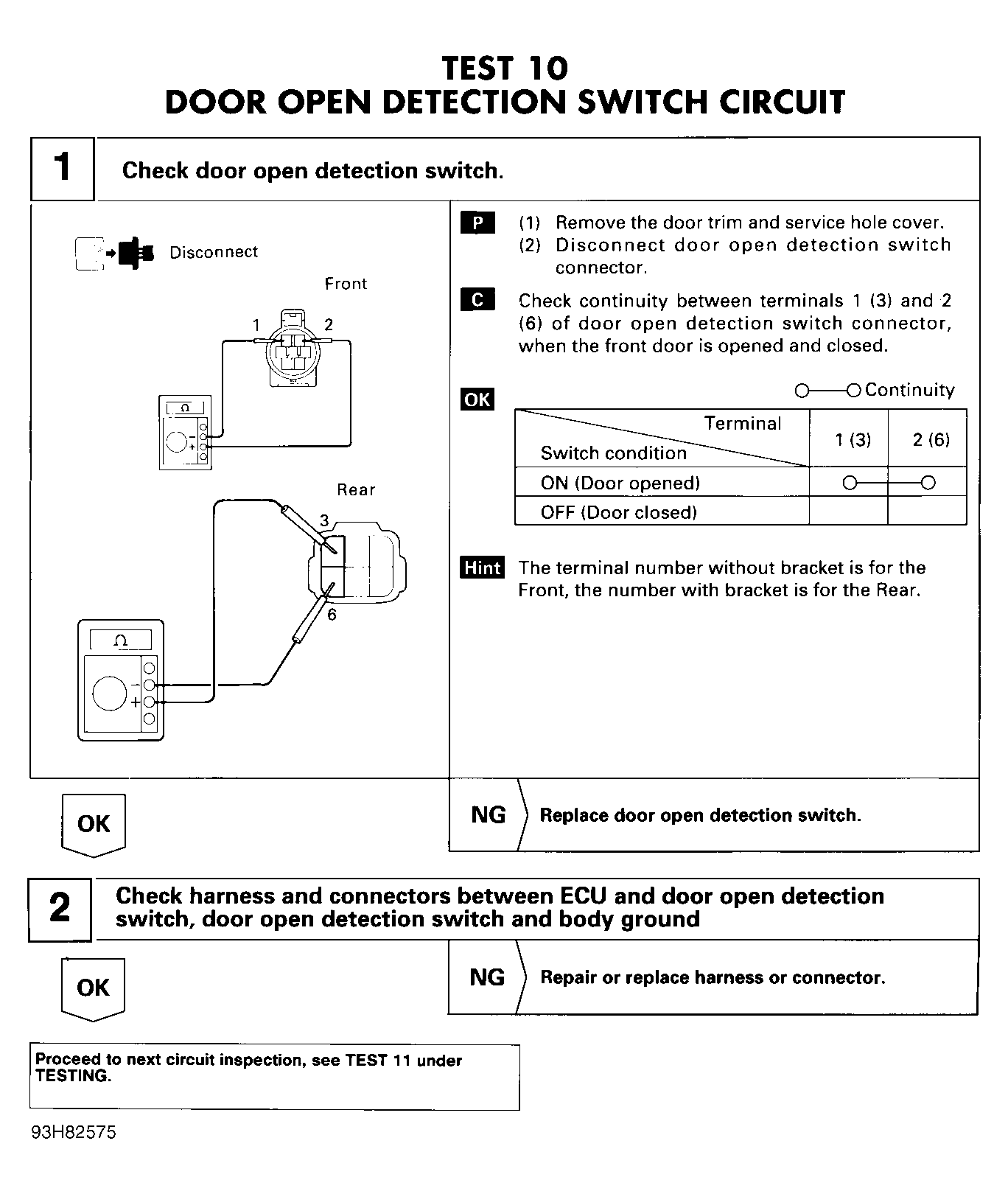

Fig 1: Test 10 - Door Open Detection Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
