Test 11 - Door Unlock Detection Switch Circuit
Test 11 - Door Unlock Detection Switch Circuit

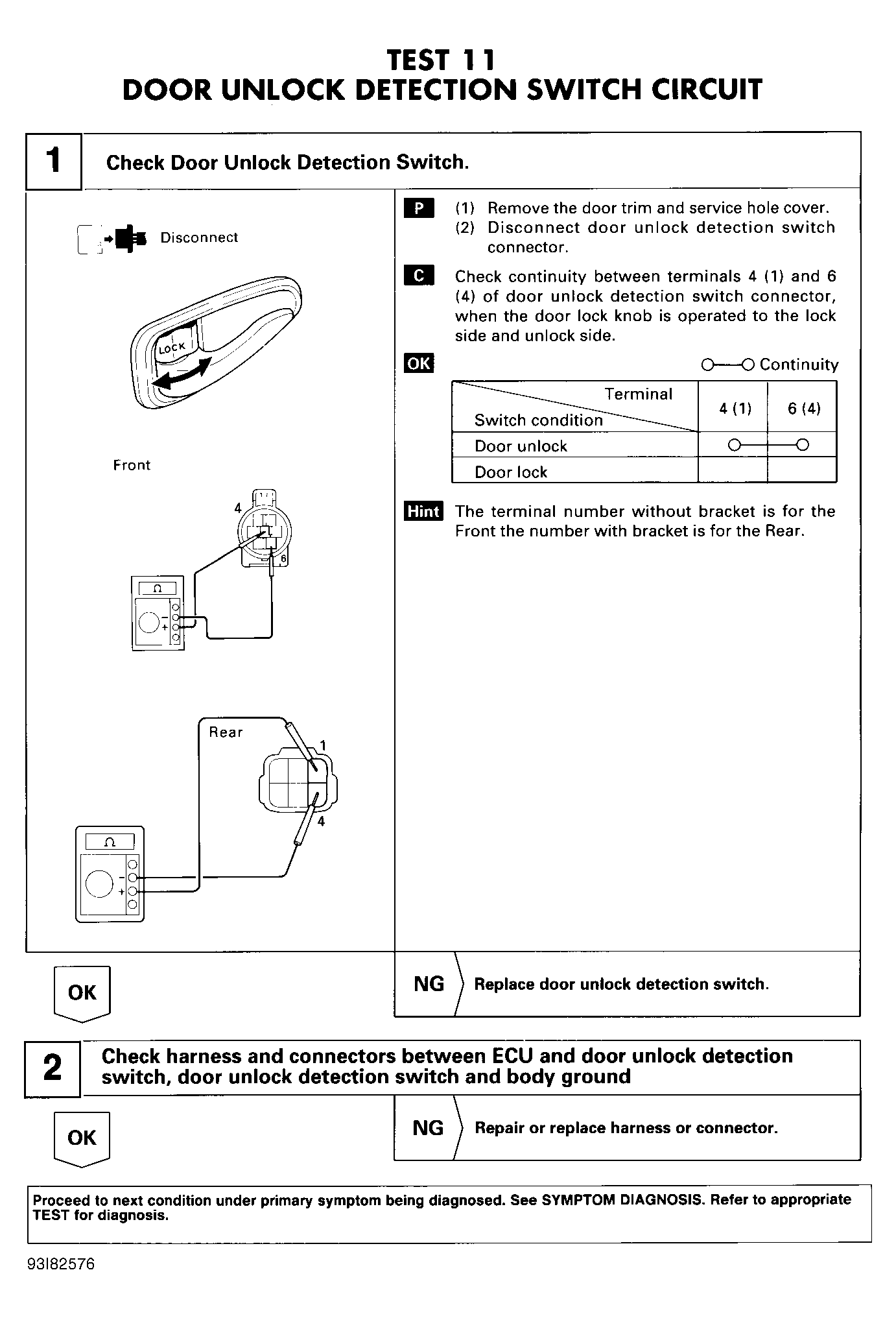

Fig 1: Test 11 - Door Unlock Detection Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
