Test 6 - Taillight Control Relay Circuit

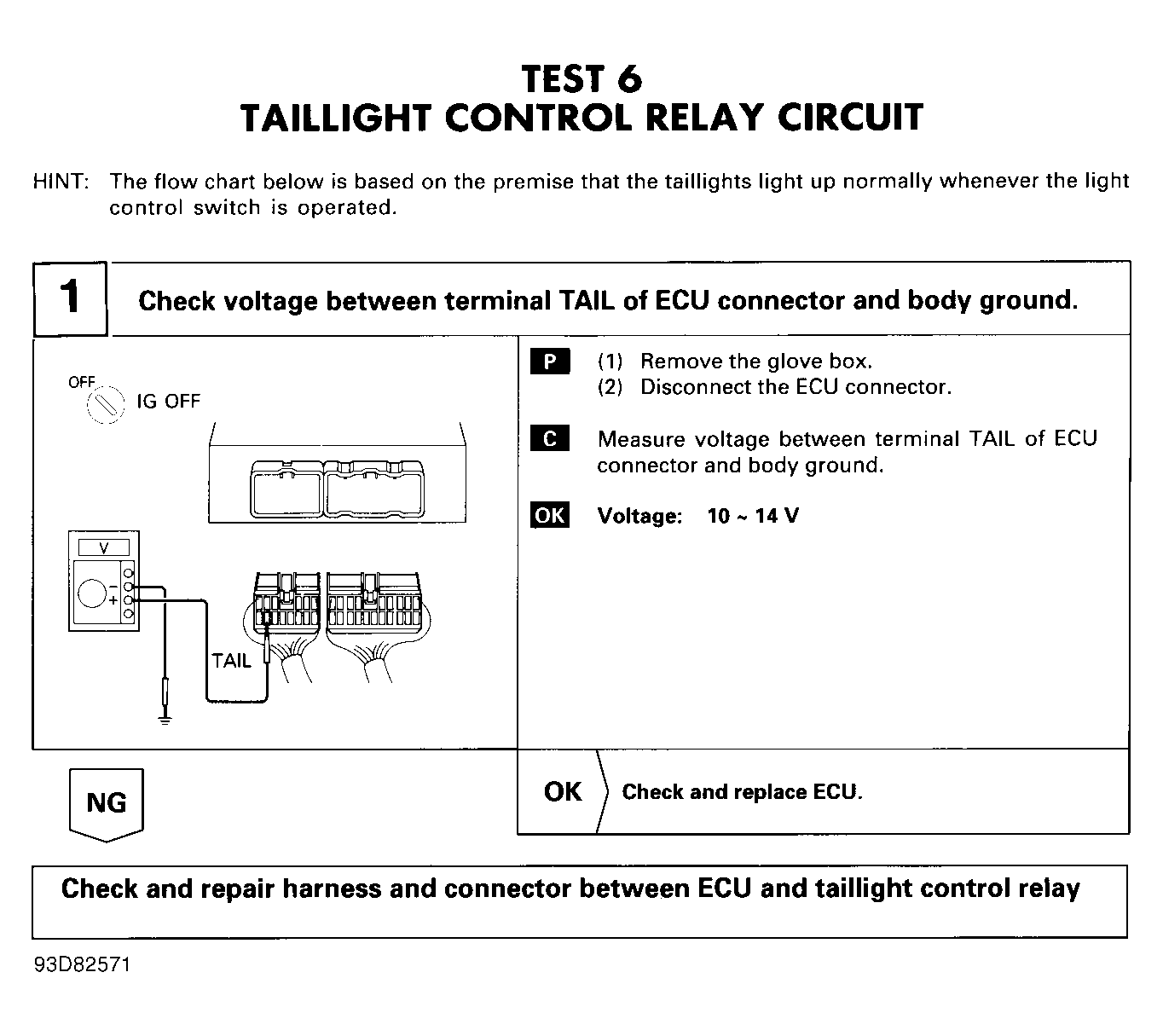

Fig 1: Test 6 - Taillight Control Relay Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
