Door Locks
›
Anti-Theft System
›
Circuit Testing
›
Test 7 - Ignition Switch Circuit
Test 7 - Ignition Switch Circuit

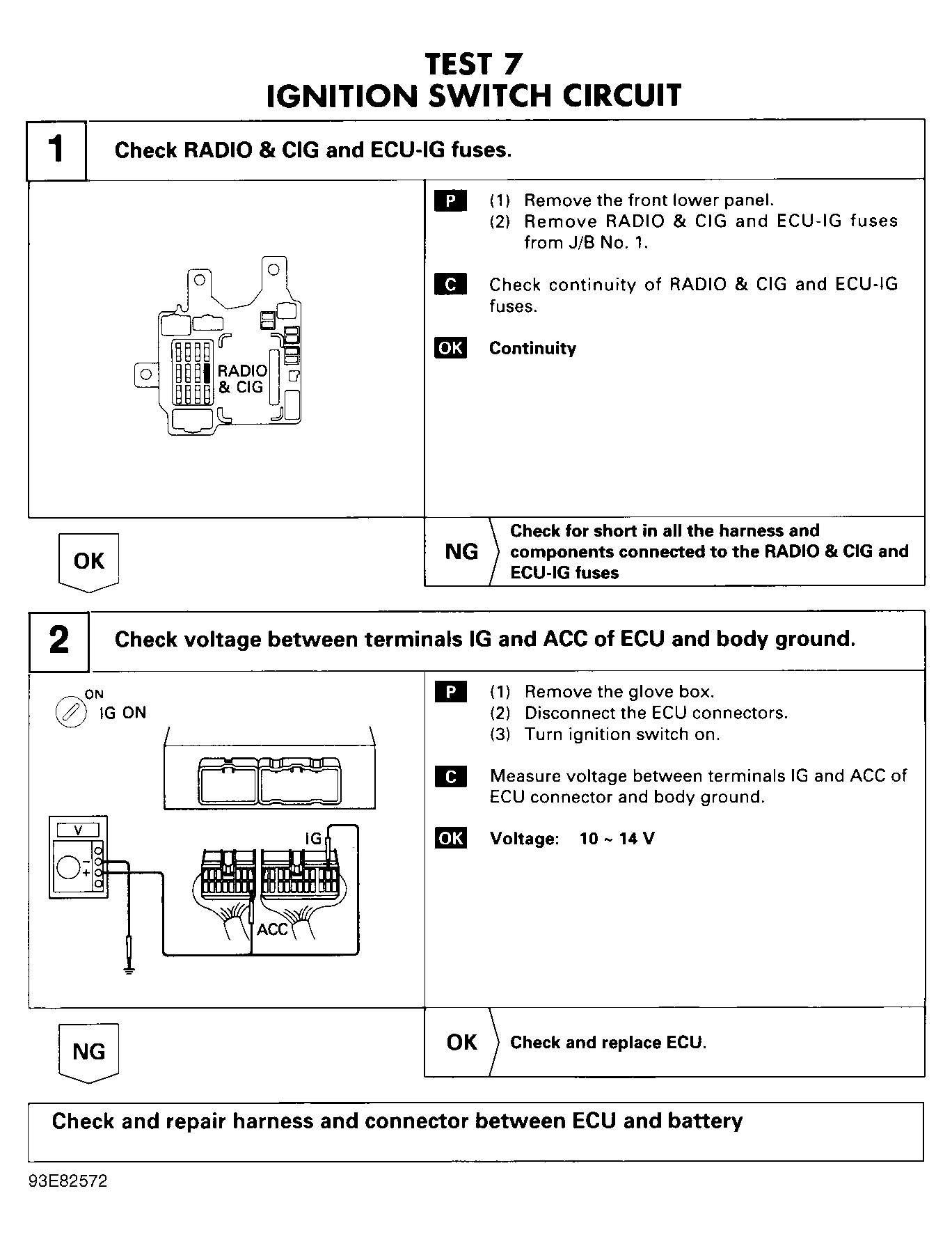

Fig 1: Test 7 - Ignition Switch Circuit
