Door Glass (Front)
- Adjust lateral position of upper part of the door glass. Loosen the 2 nuts, then adjust the stud bolts using a hexagon wrench. See Fig 1.
- Adjust the front/rear position and the horizontal inclination of the door glass. Loosen the 3 nuts, then adjust the door glass. See Fig 2.

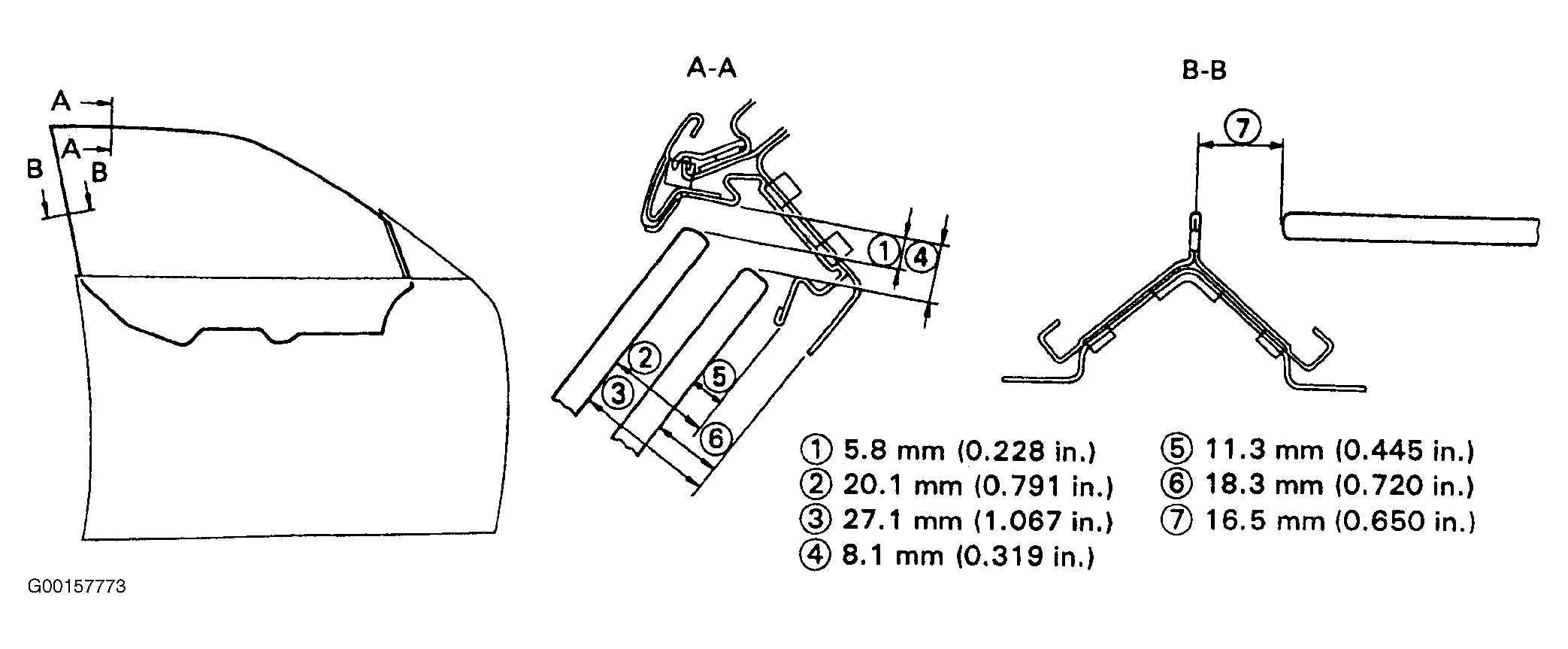

- After adjustment is done, Check to make sure when the door is closed with the door glass then fully closed or else the door glass is fully closed with the door then closed, check that cross section A-A and B-B are as specified, see Fig 3. Check that the weatherstrip is not pinched and that the door glass is not in contact with the roof drip molding. With the glass fully closed, check that the outside edge of the door glass is in contact with the weatherstrip at the front pillar and roof side that the edge of the glass cannot be seen. Make sure the door glass is not loose when it is half open. When the door glass is rising up, check that the door glass and roof side weatherstrip are parallel and that the door glass contacts the 2 upper plates. Check that the door glass moves up and down smoothly over all areas.
