Component Location

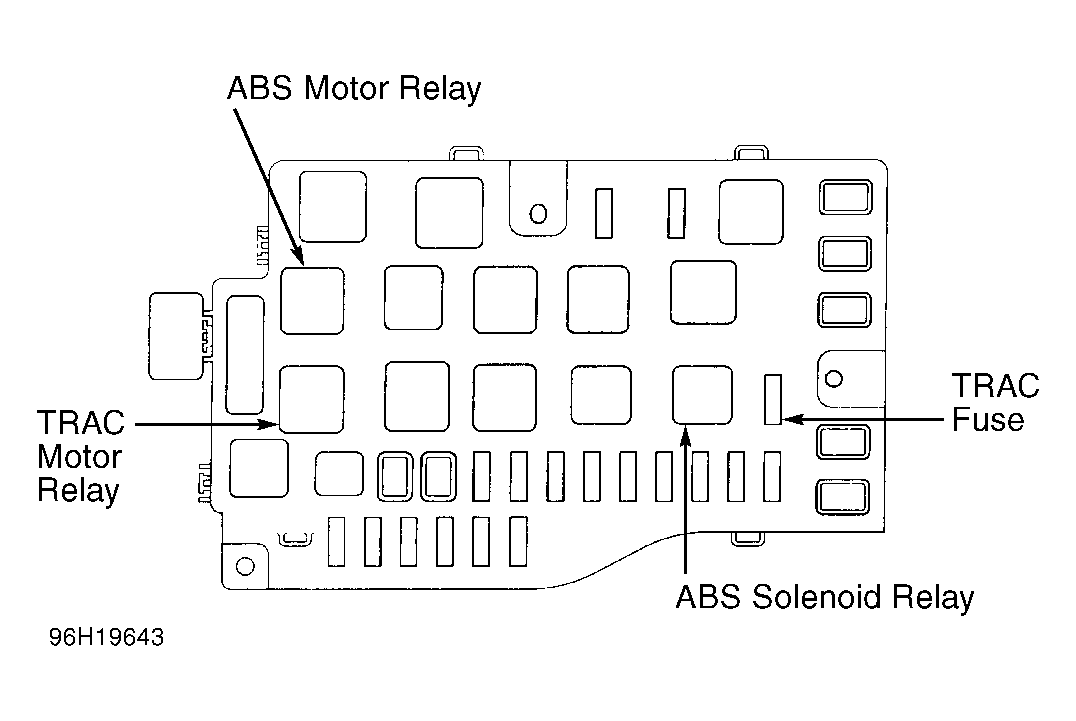

Fig 1: Identifying Engine Compartment Relay Block ABS Relays
G96H19643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Locating ABS & TRAC Electronic Control Units
G96I19644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
