Fuel Level Warning
Fuel Level Warning

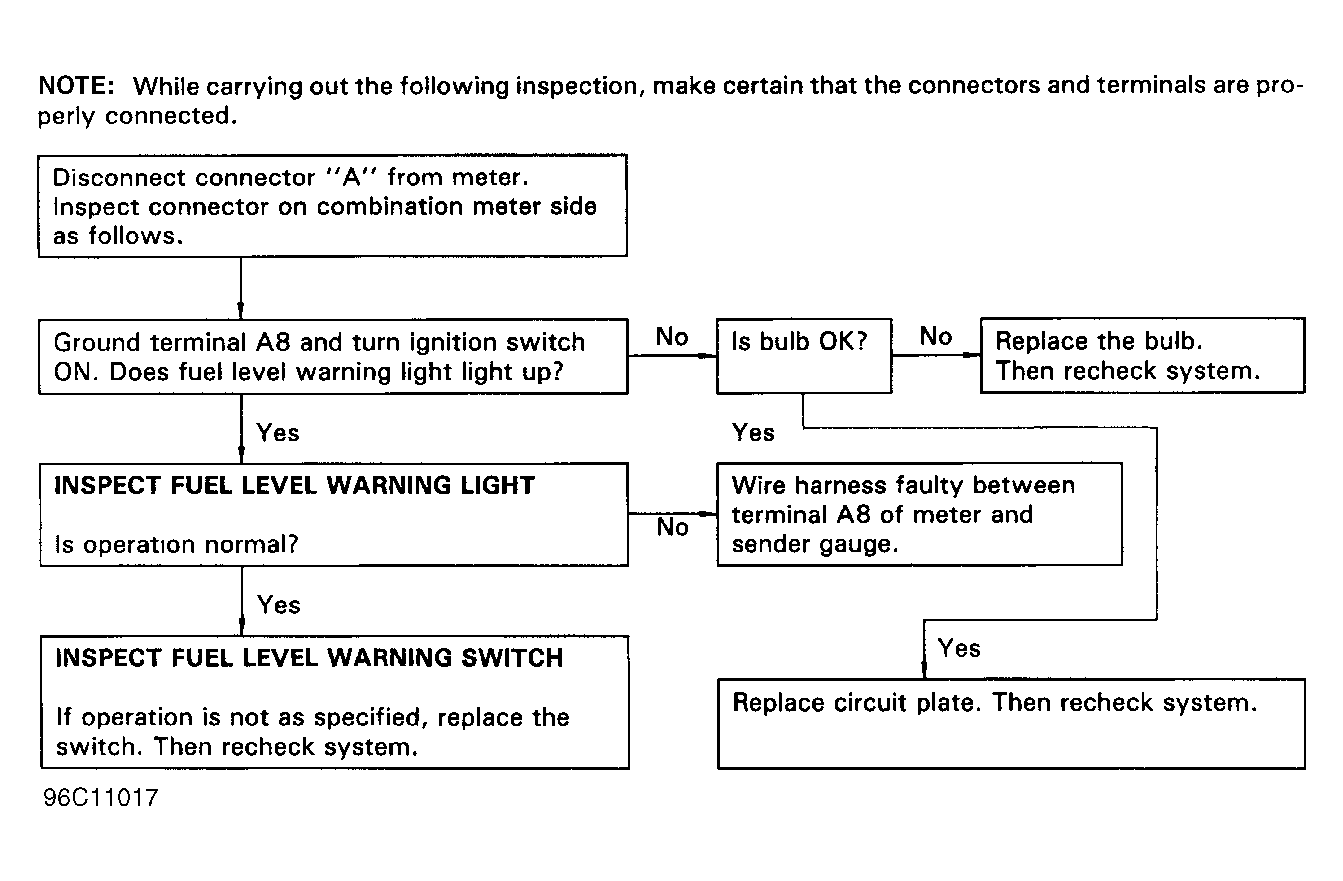

Fig 1: Warning Does Not Illuminate Or Always Illuminated
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
