Description & Operation: Notes

If one of the following conditions occurs when theft deterrent system is set (armed), system disables starter, locks all doors, flashes headlights and taillights, and sounds alarm. See Fig 1 and Fig 2 .

Door, luggage compartment lid or hood is forcibly opened.
Battery cable is disconnected then reconnected.

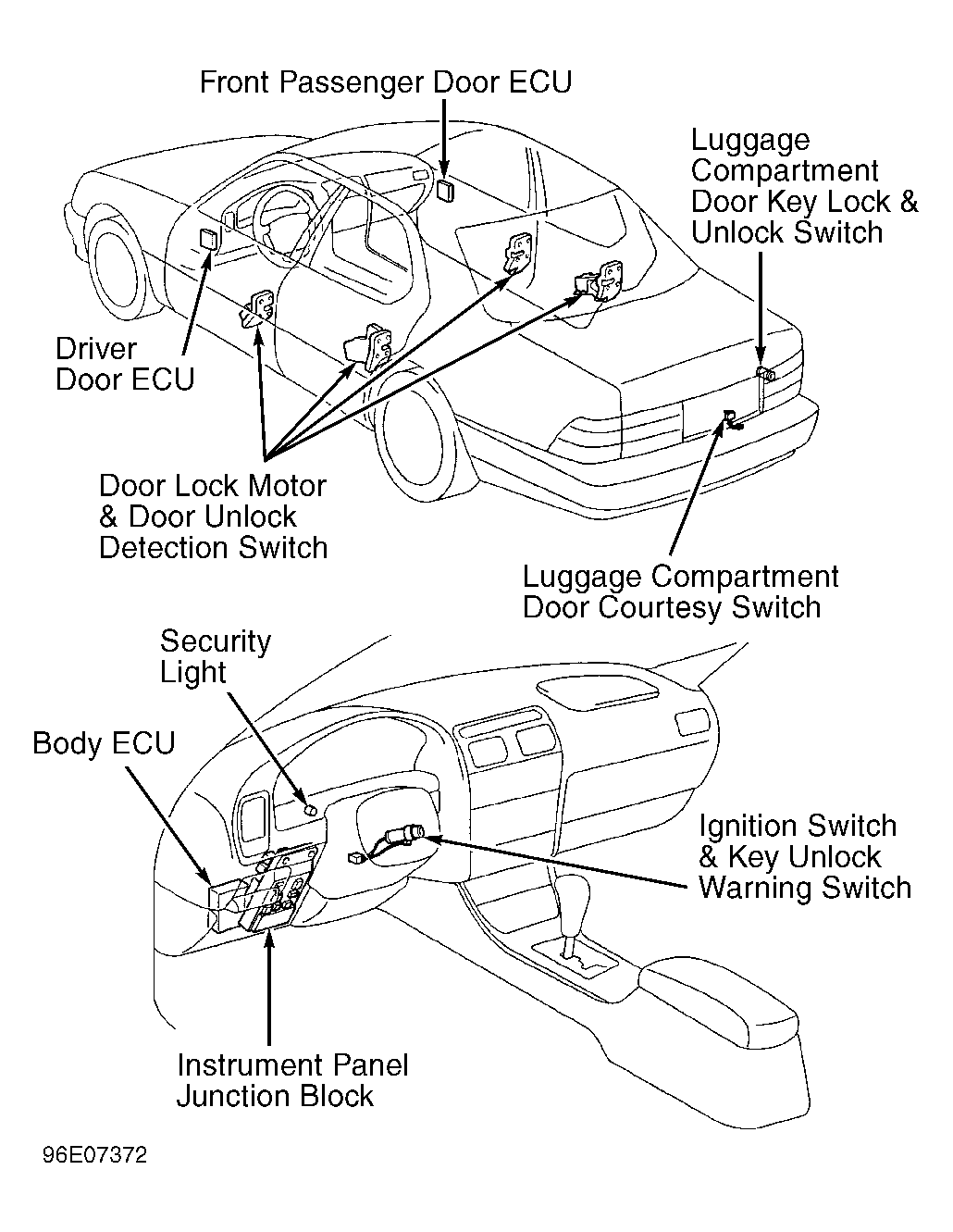

Fig 1: Theft Deterrent System Component Locations (1 Of 2)

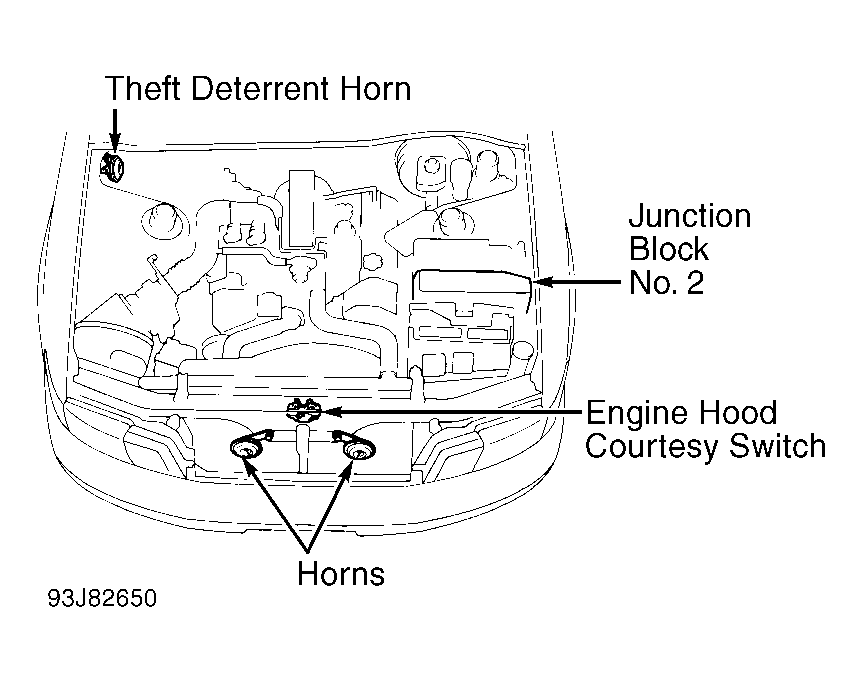

Fig 2: Theft Deterrent System Component Locations (2 Of 2)
