Code 12 - Rpm Signal Circuit

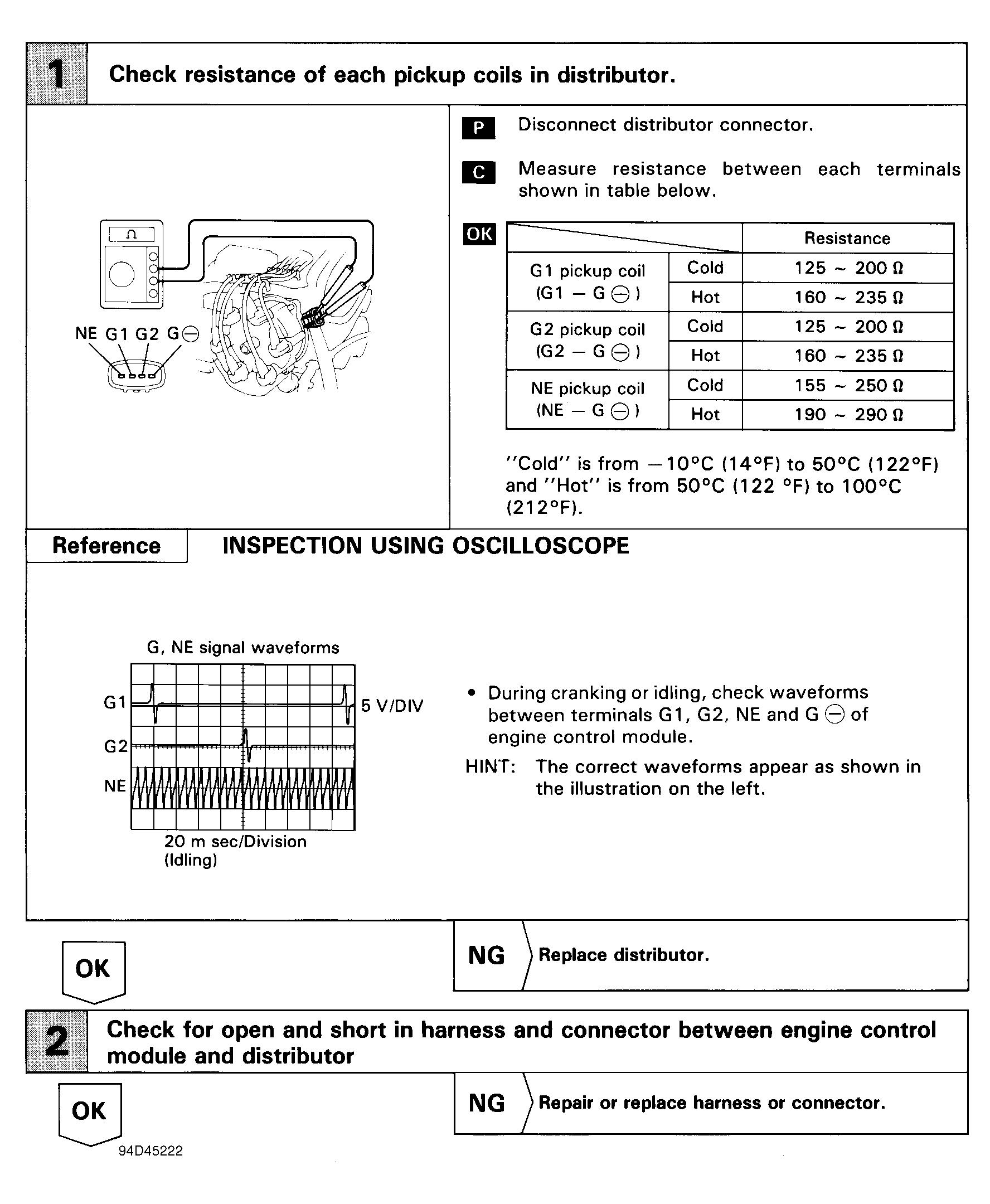

Fig 1: Code 12 Flow Chart (1 Of 2) RPM Signal Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

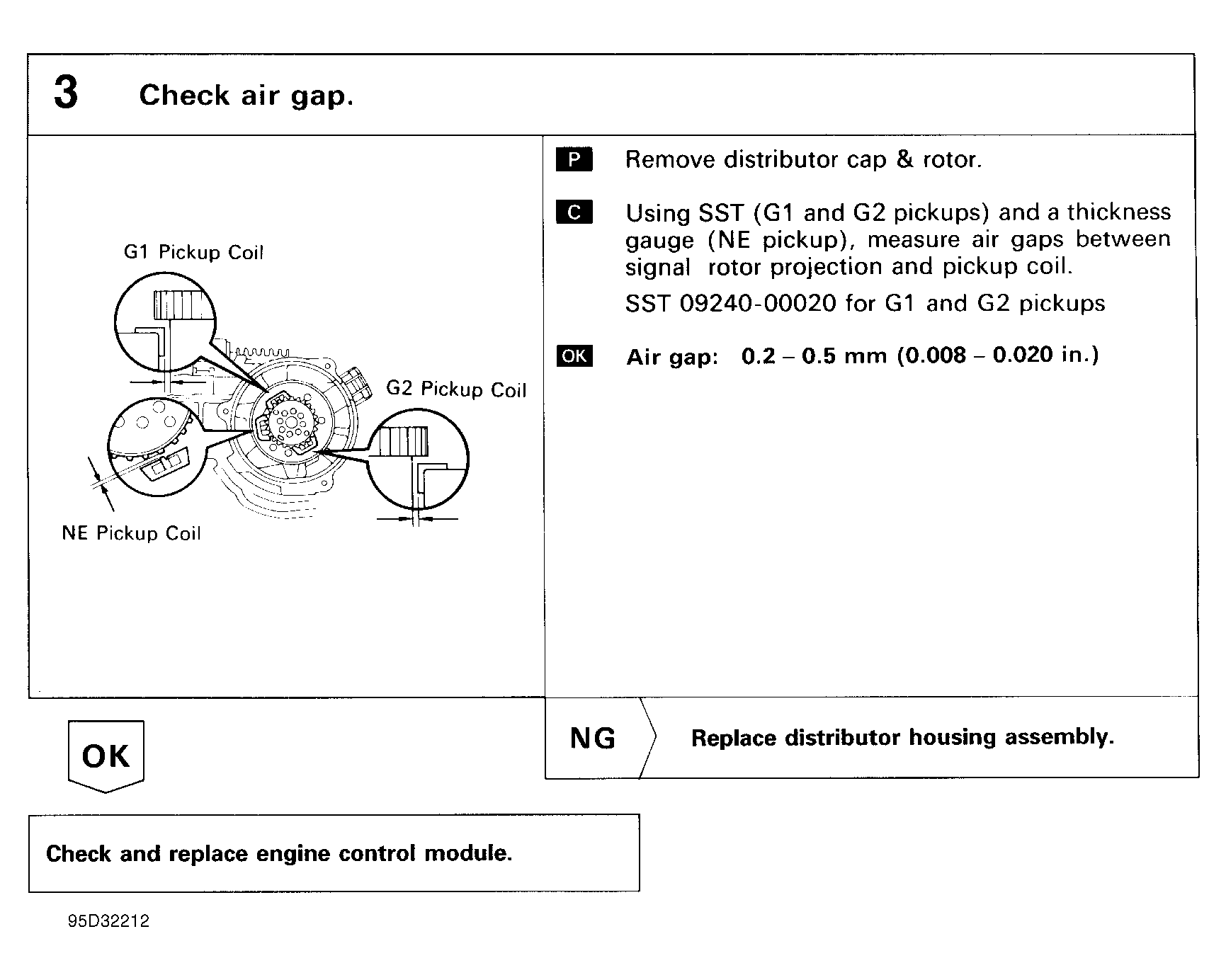

Fig 2: Code 12 Flow Chart (2 Of 2) RPM Signal Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
