Code 13 - Rpm Signal Circuit
Code 13 - Rpm Signal Circuit

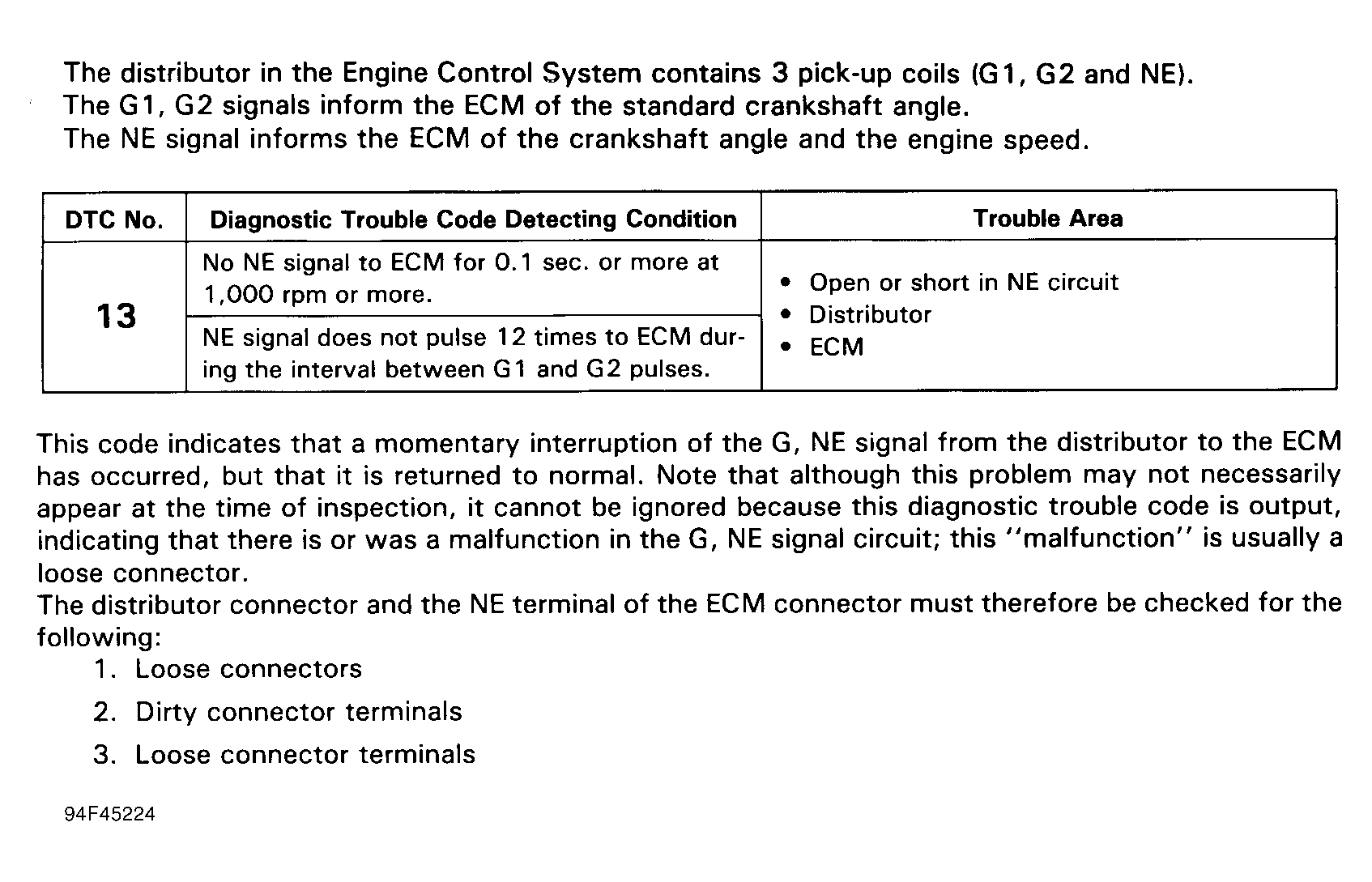

Fig 1: Code 13 RPM Signal Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
