Code 35 - Barometric Pressure Sensor Circuit
Code 35 - Barometric Pressure Sensor Circuit

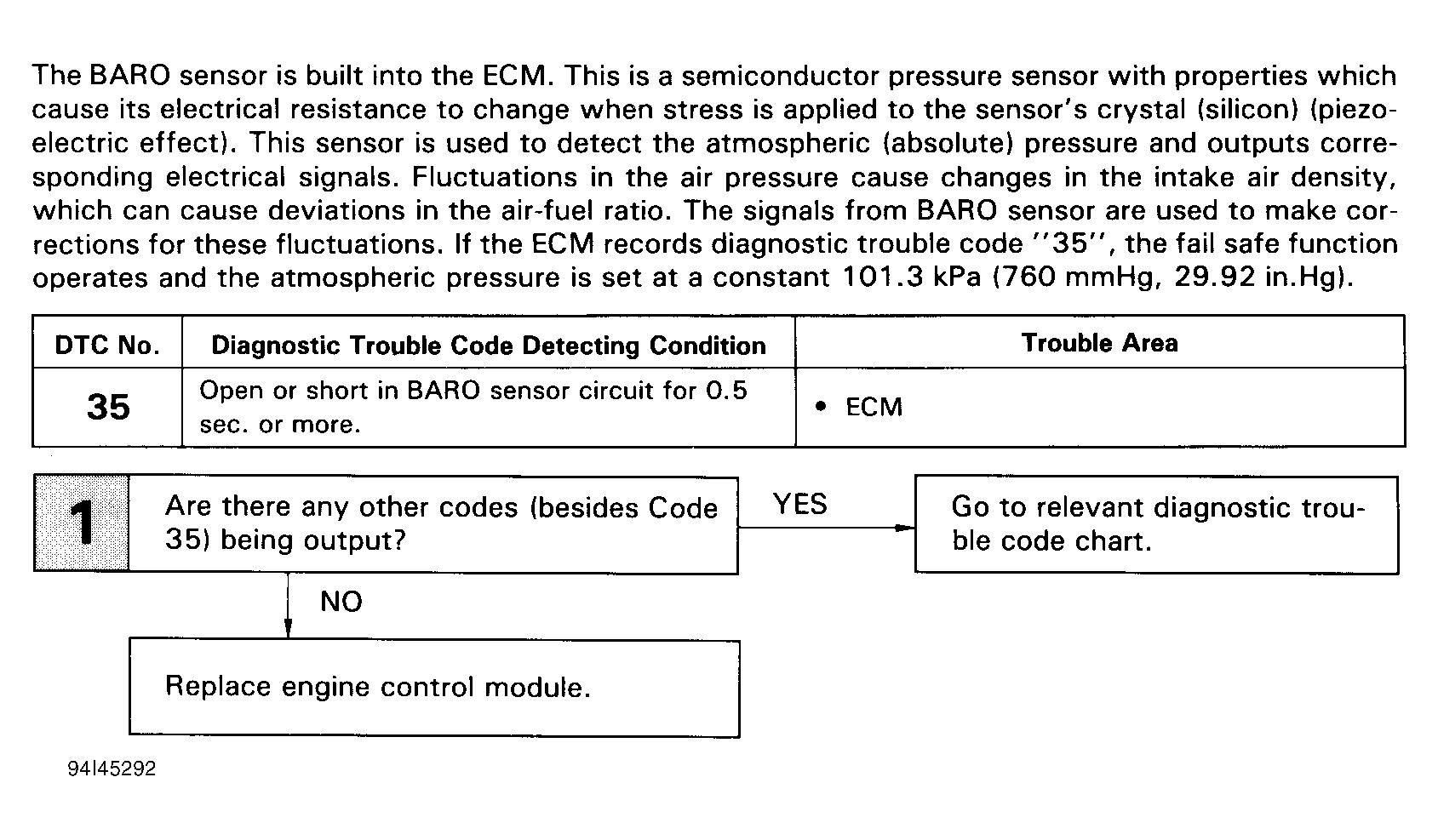

Fig 1: Code 35 Flow Chart Barometric Pressure Sensor Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
