Code 71 - EGR System Malfunction

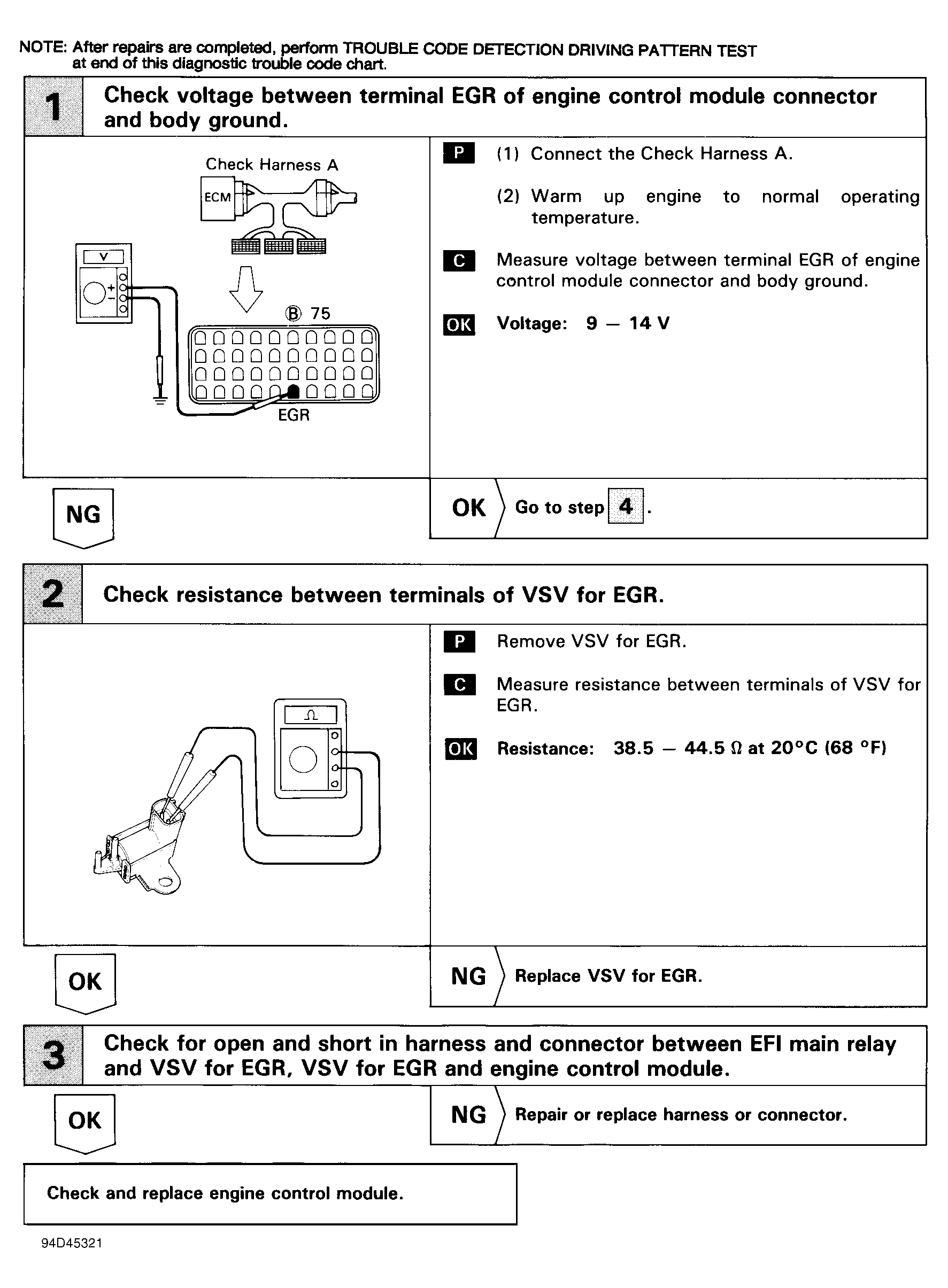

Fig 1: Code 71 Flow Chart (1 Of 2) EGR System Malfunction
G94D45321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

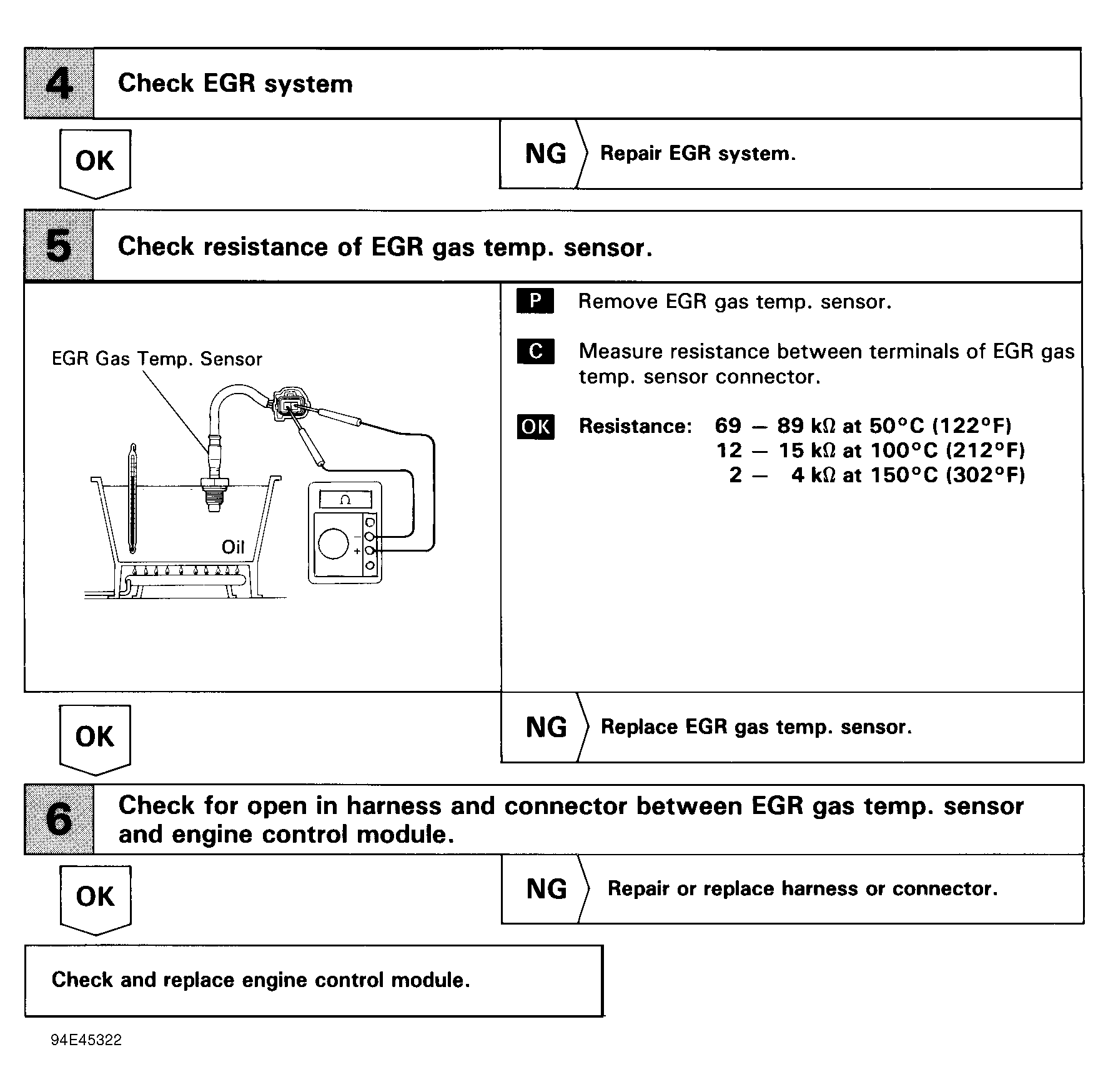

Fig 2: Code 71 Flow Chart (1 Of 2) EGR System Malfunction
G94E45322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

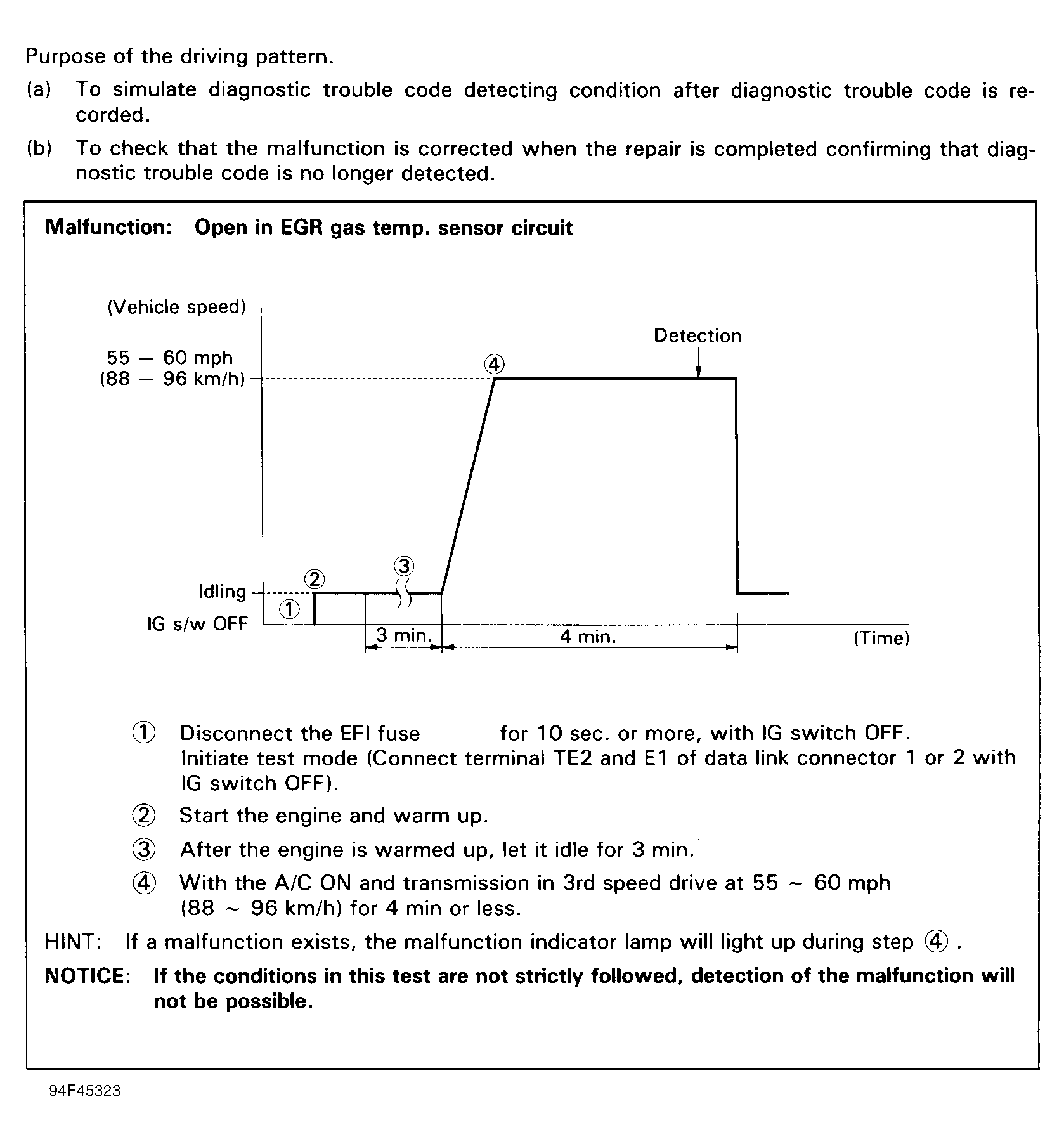

Fig 3: Code 71 Diagnostic Trouble Code Detection Test EGR System Malfunction
G94F45323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
