Test 11 - Engine Hood Courtesy Switch Circuit
Test 11 - Engine Hood Courtesy Switch Circuit

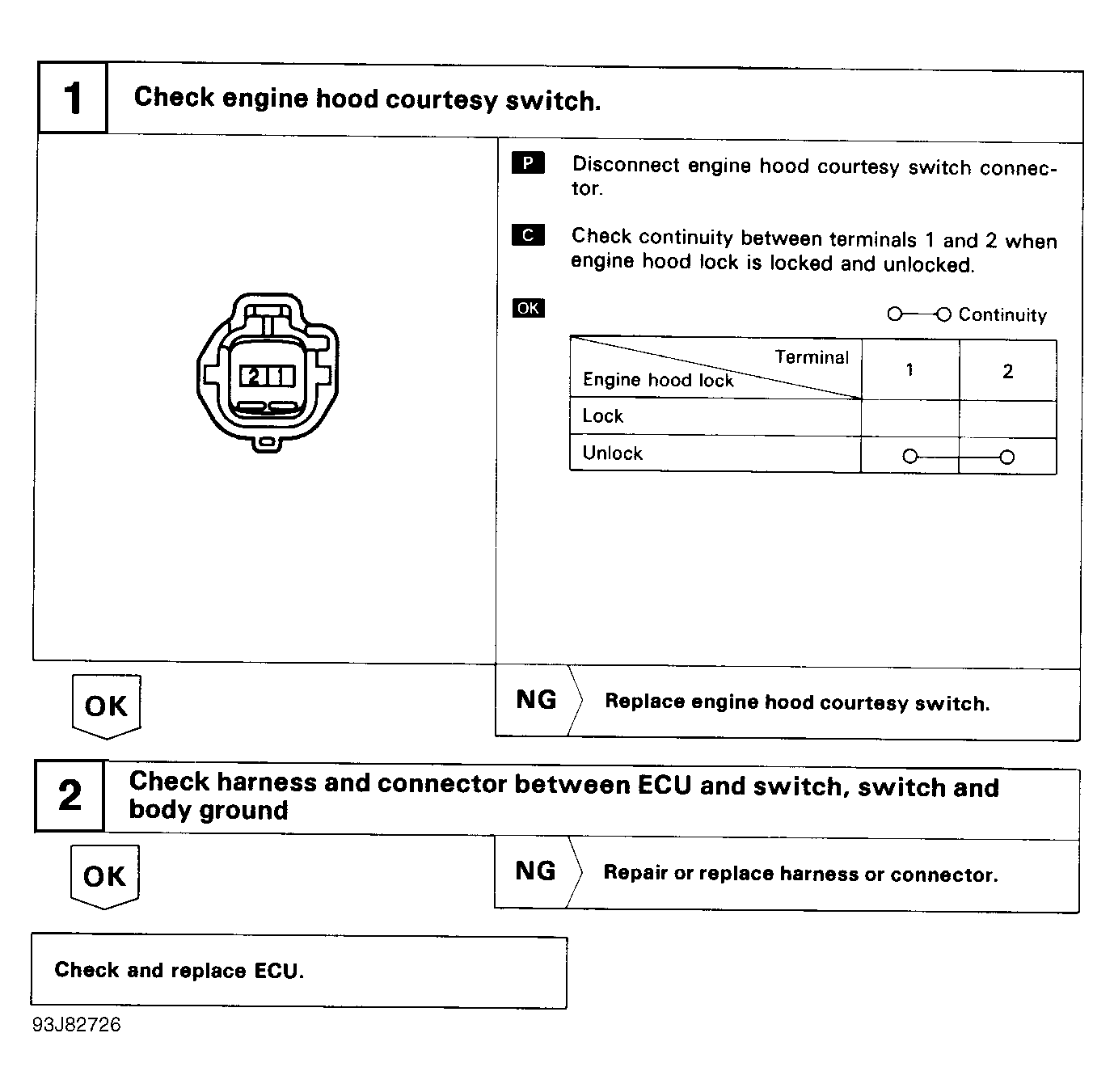

Fig 1: TEST 11 - Engine Hood Courtesy Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
