Code 12 - Rpm Signal Circuit (No. 1)
Code 12 - Rpm Signal Circuit (No. 1)

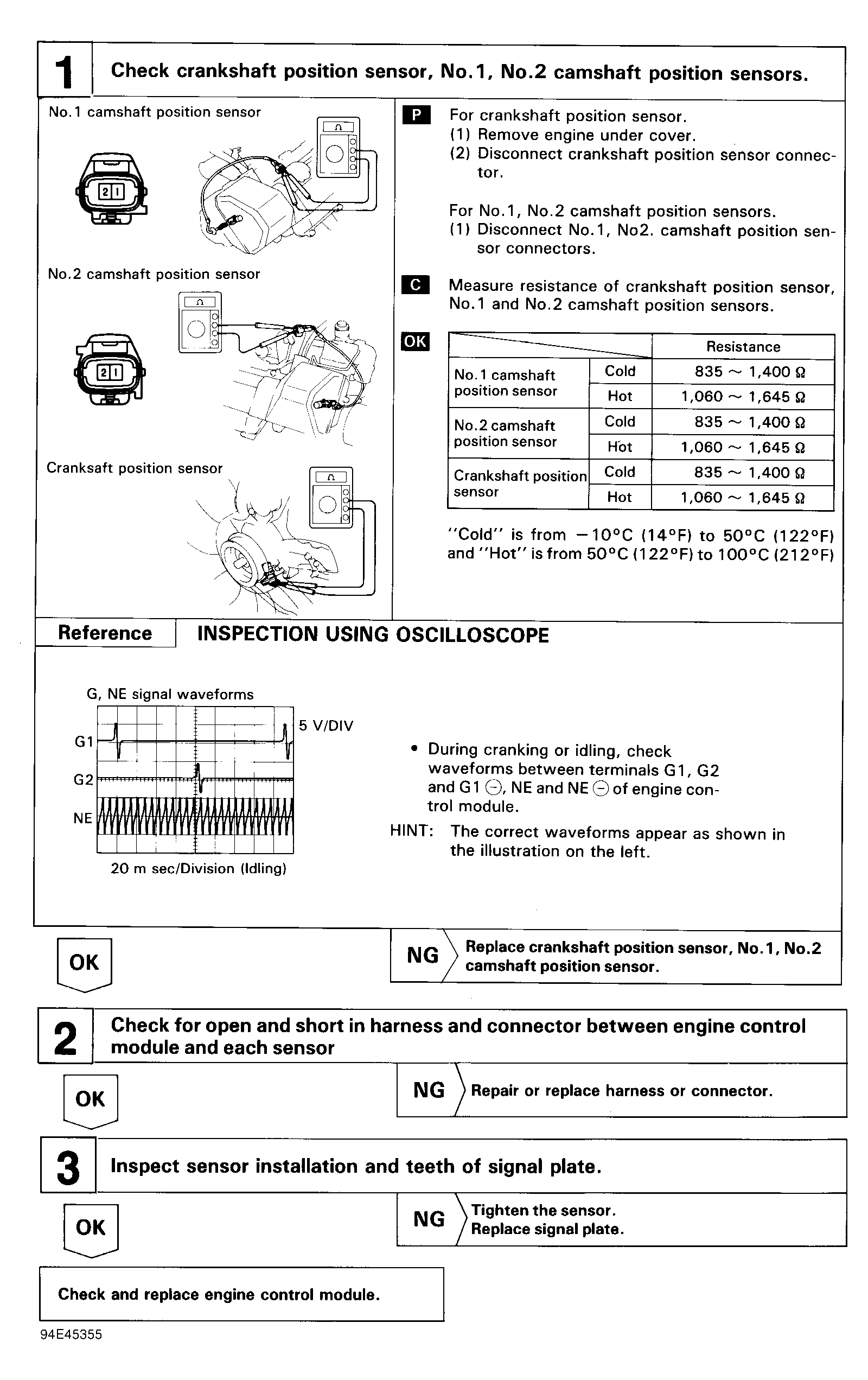

Fig 1: Code 12 Flow Chart RPM Signal Circuit (No. 1)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
