Code 22 - Engine Coolant Temperature Sensor Circuit
Code 22 - Engine Coolant Temperature Sensor Circuit

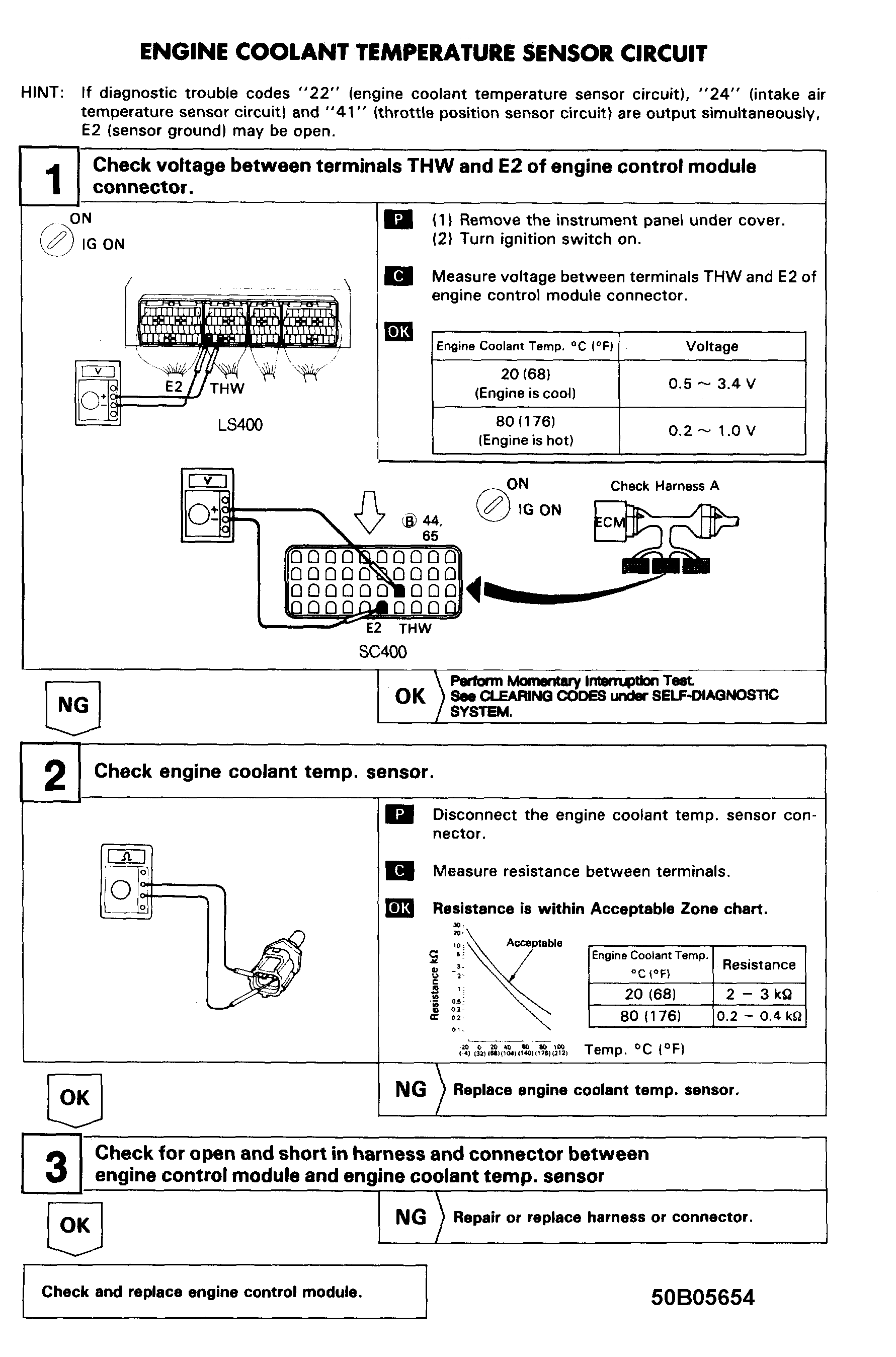

Fig 1: Code 22 Flow Chart Engine Coolant Temperature Sensor Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
