Code 24 - Intake Air Temperature Sensor Circuit
Code 24 - Intake Air Temperature Sensor Circuit

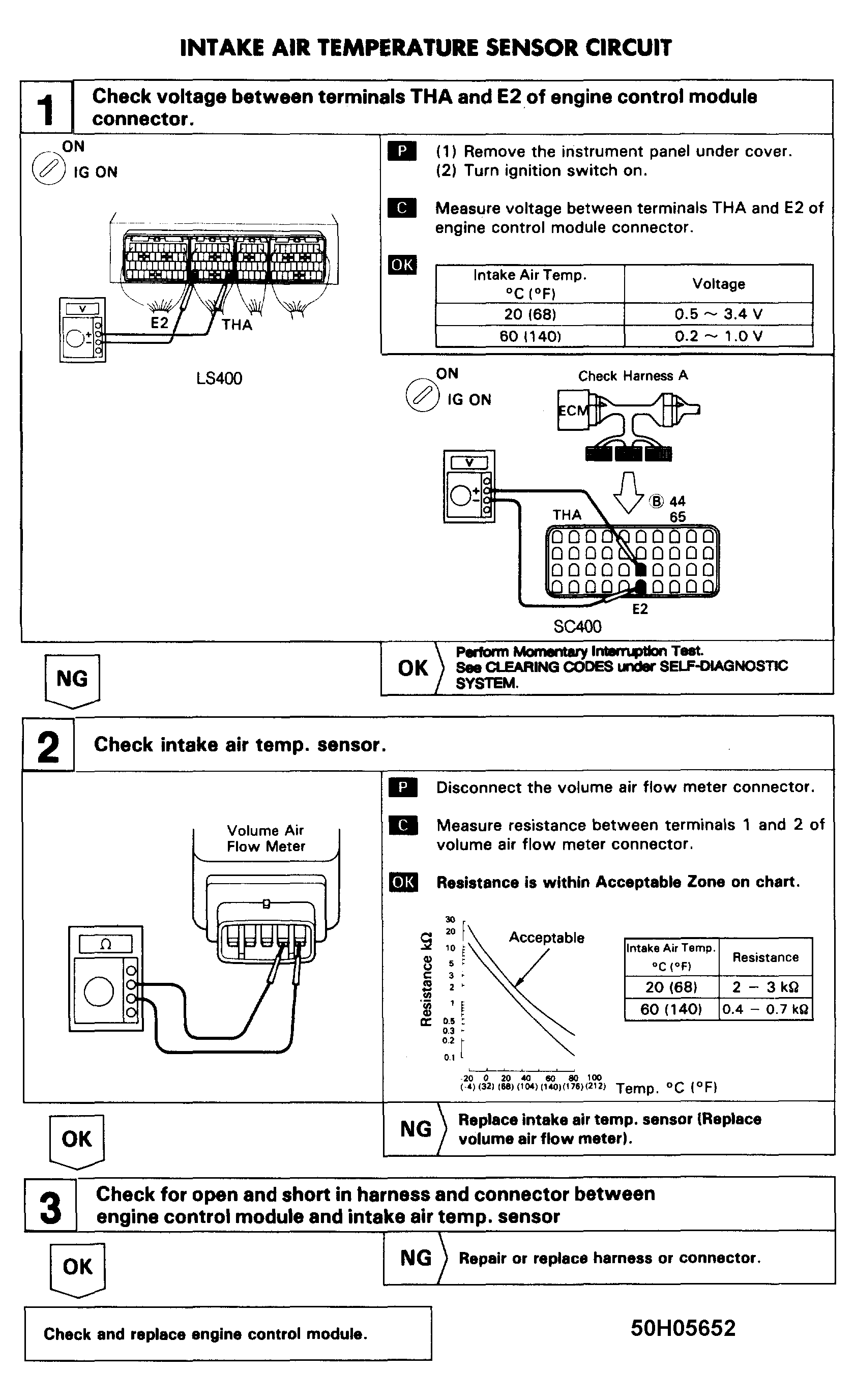

Fig 1: Code 24 Flow Chart Intake Air Temperature Sensor Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
