Code 71 - EGR System Malfunction

NOTE: After repairs are completed, perform TROUBLE CODE DETECTION DRIVING PATTERN TEST at end of testing for this trouble code.

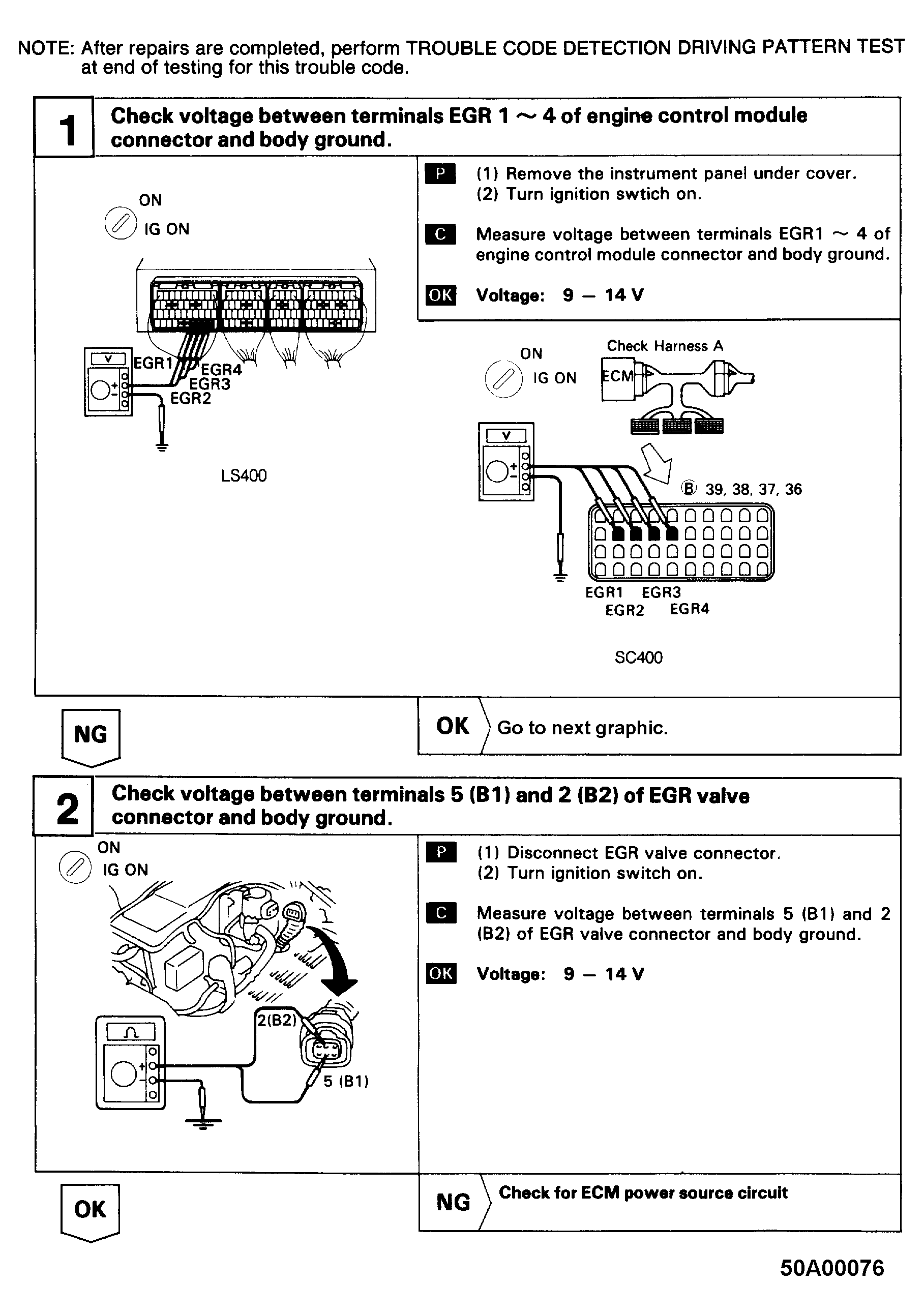

Fig 1: Code 71 Flow Chart (1 Of 4) EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

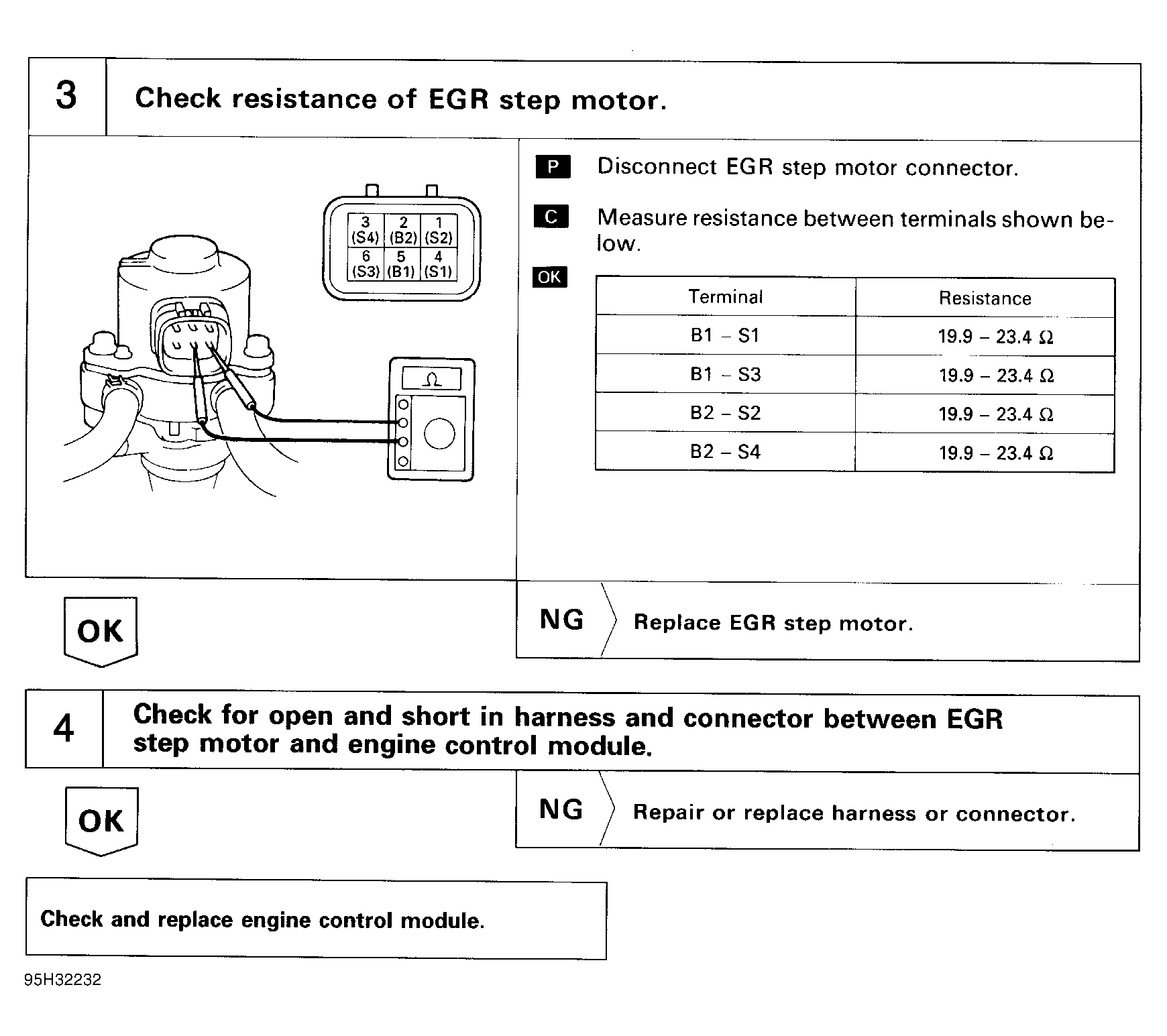

Fig 2: Code 71 Flow Chart (2 Of 4) EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

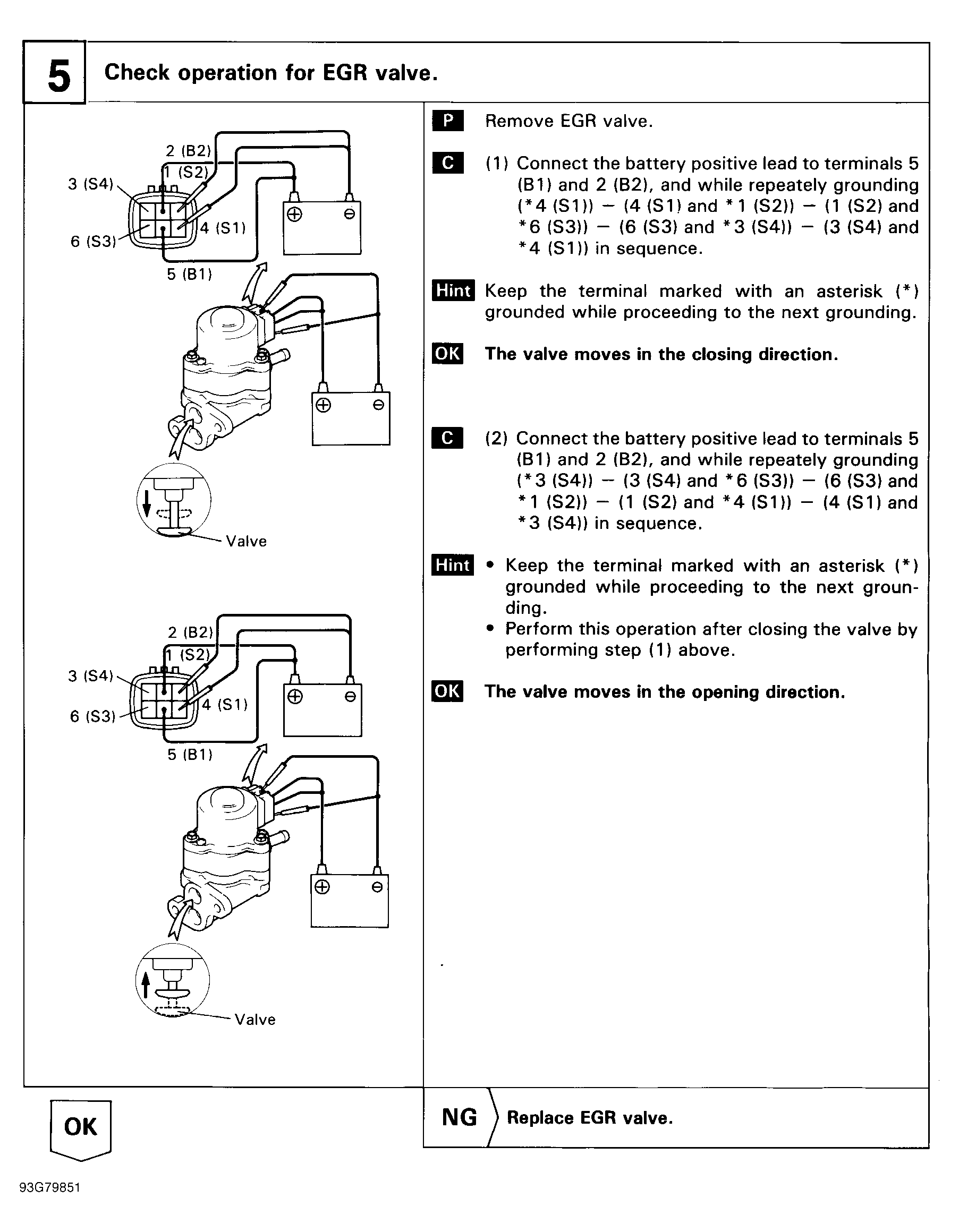

Fig 3: Code 71 Flow Chart (3 Of 4) EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

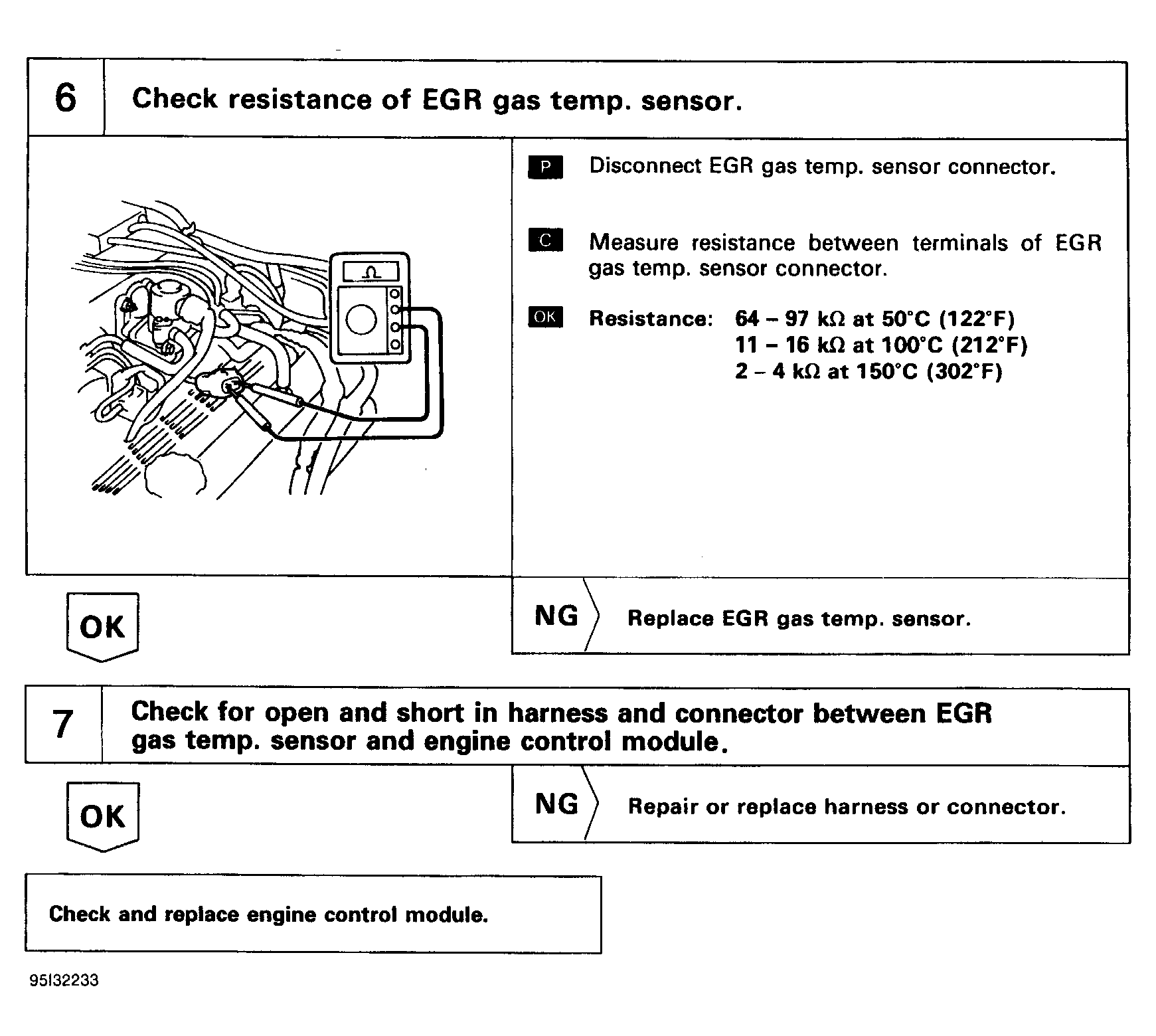

Fig 4: Code 71 Flow Chart (4 Of 4) EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

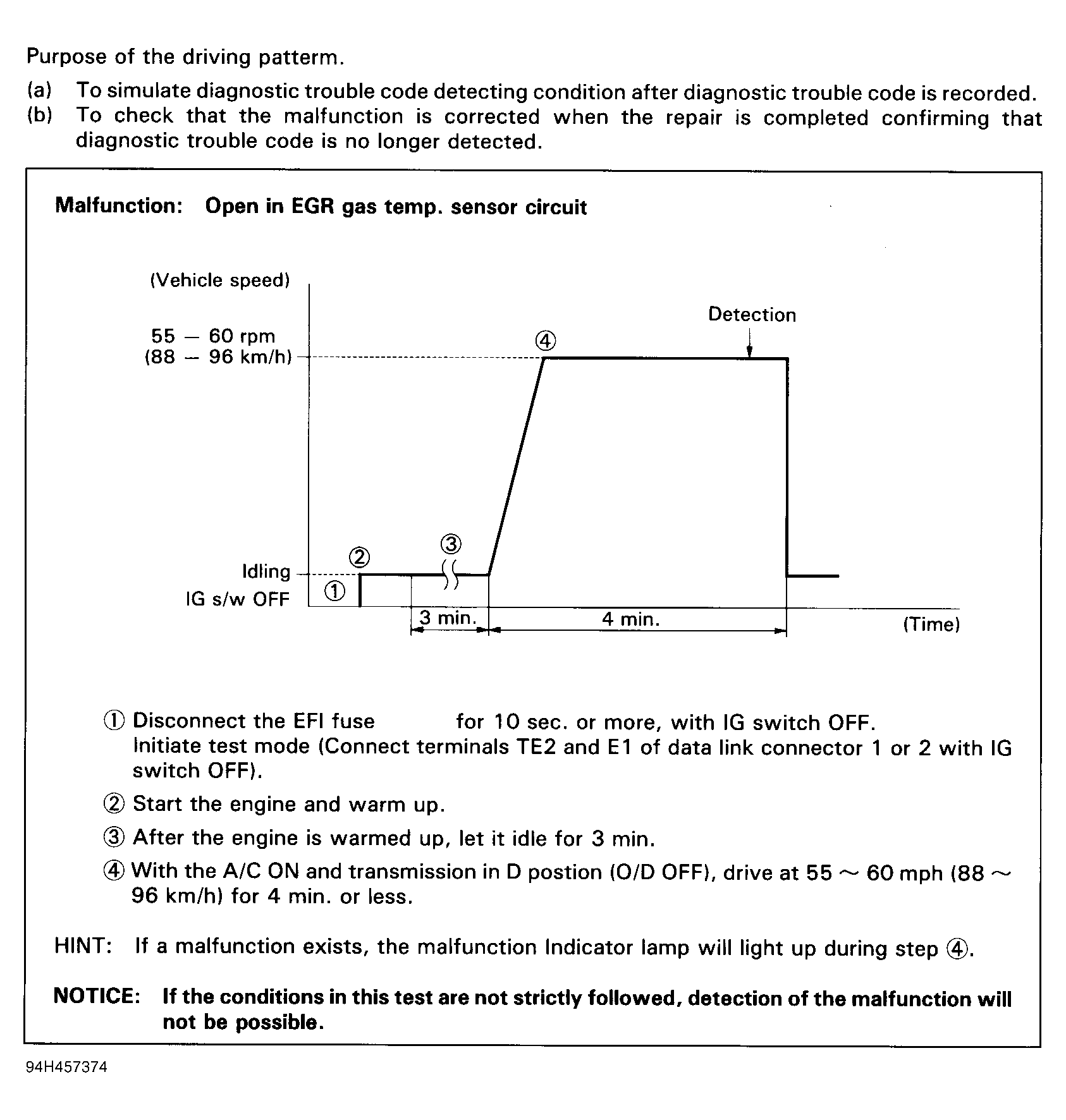

Fig 5: Code 71 Diag. Trouble Code Detection Driving Test EGR System Malfunction

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
