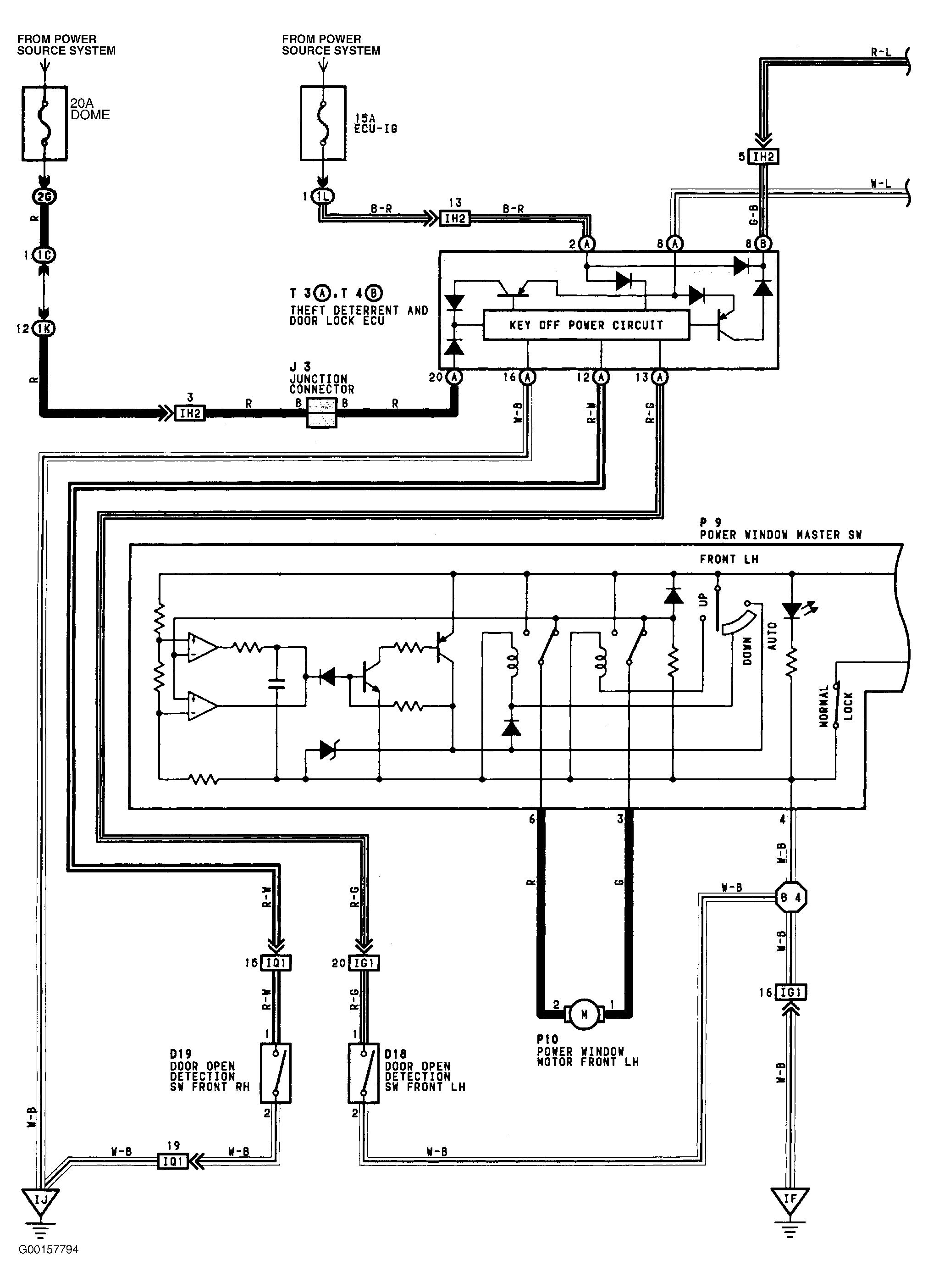

Fig 1: Power Window Wiring Diagram (1995 - 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

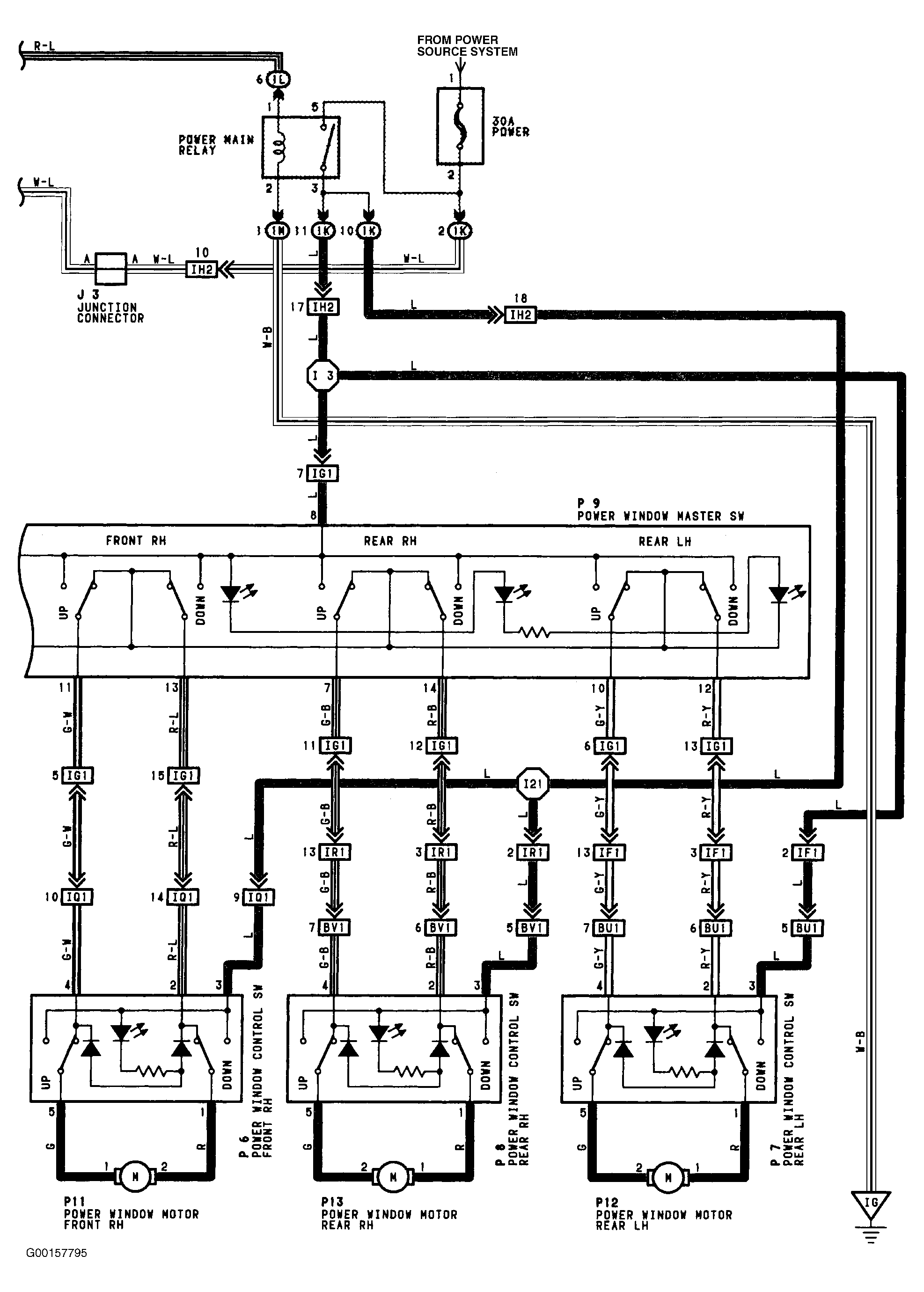

Fig 2: Power Window Wiring Diagram (1995 - 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

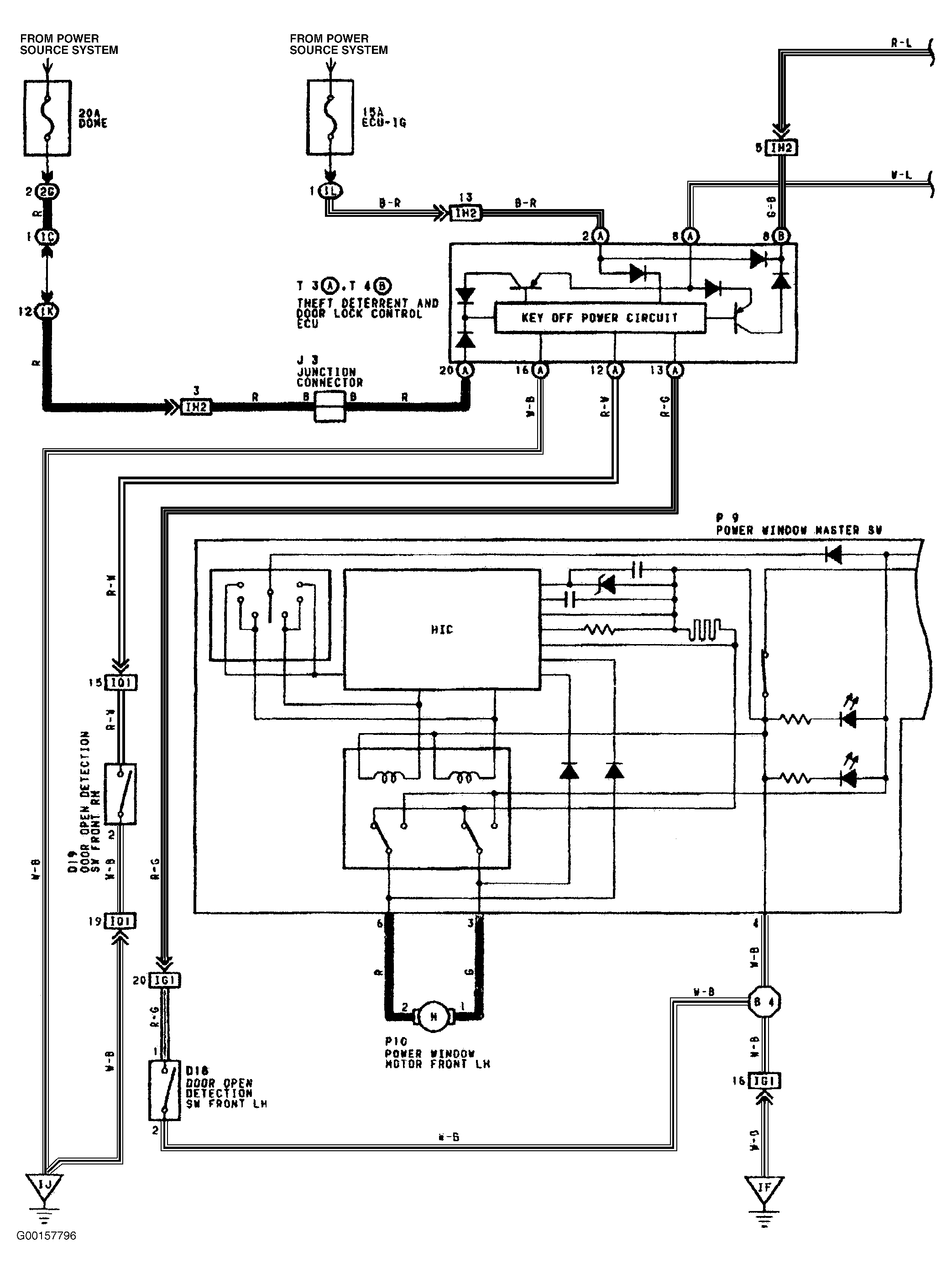

Fig 3: Power Window Wiring Diagram (1996 - 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

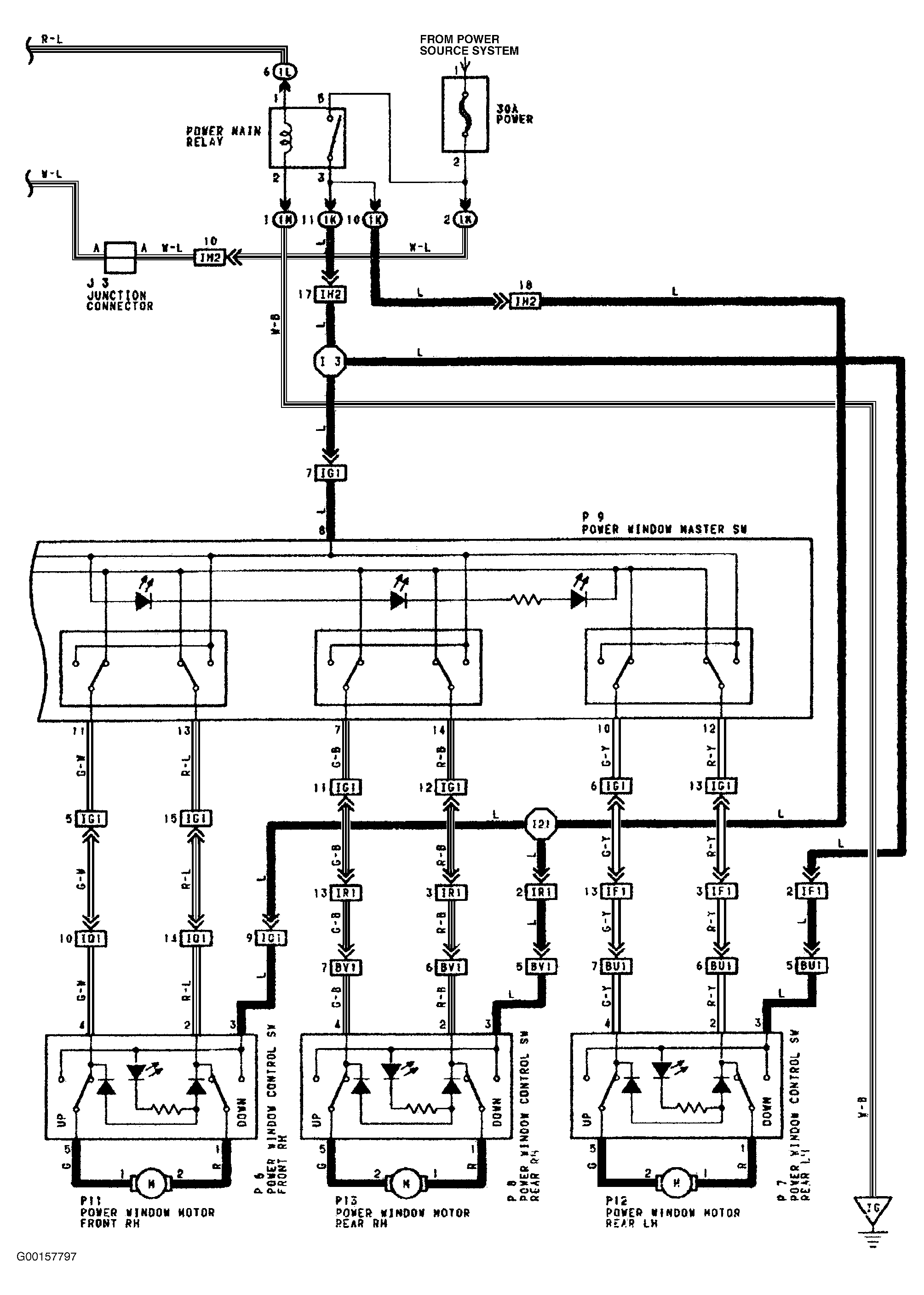

Fig 4: Power Window Wiring Diagram (1996 - 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
