Test 1 - Indicator Light Circuit
Test 1 - Indicator Light Circuit

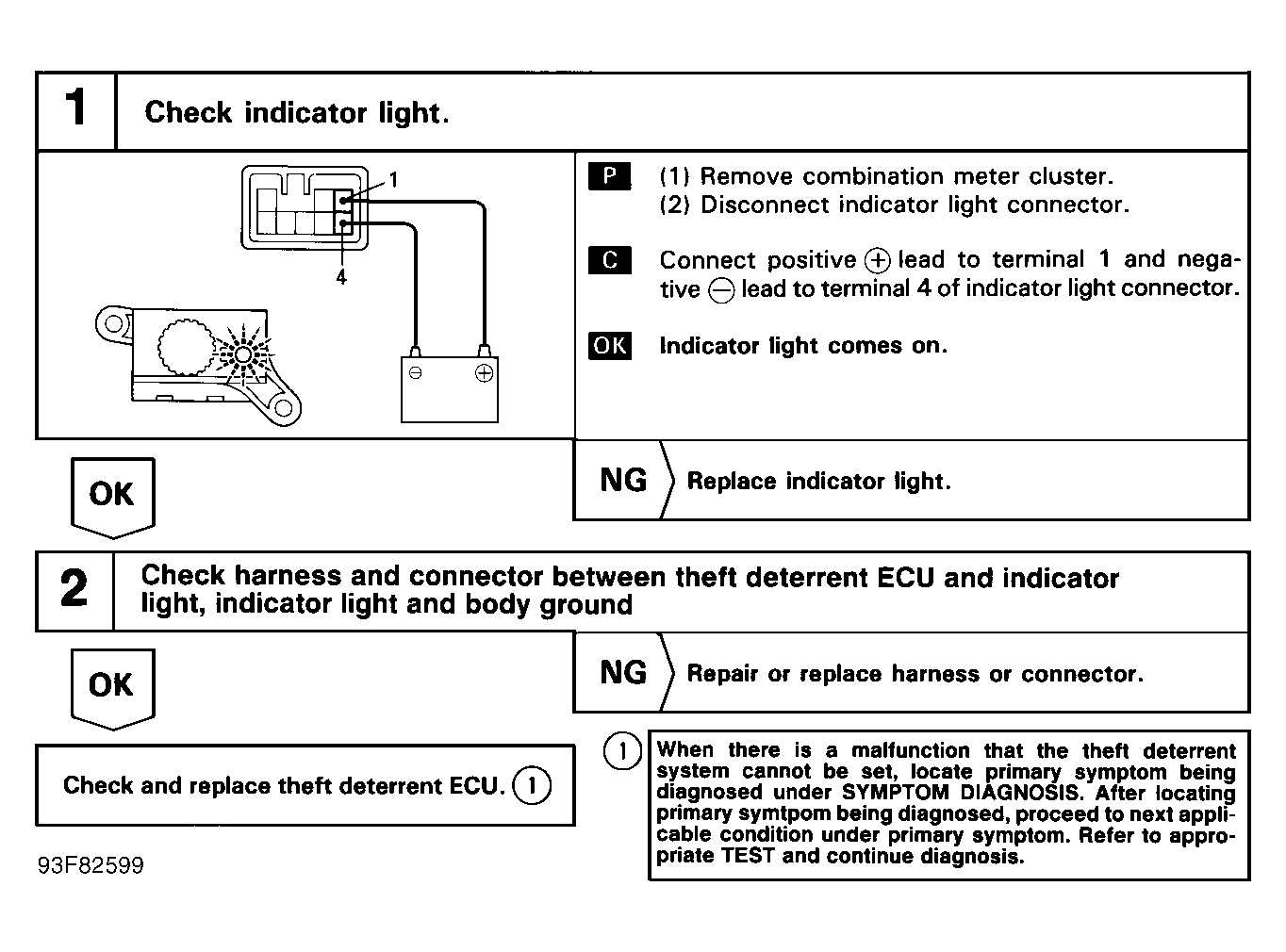

Fig 1: Test 1 - Indicator Light Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
