Service Point Locations
Service Point Locations

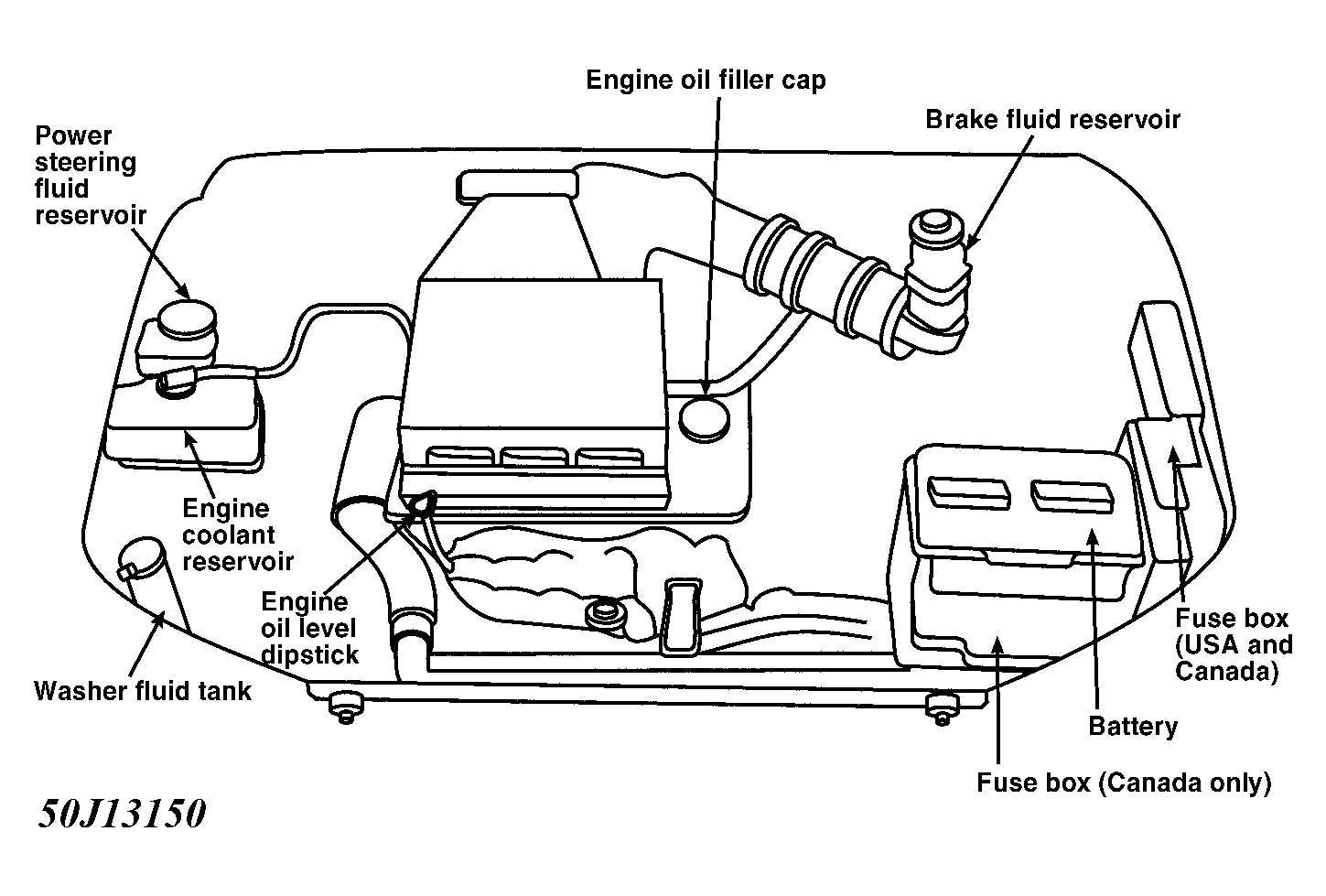

Fig 1: Service Point Locations - Lexus
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

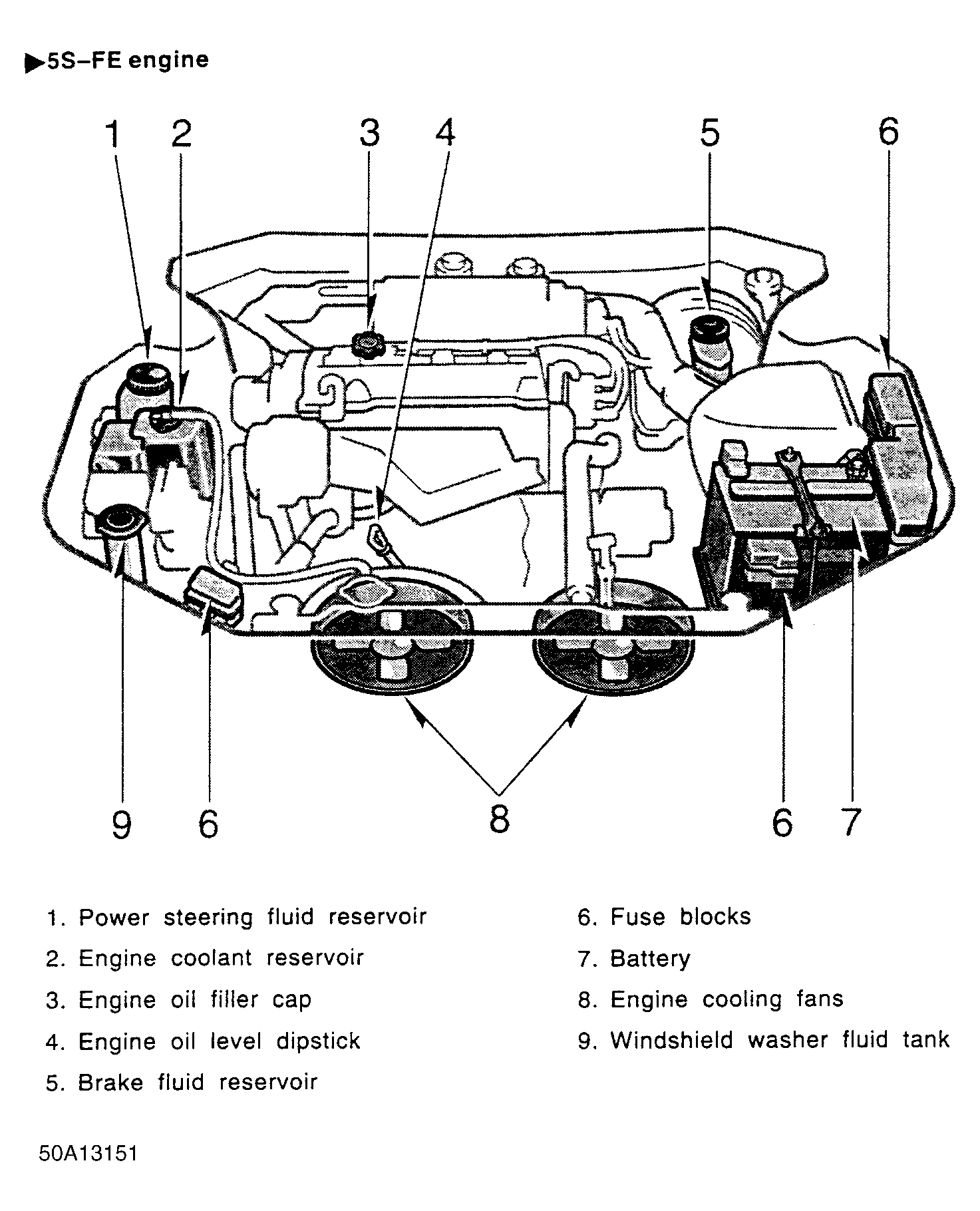

Fig 2: Service Point Locations - 5S-FE Engine - Toyota
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

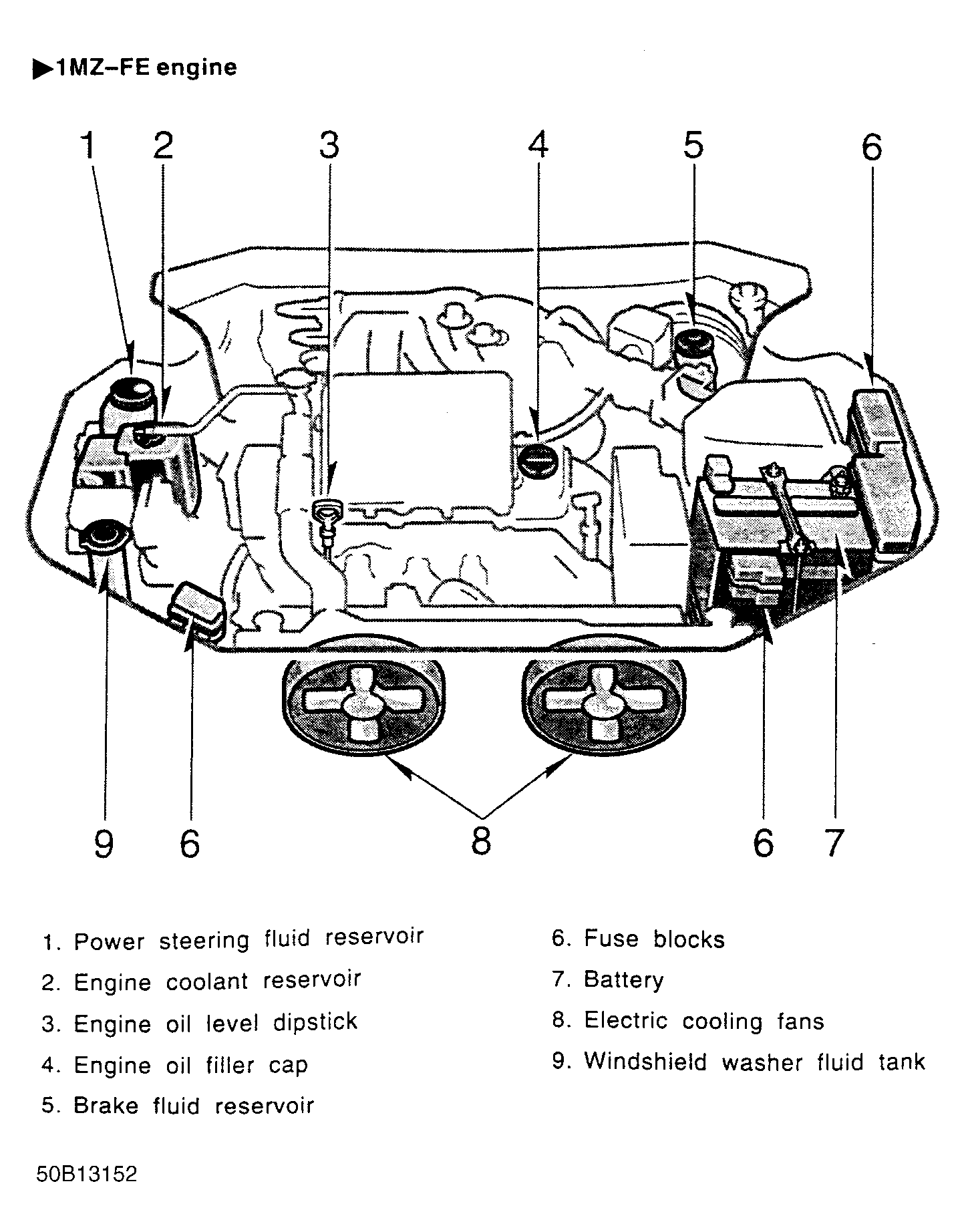

Fig 3: Service Point Locations - 1MZ-FE Engine - Toyota
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

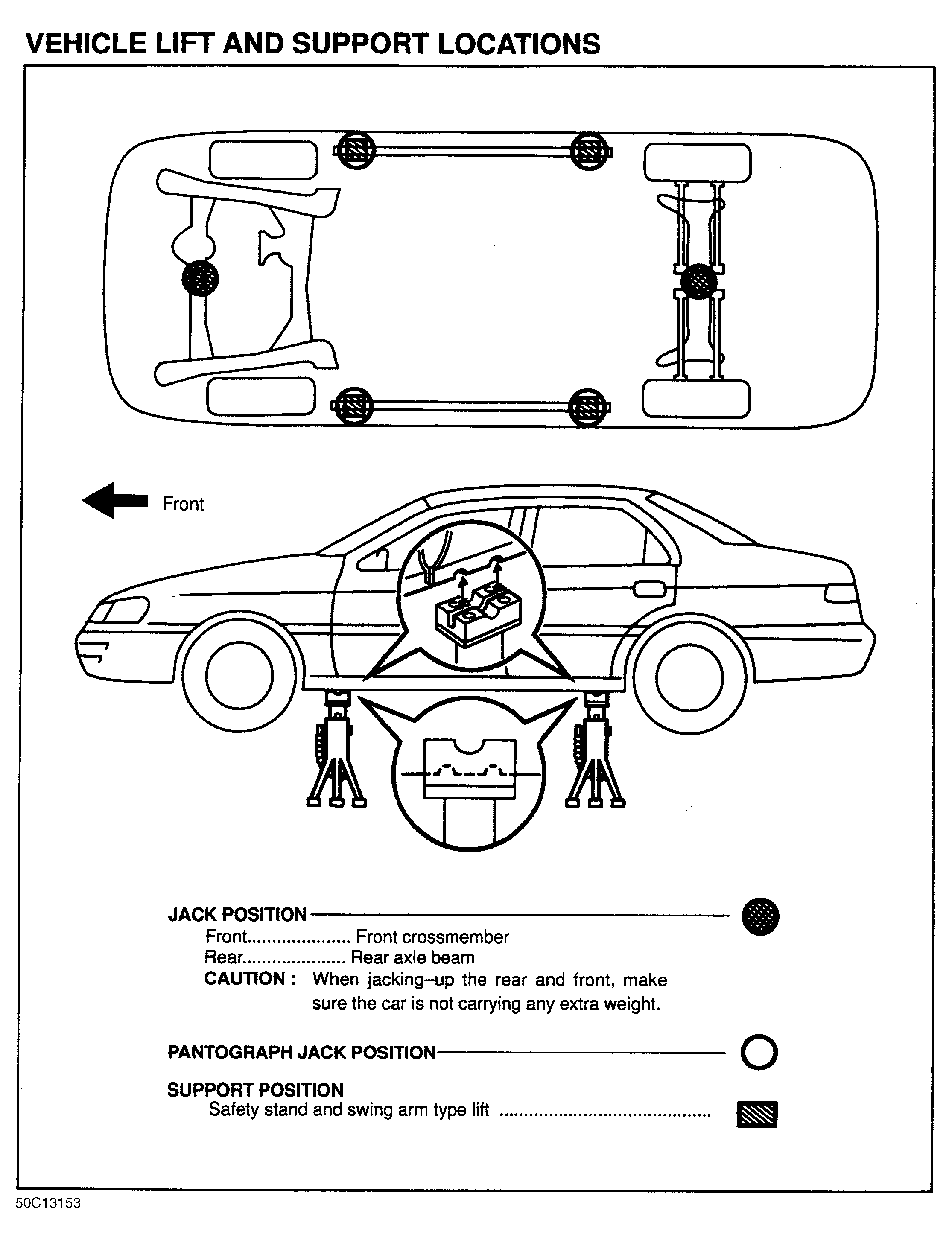

Fig 4: Lift Point Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
