Engine Room Junction Block

Engine room junction block is located on left inner panel, in engine compartment. See Fig 1.

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

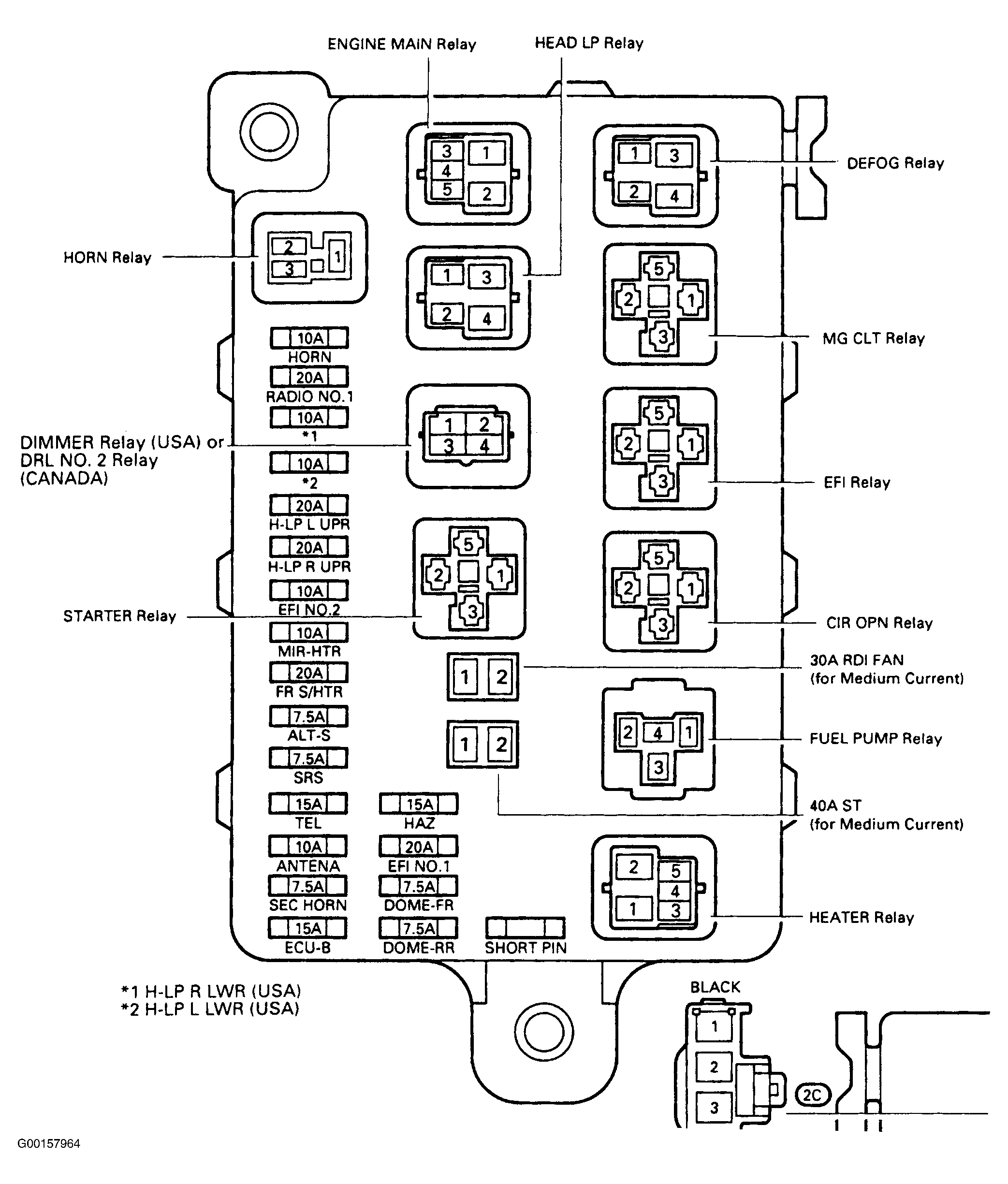

Fig 2: Identifying Engine Room Junction Block Fuses & Relays
