Instrument Panel Junction Block

Instrument panel junction block (J/B) is located behind left side of instrument panel. See Fig 1.

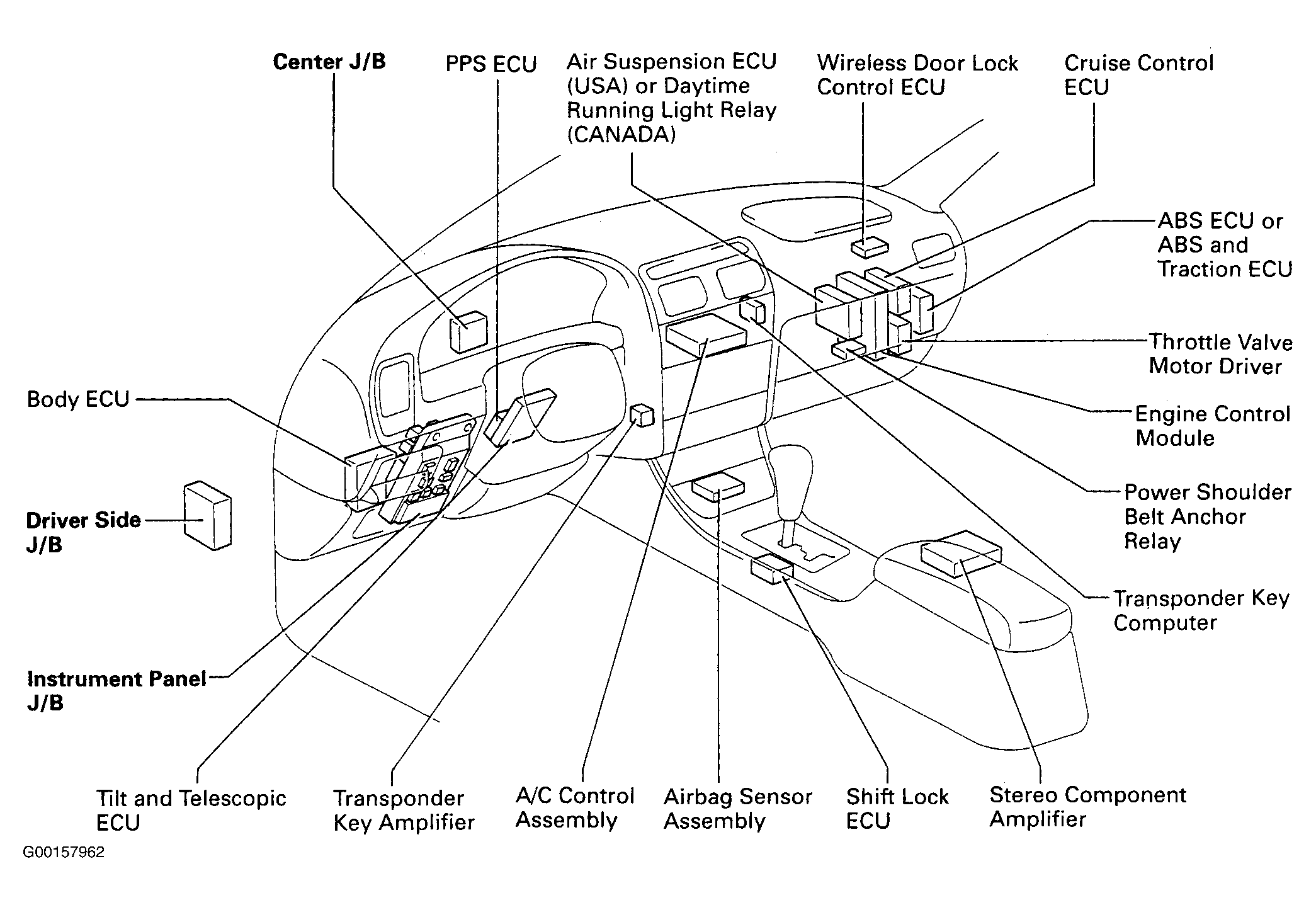

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

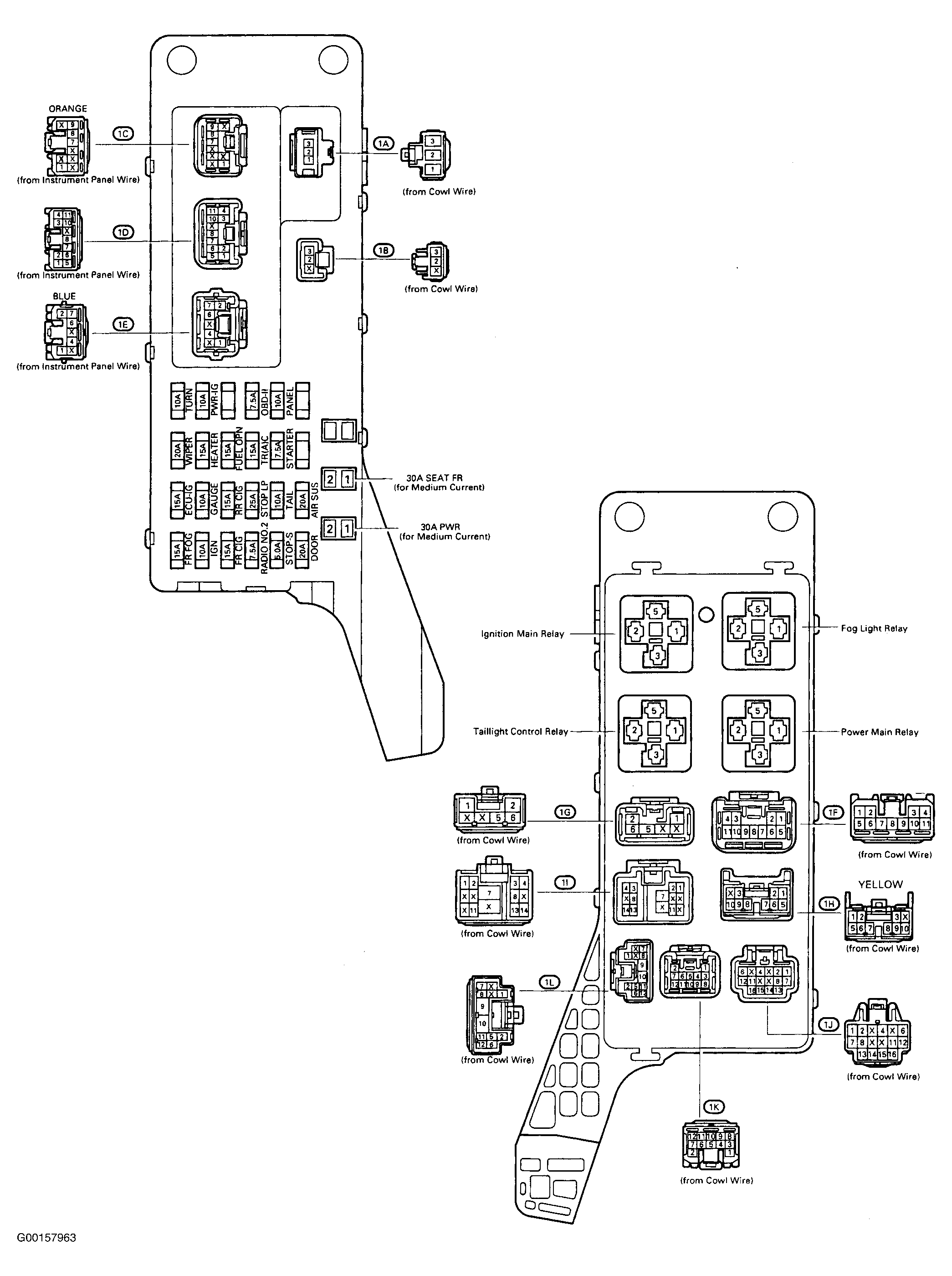

Fig 2: Identifying Instrument Panel Junction Block Fuses & Relays
