Wheel Alignment Specifications

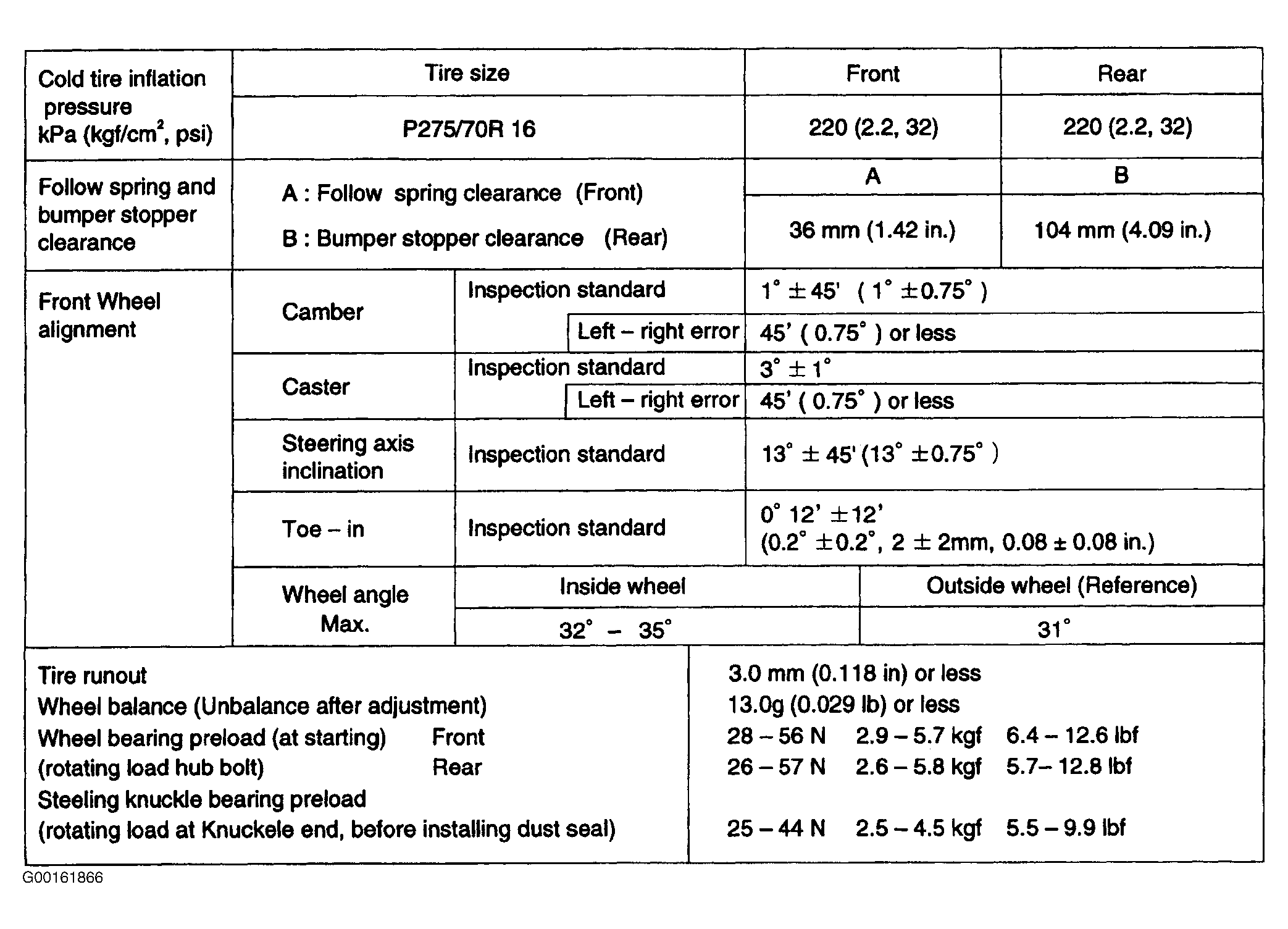

Fig 1: Wheel Alignment Servicing Data

G00161866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
