Instrument Panel

For J/B No. 1 and R/B No. 4 locations, see Fig 1. For Instrument Panel J/B No. 1 and R/B No. 4 see POWER SOURCE (CURRENT FLOW CHART) .

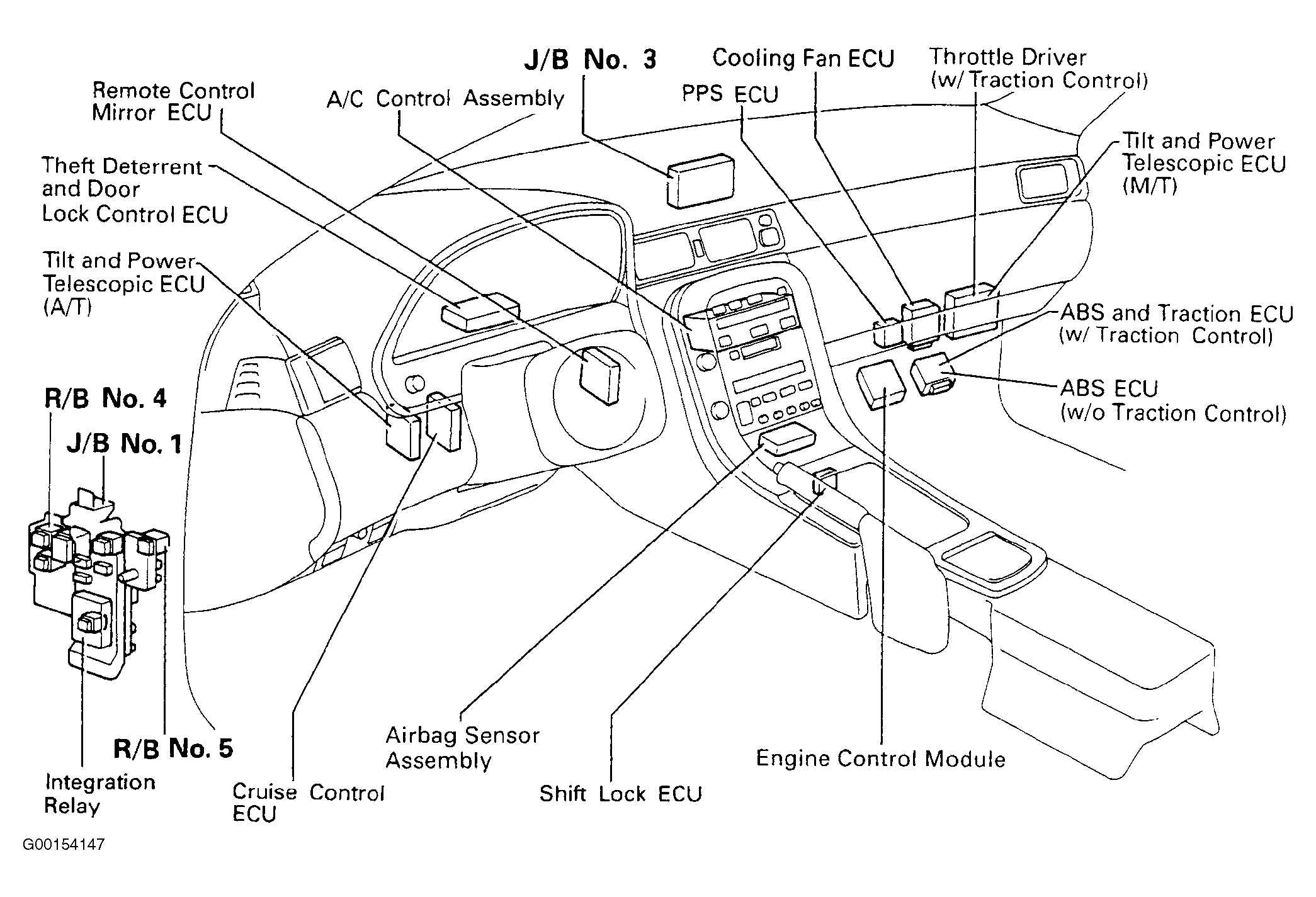

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

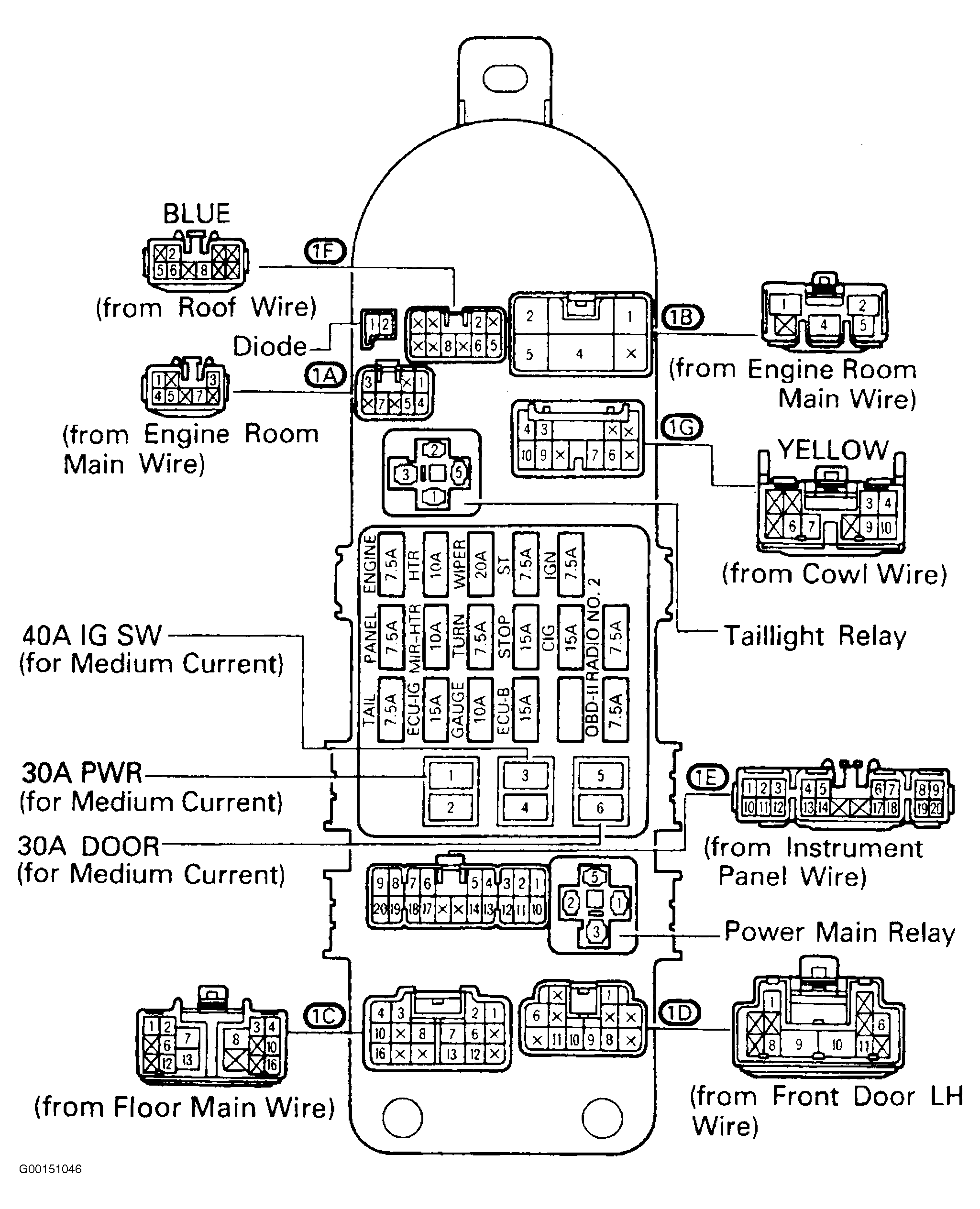

Fig 2: Identifying J/B No. 1 Components

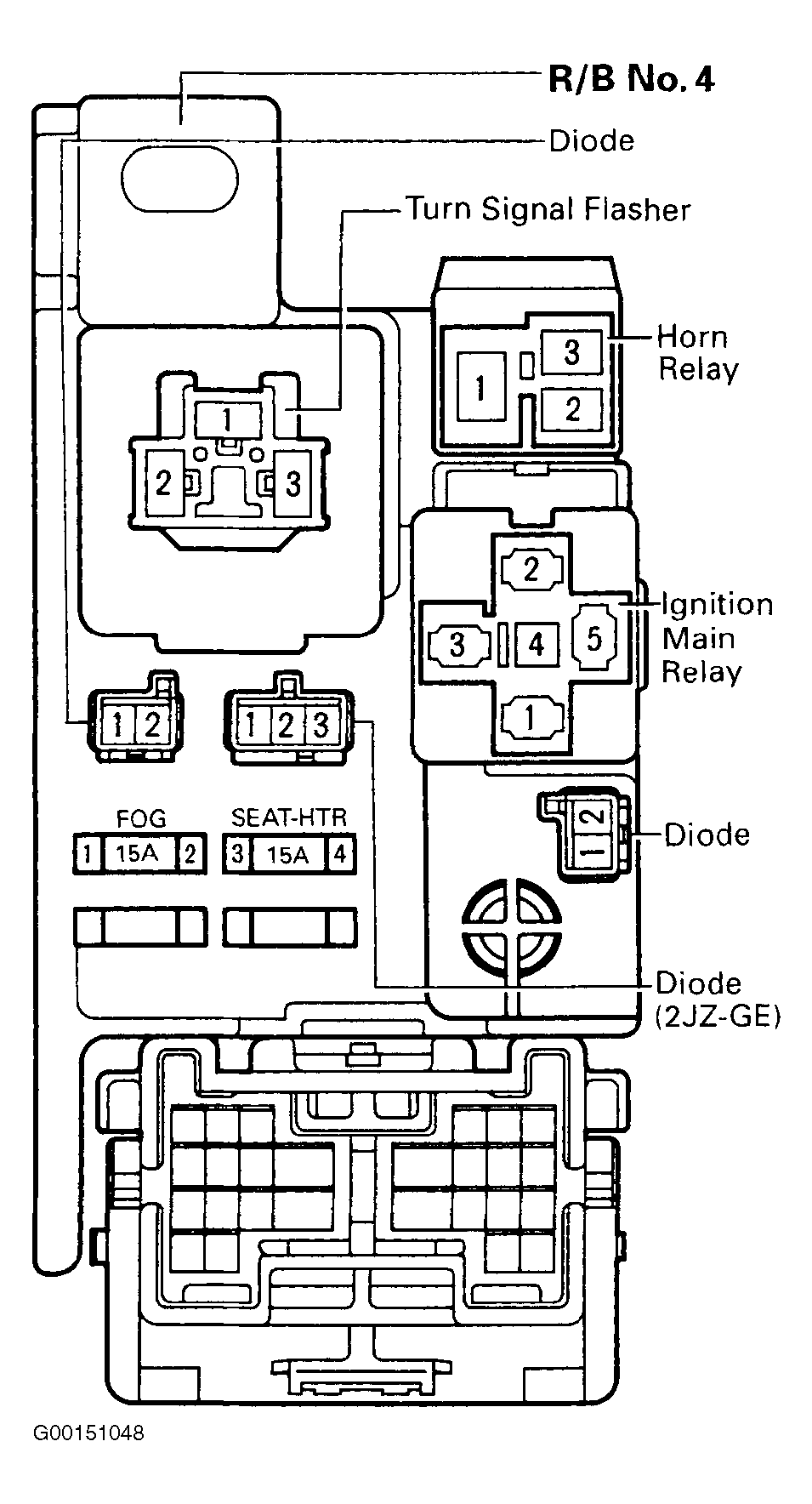

Fig 3: Identifying R/B No. 4 Components
