Connector Identification

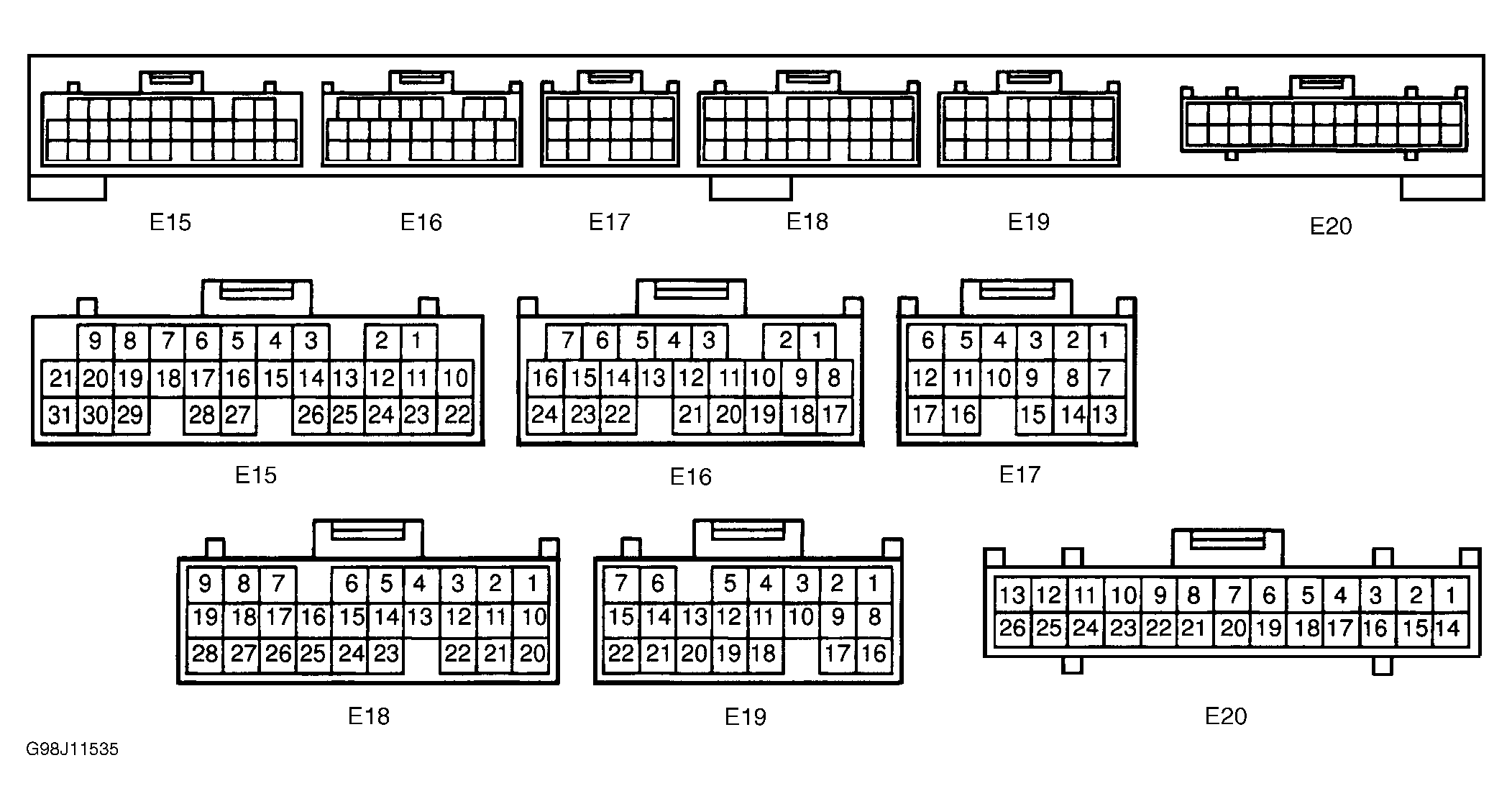

Fig 1: Electronic Control Module (ECM) Connector Terminals (ES300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

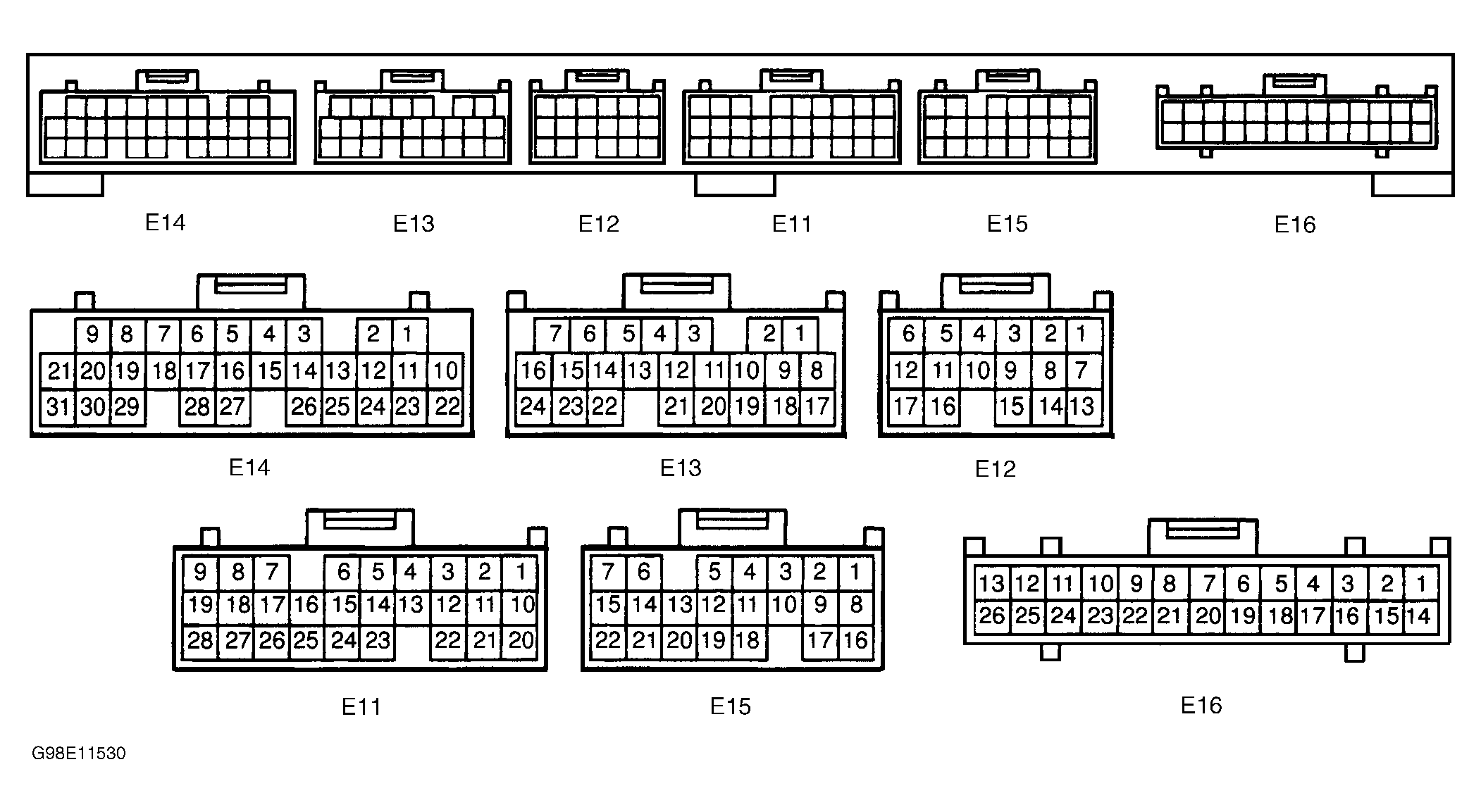

Fig 2: Electronic Control Module (ECM) Connector Terminals (GS300 & GS400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Electronic Control Module (ECM) Connector Terminals (LS400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Electronic Control Module (ECM) Connector Terminals (SC300 & SC400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
