V6 Ignition Timing: T100

  1. Start engine and warm engine to normal operating temperature. Shut engine off. Connect timing light to spark plug wire on cylinder No. 1. Cylinder No. 1 is front cylinder on right side when viewed from flywheel end of engine. See Figure.
  2. Connect scan tool to data link connector No. 3. See Fig 1-25. Scan tool is used to read engine RPM.
  3. Apply parking brake. Place transmission in Neutral. Start engine and maintain engine at 2500 RPM for 90 seconds and then allow engine to idle. Ensure idle speed is 650-750 RPM.
  4. Install Jumper Wire (SST 09843-18020) between terminals TE1 and E1 on data link connector No. 1. See Fig 7-28. Data link connector No. 1 is located at center of air intake chamber at driver's side of the engine.
    NOTE: Timing marks are located on timing belt cover, near crankshaft pulley.
  5. Ensure base timing is within specification at idle with transmission in Neutral, and with A/C and all accessories off. See V6 IGNITION TIMING  table.
  6. Remove jumper wire from data link connector No. 1. Ensure ECM controlled timing is within specification. See V6 IGNITION TIMING  table. Shut engine off. Remove jumper wire, timing light and scan tool.
V6 IGNITION TIMING (Degrees BTDC @ Idle) (1)

Application (2) Base Timing (3) Controlled Timing
Avalon, Camry & Sienna 8-12 7-24
Tacoma 8-12 3-19
T100 8-12 13-22
4Runner 8-12 3-19
(1) Check with engine at normal operating temperature, transmission/transaxle in Neutral, parking brake applied, electric cooling fan off (if equipped) and A/C and all accessories off.
(2) With Jumper Wire (SST 09843-18020) installed between terminals TE1 and E1 on data link connector No. 1.
(3) With jumper wire removed from data link connector No. 1.
Fig 1: Connecting Scan Tool (Avalon)
G97J28877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Connecting Scan Tool (Camry)
G98B11206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Connecting Scan Tool (Sienna)
G98D11208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Connecting Scan Tool (Tacoma)
G97E28872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Connecting Scan Tool (T100)
G97F28873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Connecting Scan Tool (4Runner)
G97G28874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Installing Jumper Wire Between Data (Avalon & Camry) Link Connector No. 1 Terminals
G97A28878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

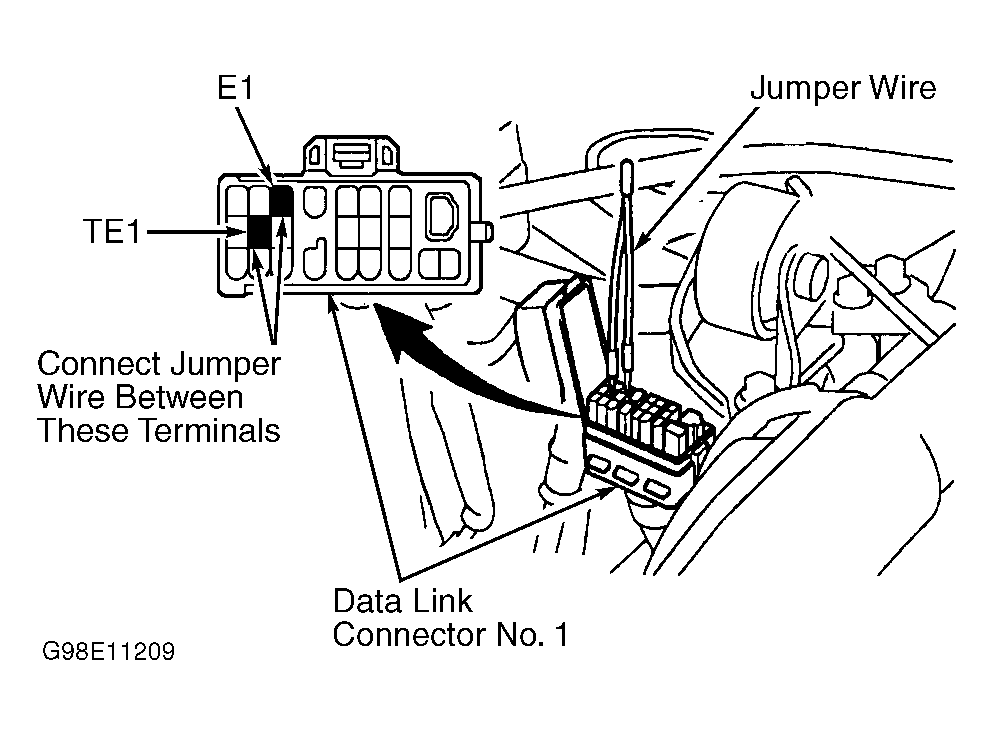

Fig 8: Installing Jumper Wire Between Data (Sienna) Link Connector No. 1 Terminals
G98E11209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Installing Jumper Wire Between Data (Tacoma, T100 & 4Runner) Link Connector No. 1 Terminals
G95H30905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
