Removal & Installation: LS400: Components

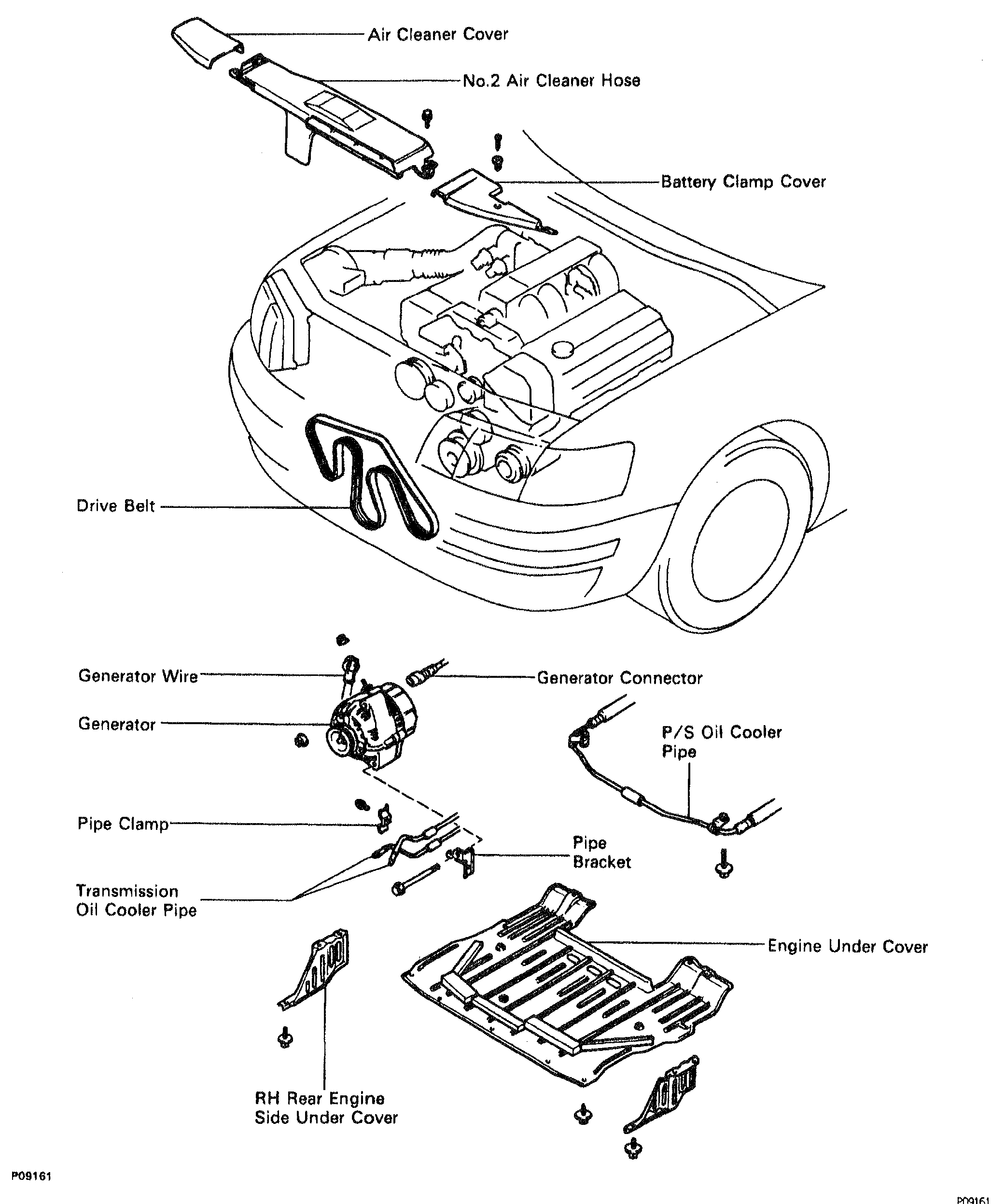

Fig 1: Identifying Generator Replacement Components

G00501214

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
