SCANTOOL Immobilizer Key Code Utility (SS006-99)

Publication date: 1999-06-18
Reference number: SS006-99

SCANTOOL IMMOBILIZER KEY CODE UTILITY

TECHNICAL SERVICE BULLETIN

Reference Number(s): SS006-99, Date of Issue: June 18, 1999

LEXUS:	1998-1999 LS 400, GS 300/400, SC 300/400, ES 300 & LX 470; 1999 RX 300
GROUP:	Special Service Tools
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

SCANTOOL IMMOBILIZER KEY CODE UTILITY

The Diagnostic Tester now incorporates a Key Code Utility Menu capable of performing the following tasks for immobilizer functions:

The information contained in this bulletin will provide you with a detailed outline for the use of immobilizer functions with the Diagnostic Tester.

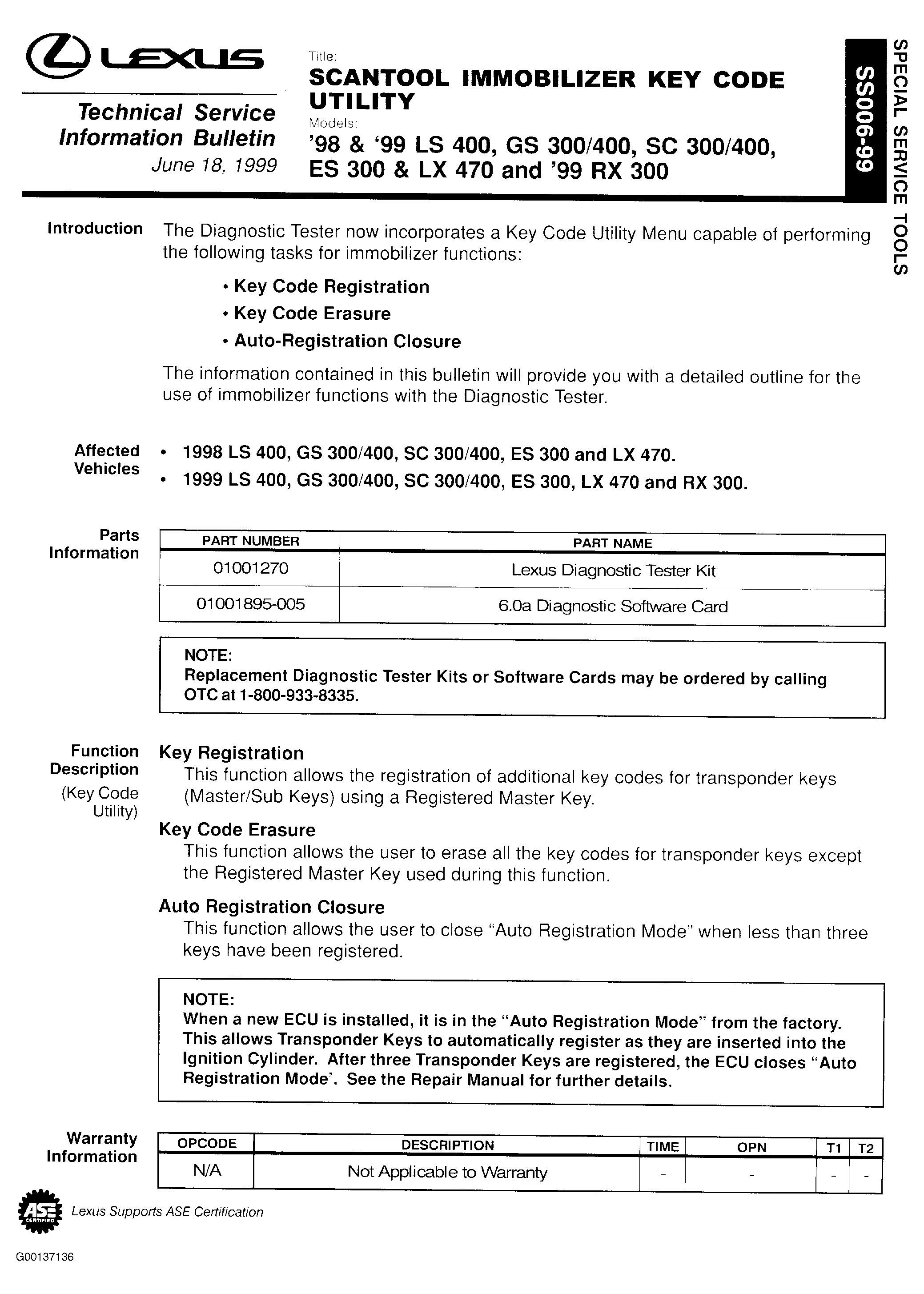

Fig 1: Page 1 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

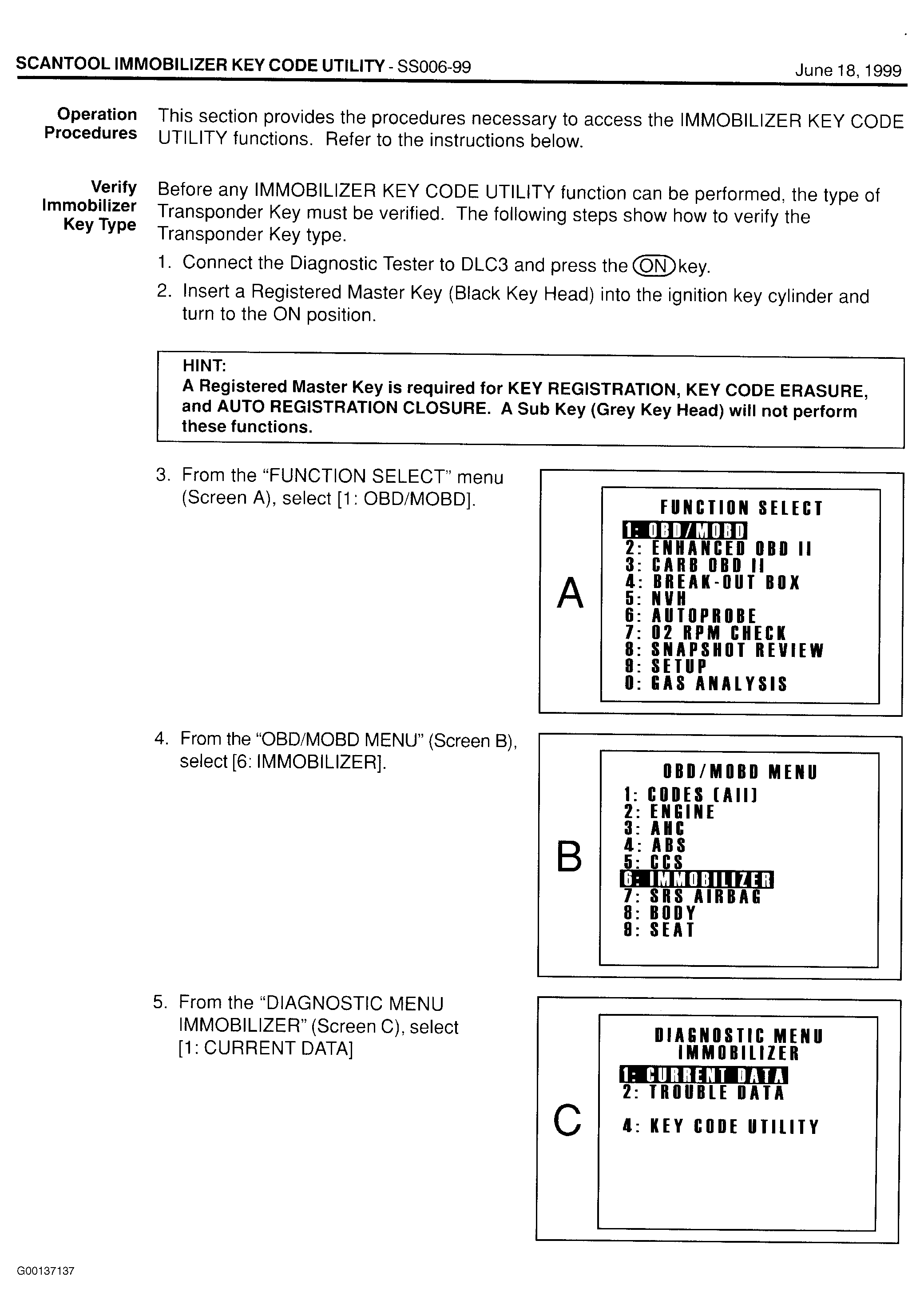

Fig 2: Page 2 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

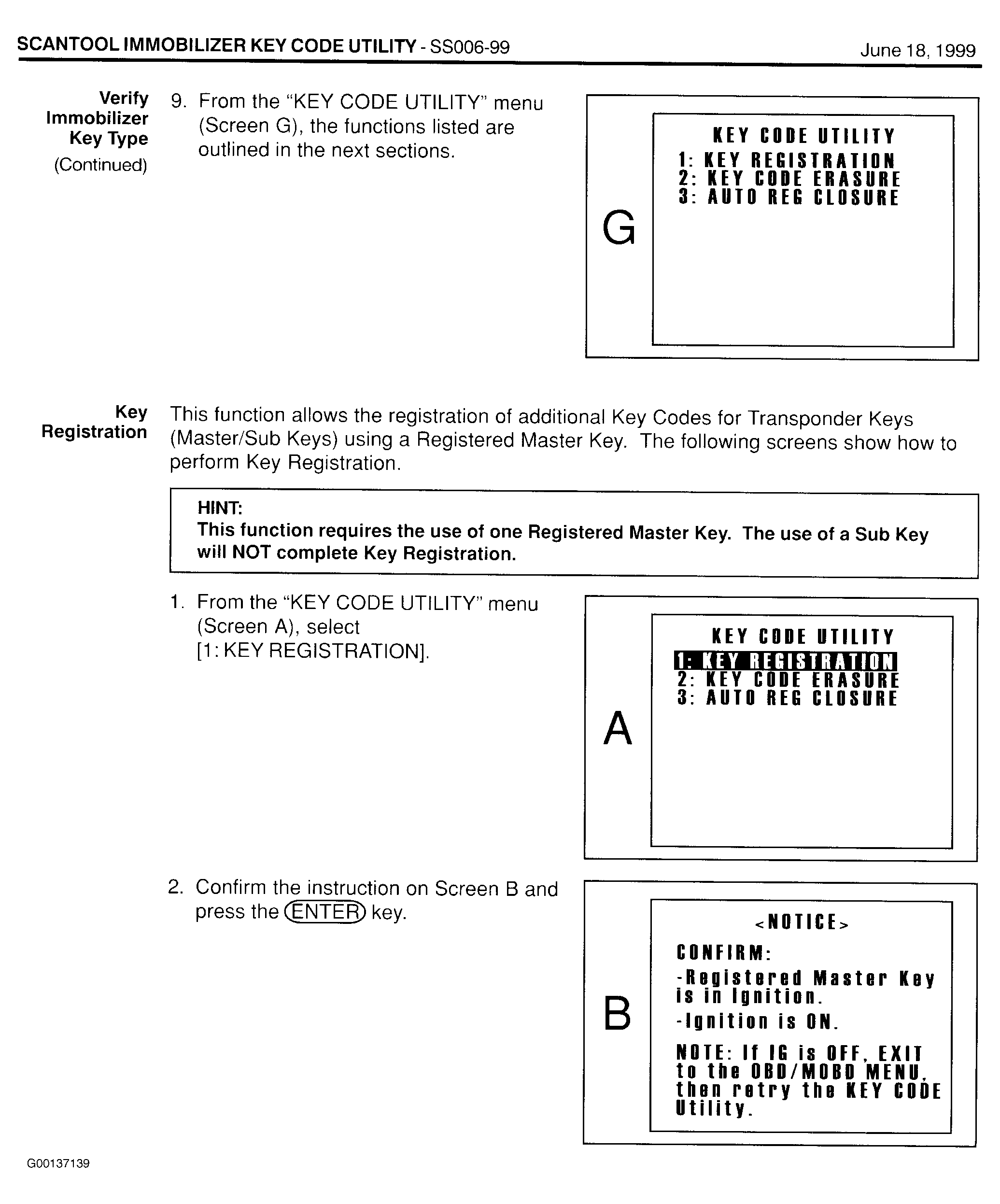

Fig 3: Page 3 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

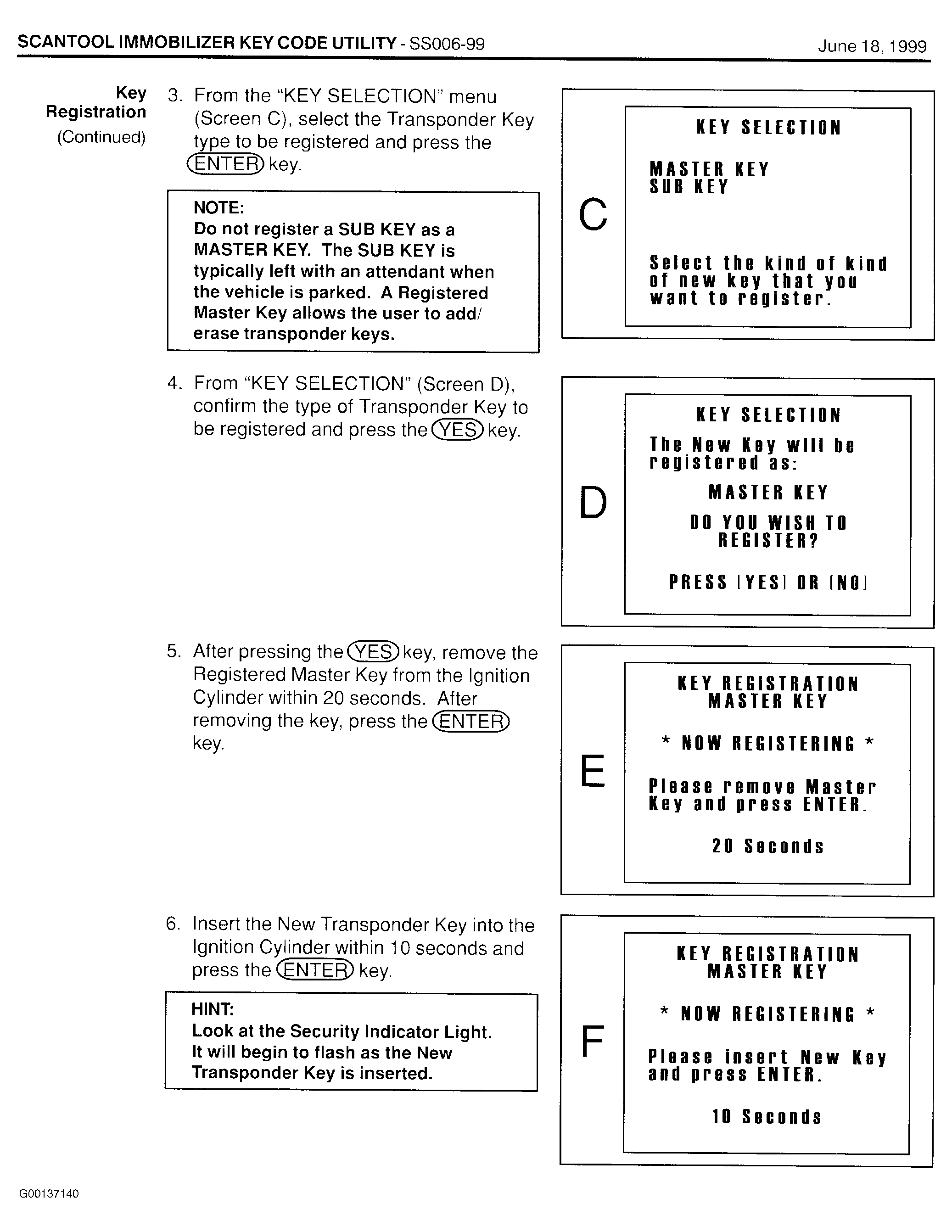

Fig 4: Page 4 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

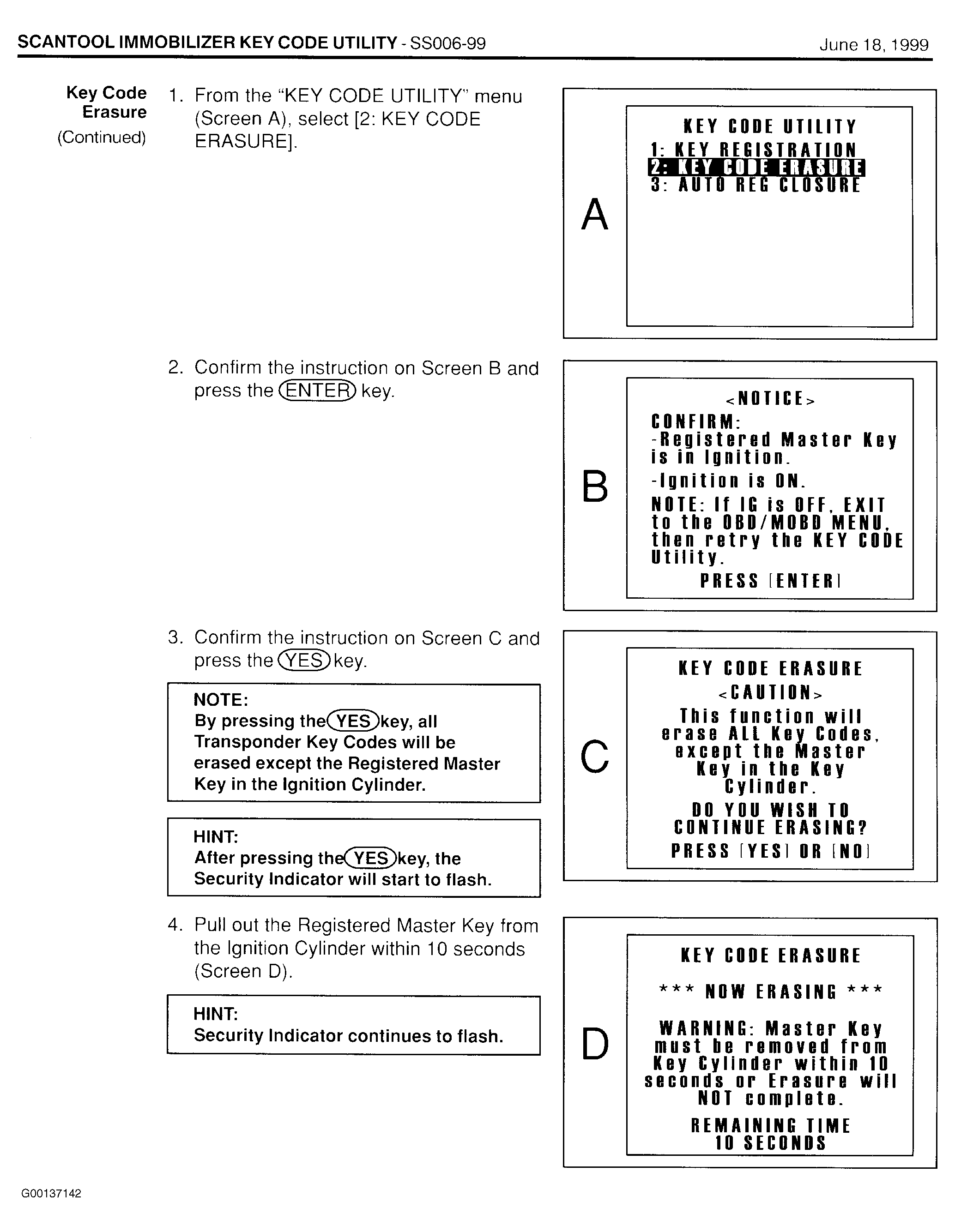

Fig 5: Page 5 of Bulletin

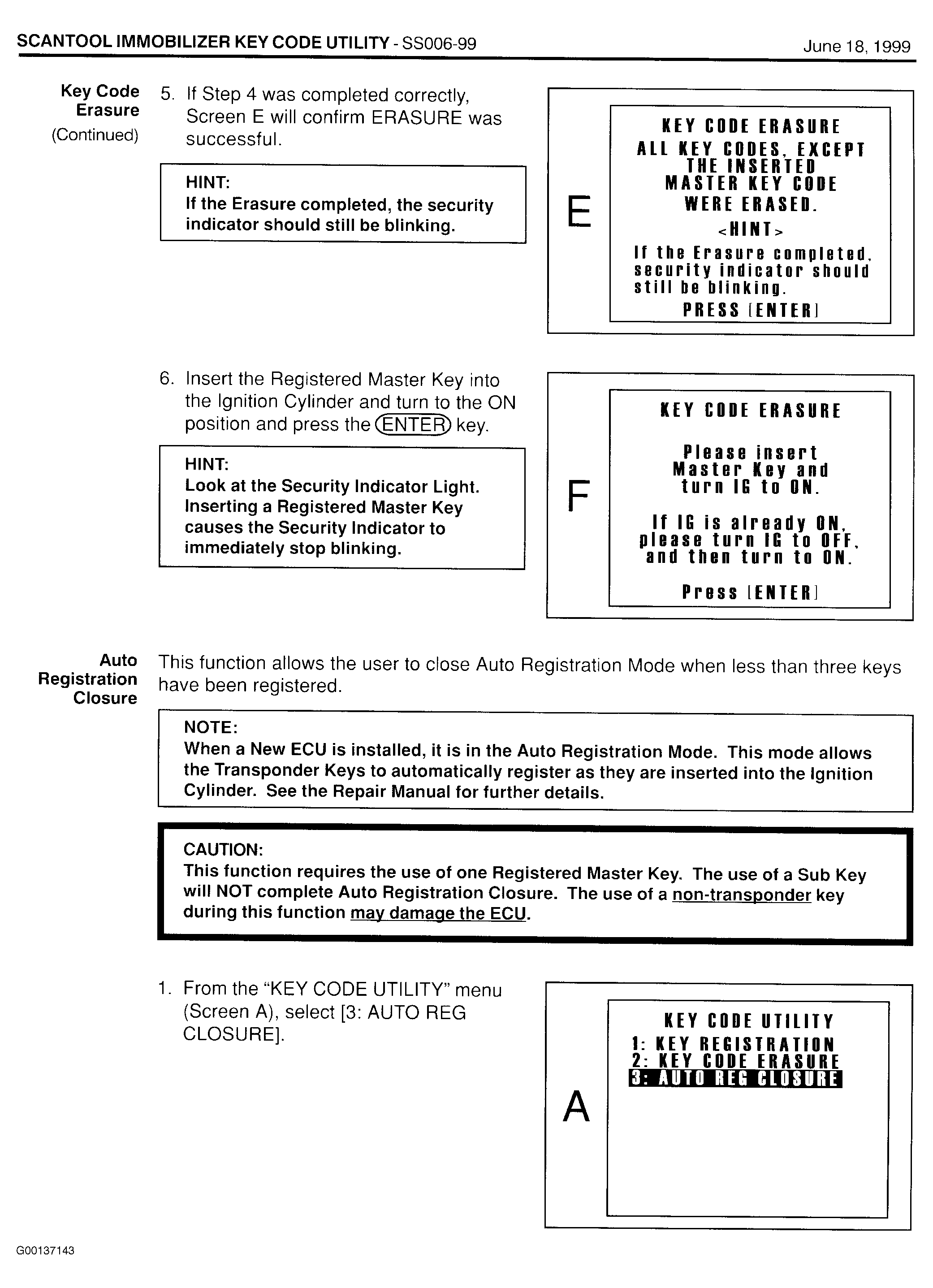

Fig 6: Page 6 of Bulletin

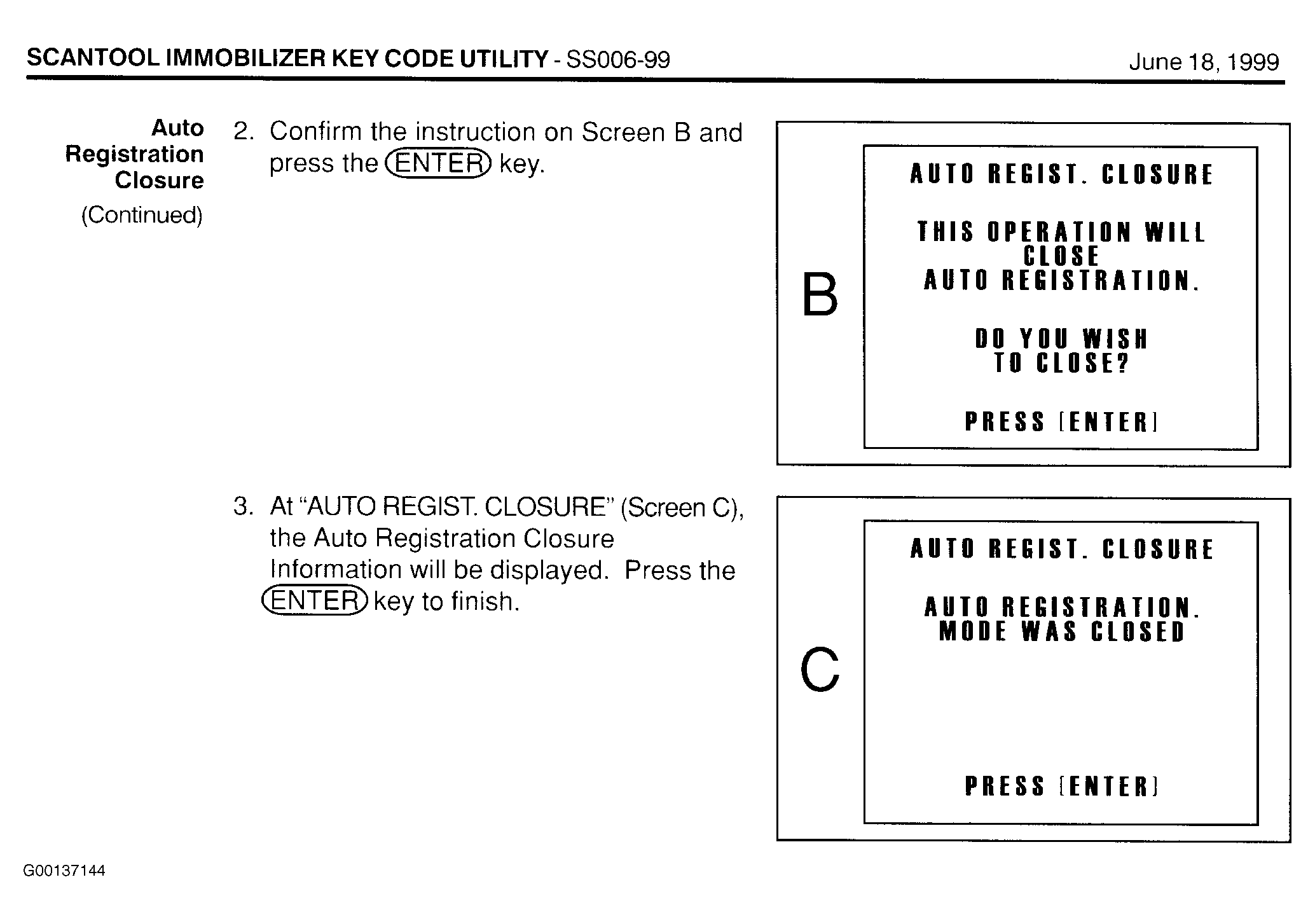

Fig 7: Page 7 of Bulletin

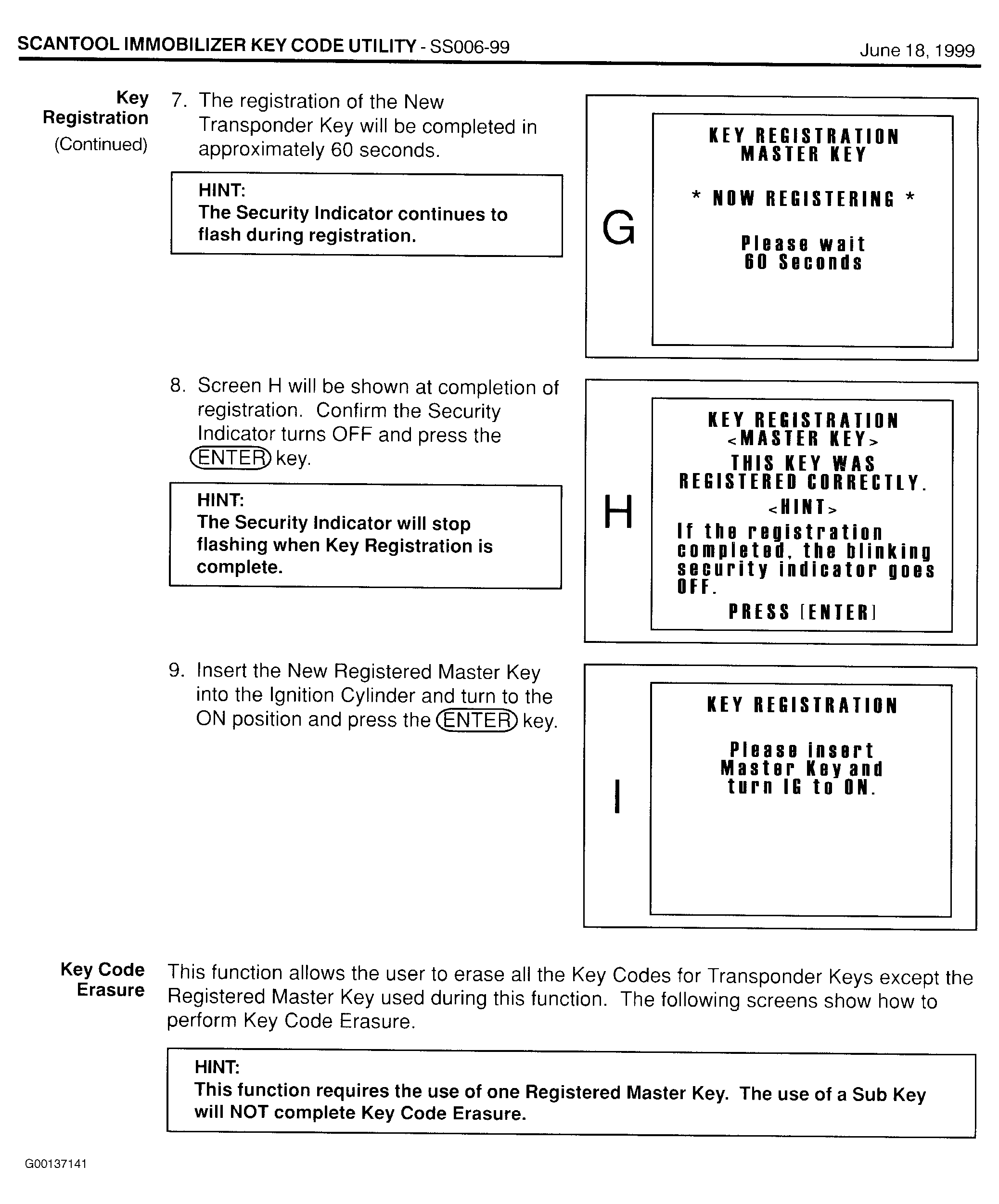

Fig 8: Page 8 of Bulletin

Fig 9: Page 9 of Bulletin
