Compressor Lock Sensor

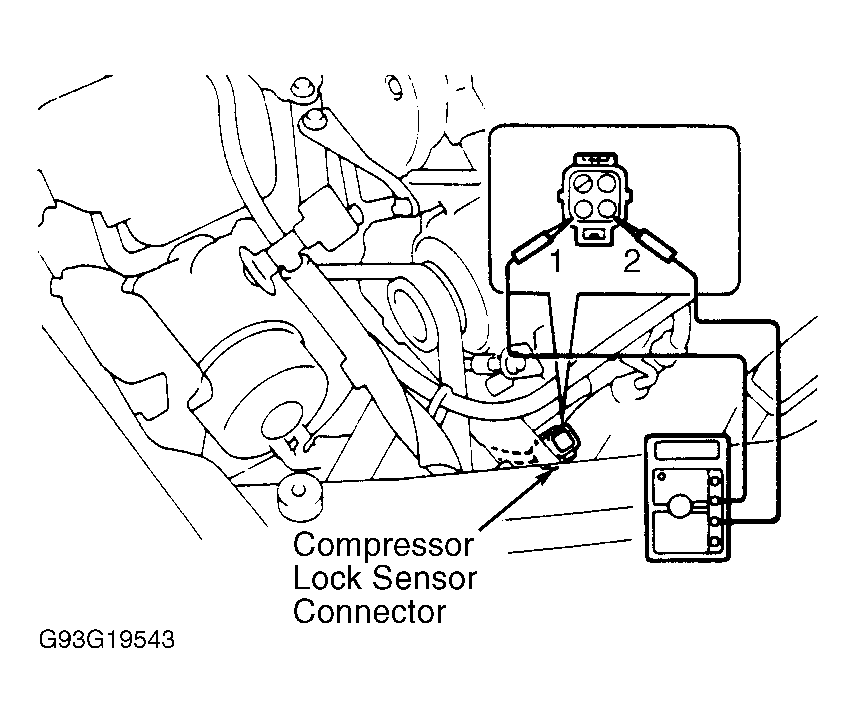

Unplug compressor lock sensor connector, located at compressor. Measure resistance between sensor terminals No. 1 and 2 at temperature specified. See Fig 1. Replace sensor if resistance is not 65-125 ohms at 68°F (20°C).
Unplug compressor lock sensor connector, located at compressor. Measure resistance between sensor terminals No. 1 and 2 at temperature specified. See Fig 1. Replace sensor if resistance is not 65-125 ohms at 68°F (20°C).
