Instrument Panel Fuses

Instrument Panel Junction Block (J/B) is located behind left side of instrument panel. See Fig 1.

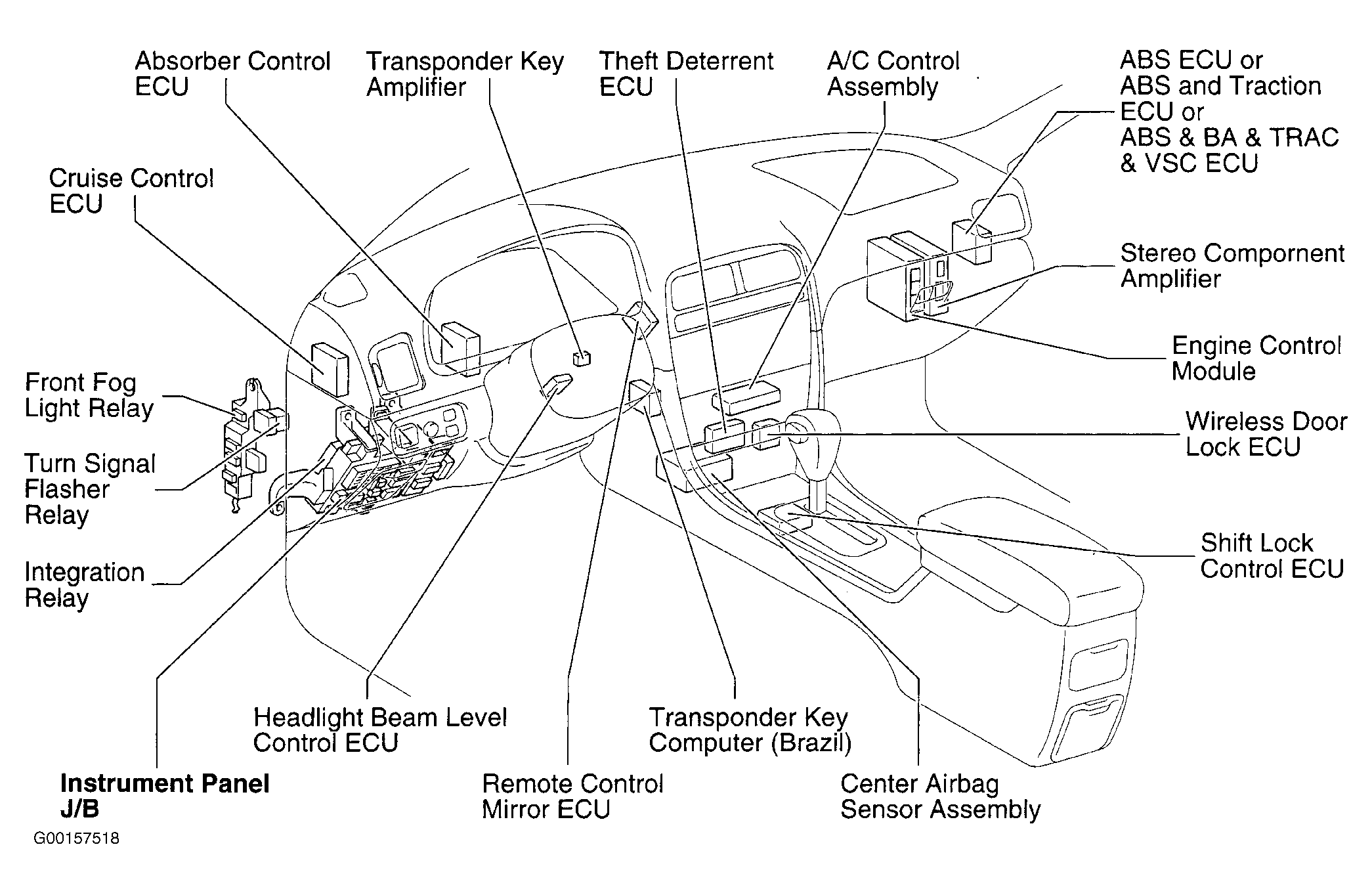

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

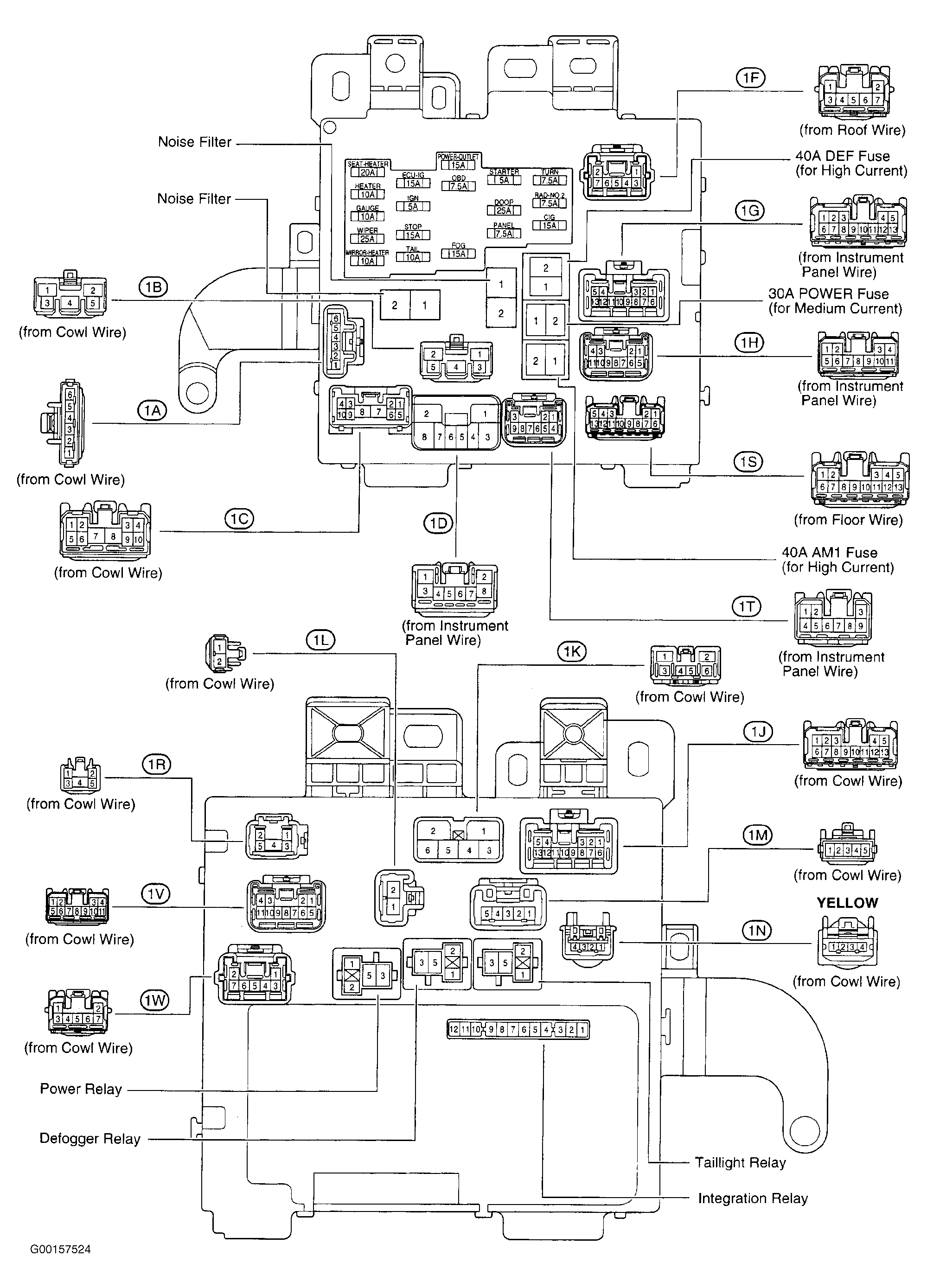

Fig 2: Identifying Instrument Panel Junction Block Fuses & Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

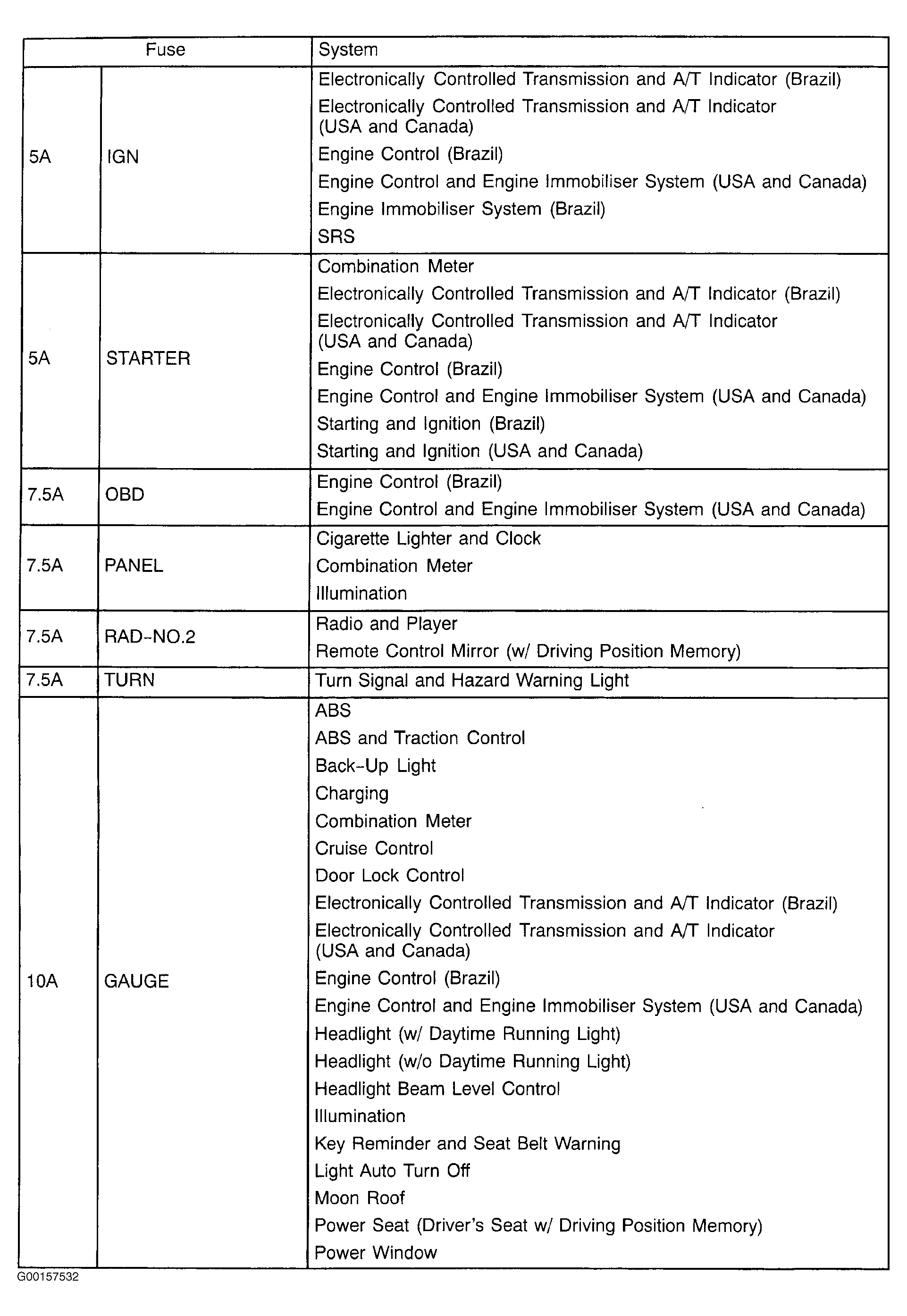

Fig 3: Instrument Panel Junction Block Legend (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

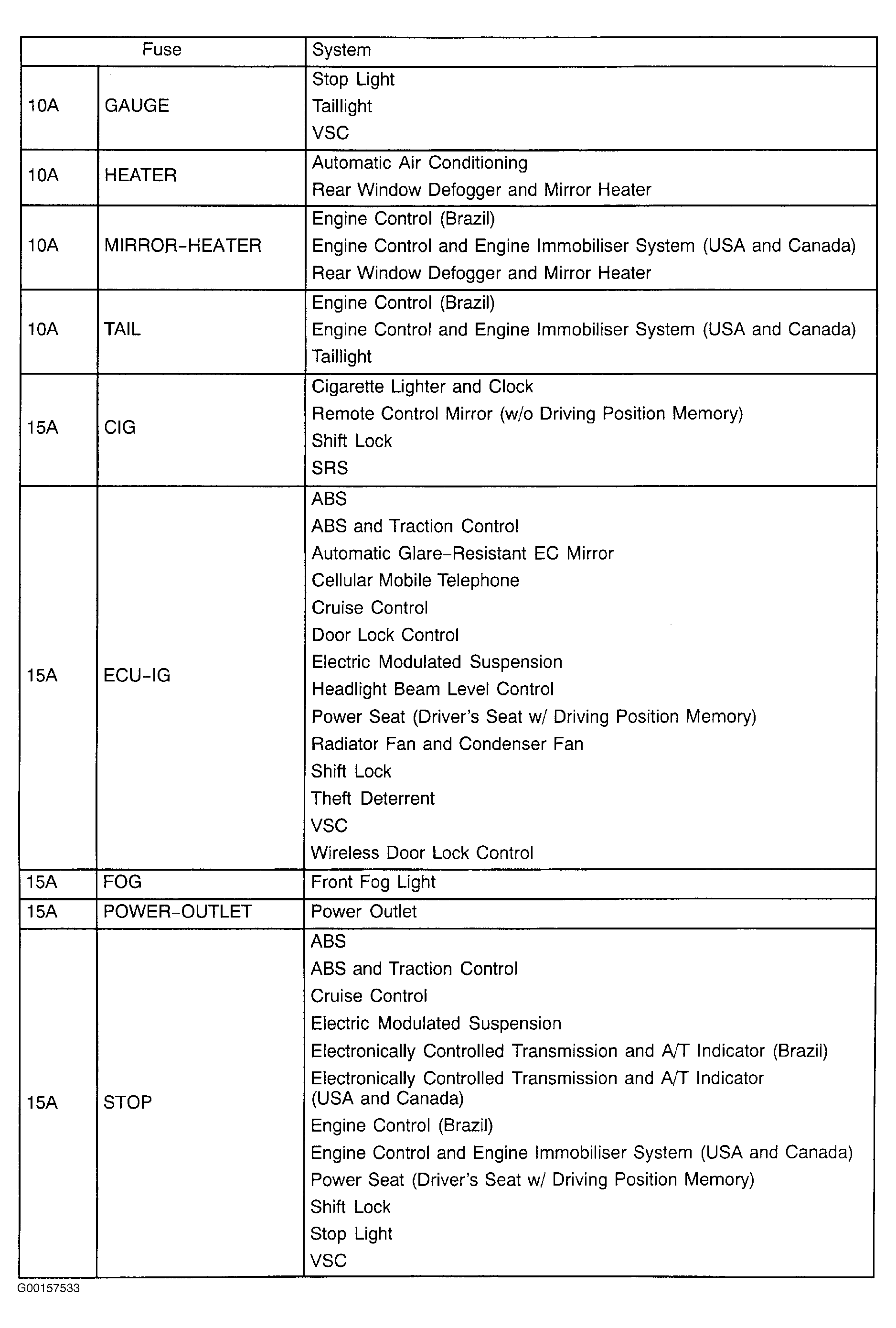

Fig 4: Instrument Panel Junction Block Legend (2 Of 4)

Fig 5: Instrument Panel Junction Block Legend (3 Of 4)

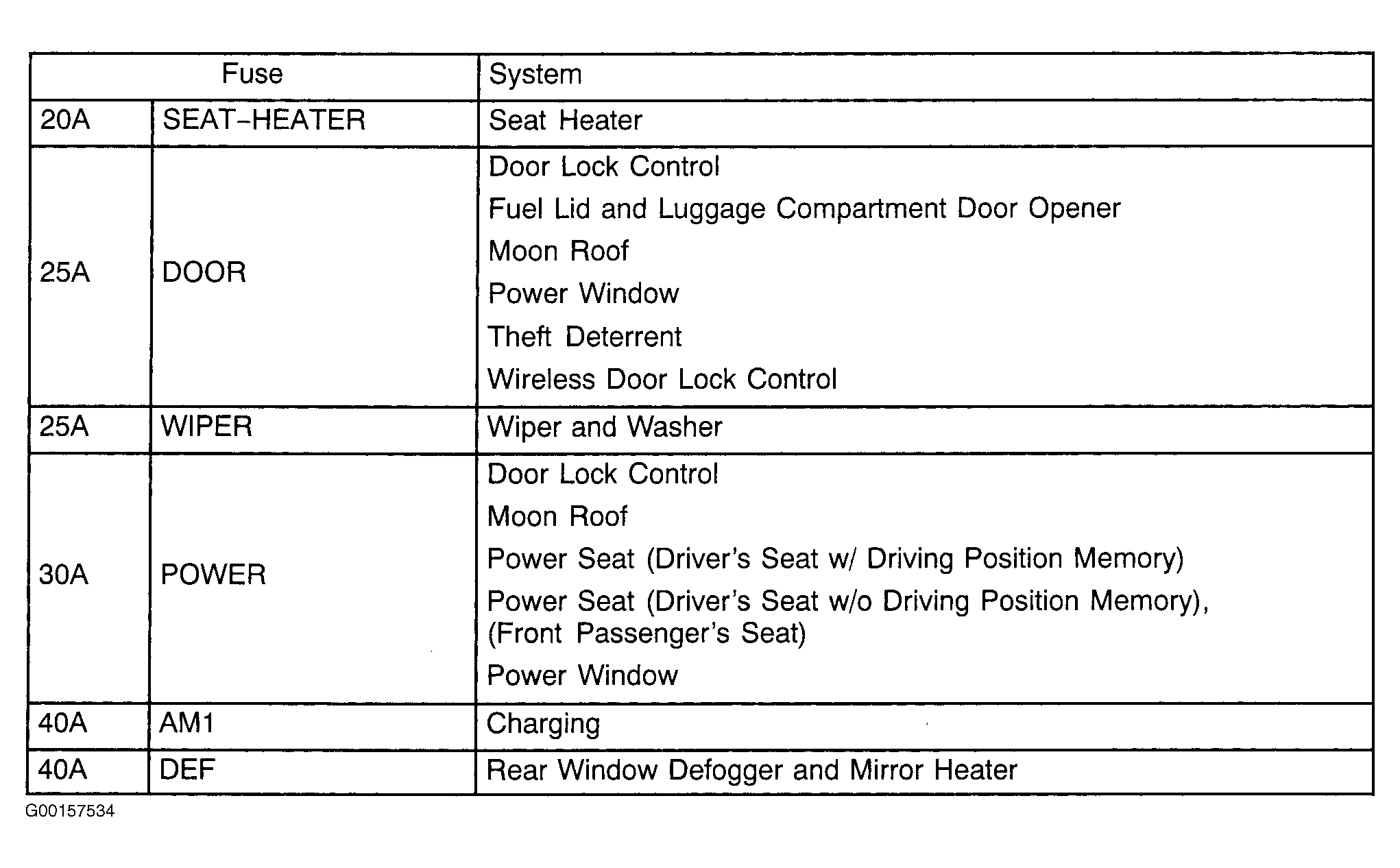

Fig 6: Instrument Panel Junction Block Legend (4 Of 4)
