Engine Compartment Fuses

Engine Room No. 1 Relay Block (R/B) is located in right rear of engine compartment, behind right shock tower. Engine Room No. 3 Relay Block (R/B) is located on left inner panel, in engine compartment. See Fig 1.

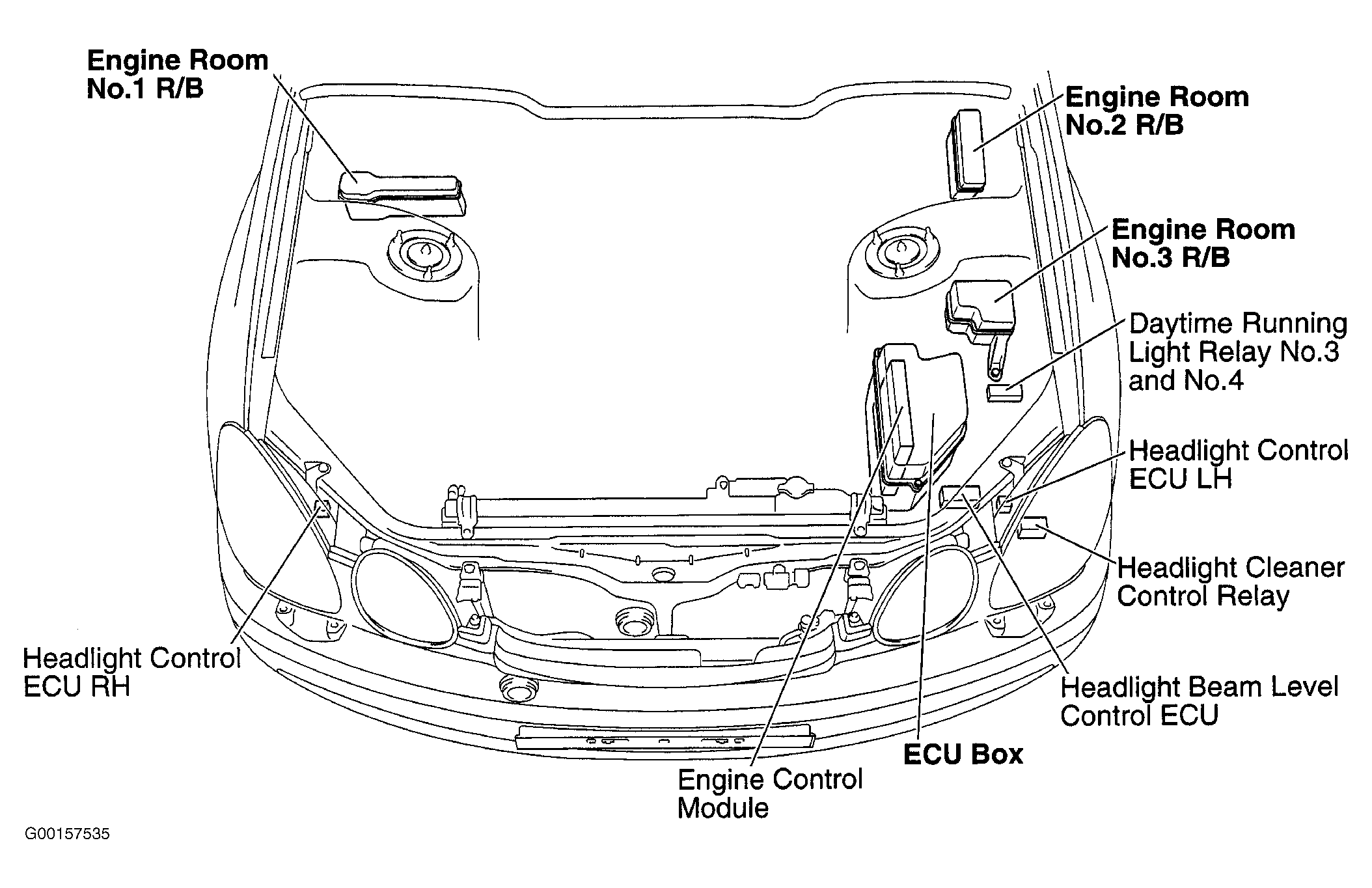

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

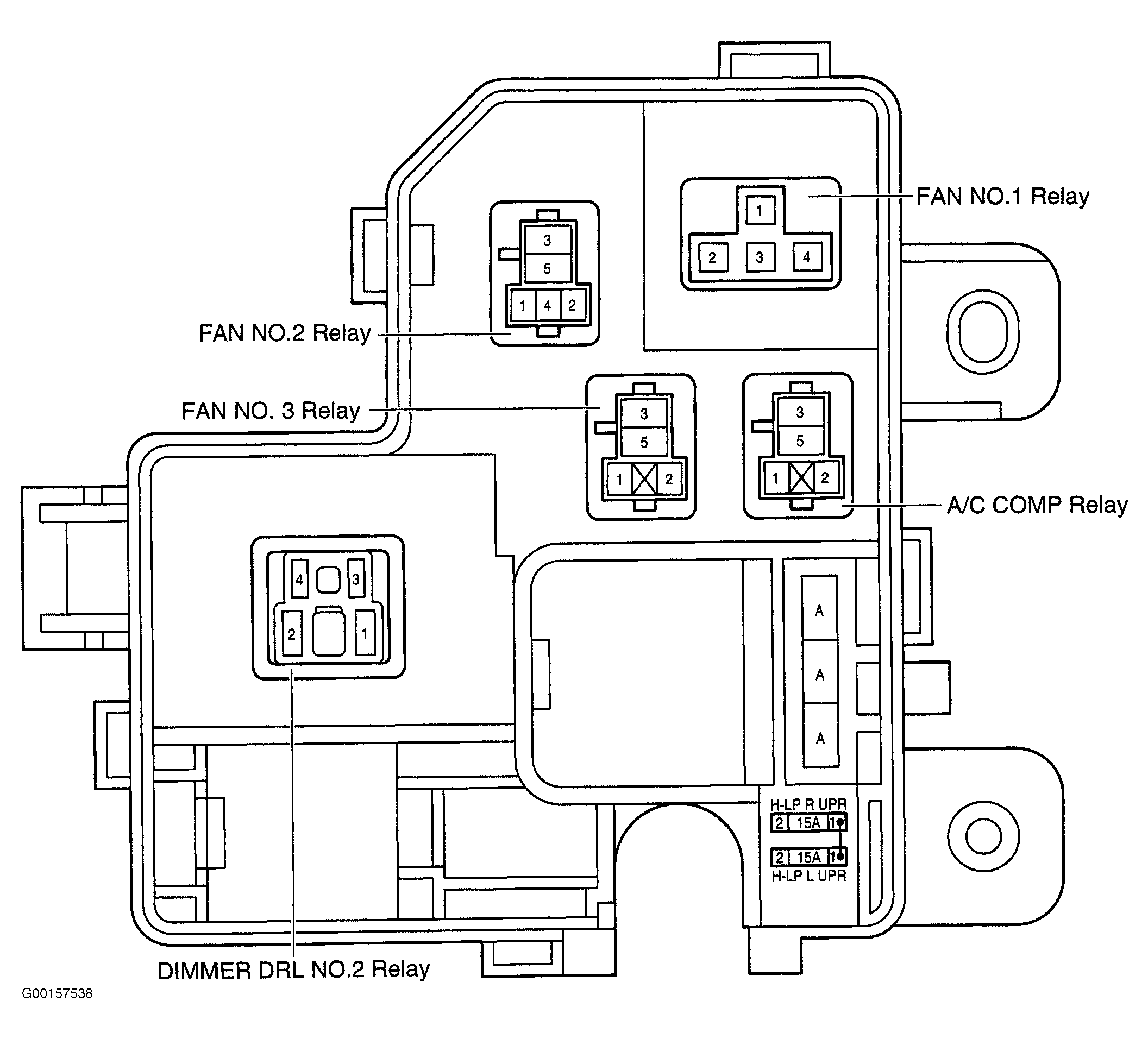

Fig 2: Identifying Engine Room No. 1 Relay Block (R/B) Fuses & Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

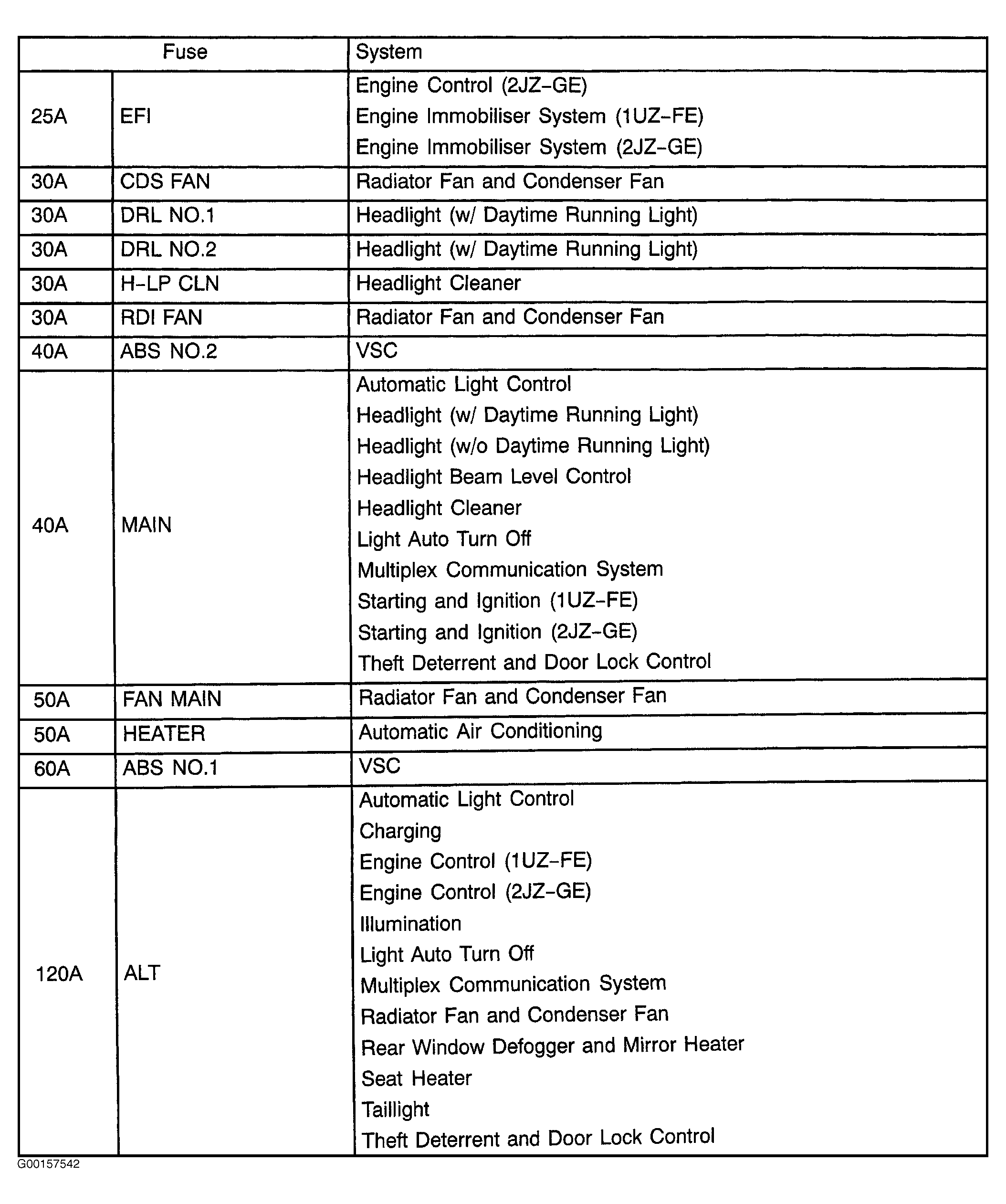

Fig 3: Engine Room No. 1 Relay Block (R/B) Legend (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

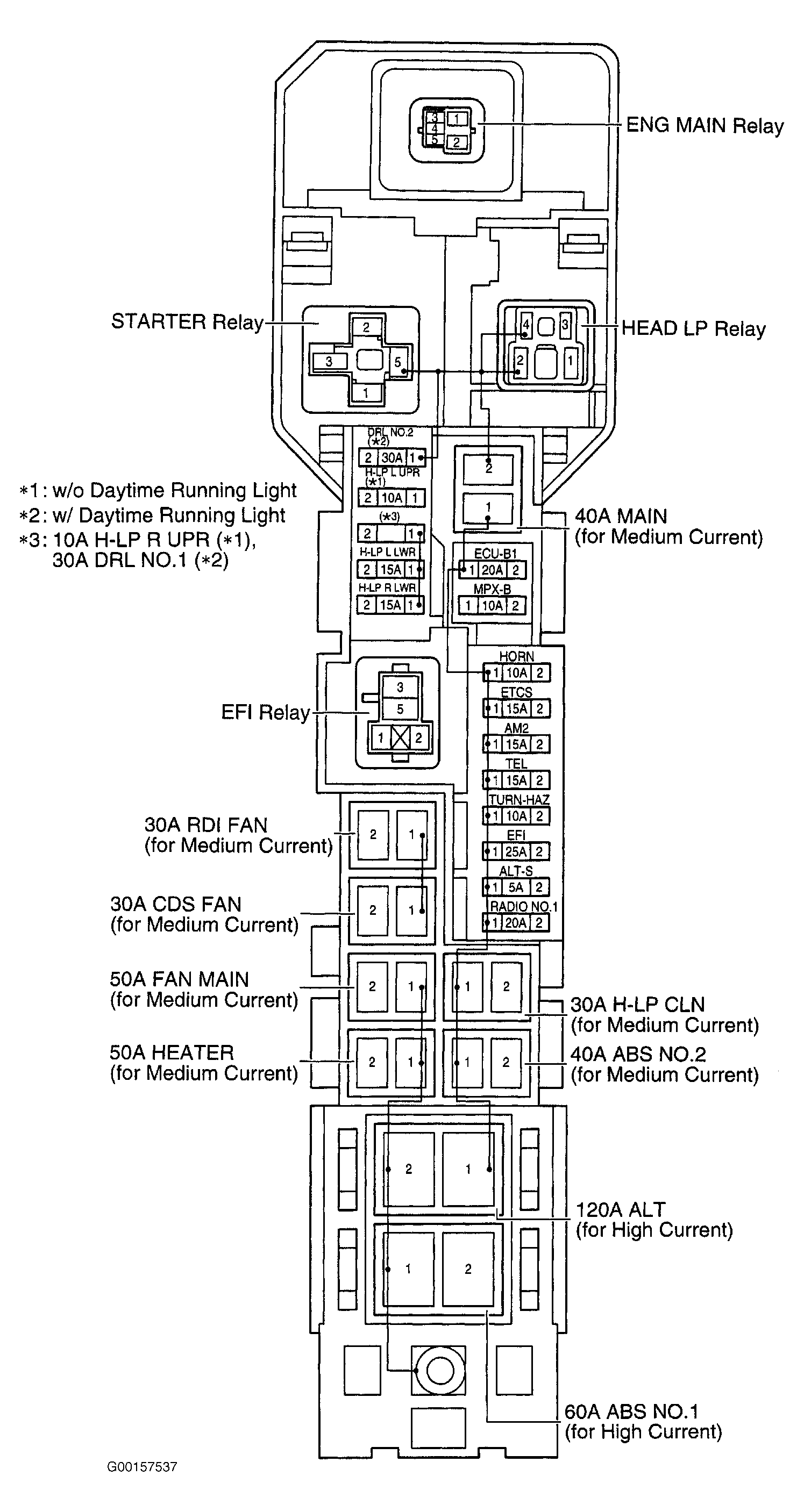

Fig 4: Engine Room No. 1 Relay Block (R/B) Legend (2 Of 2)

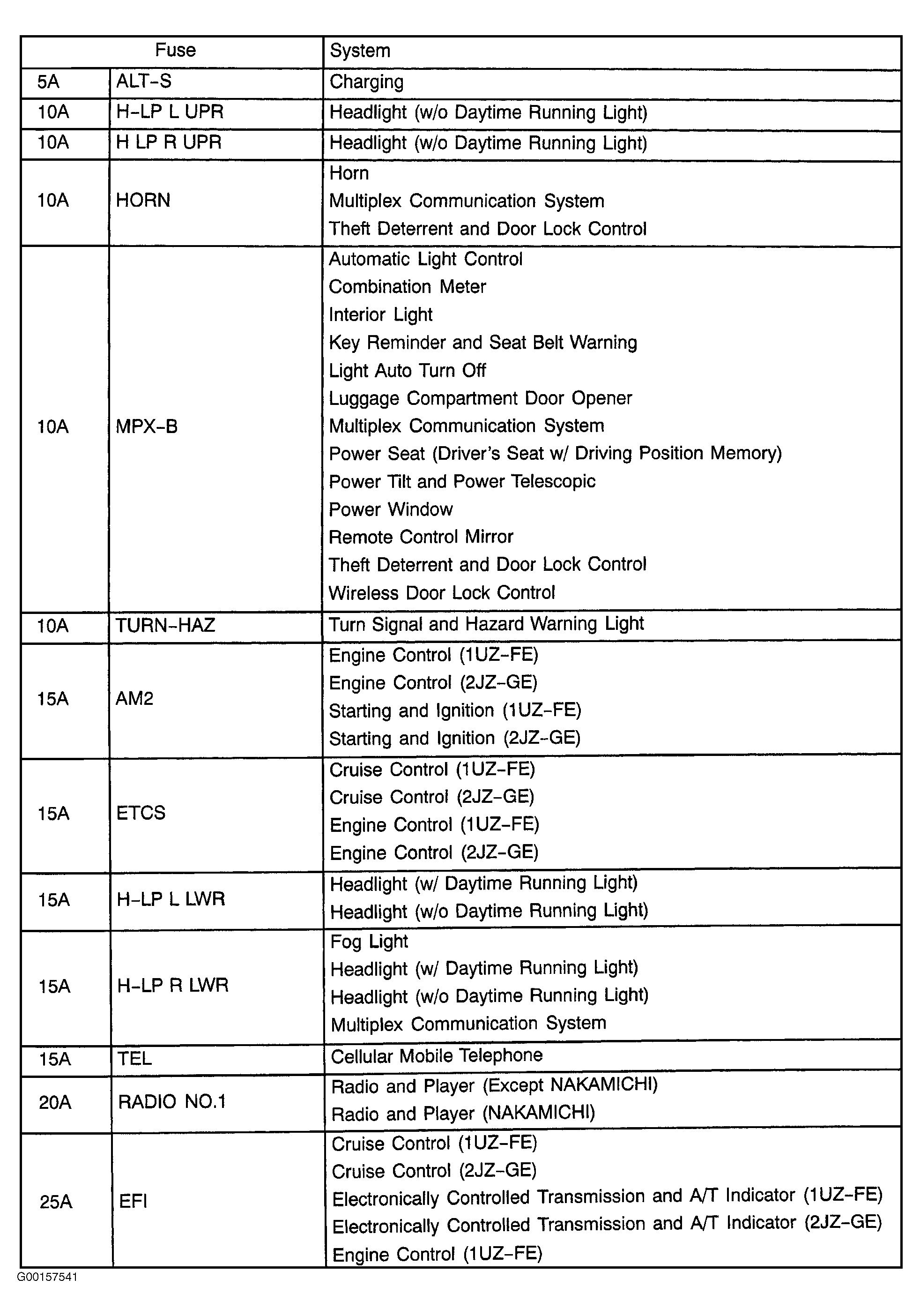

Fig 5: Identifying Engine Room No. 3 Relay Block (R/B) Fuses & Relays

Fig 6: Engine Room No. 3 Relay Block (R/B) Legend
