Instrument Panel Fuses

Cowl Side Junction Block (J/B) LH is located behind left kick panel. See Fig 1.

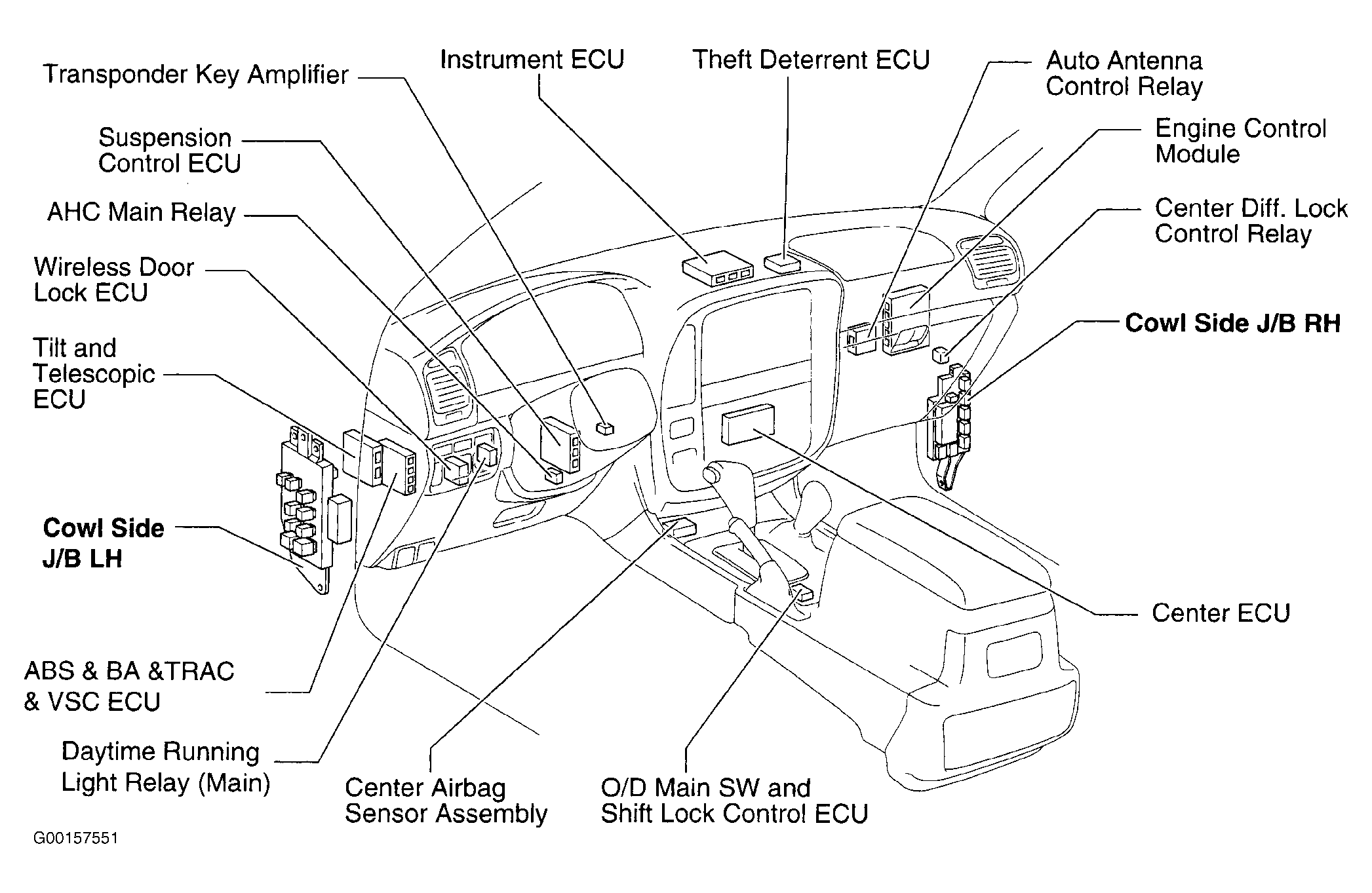

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

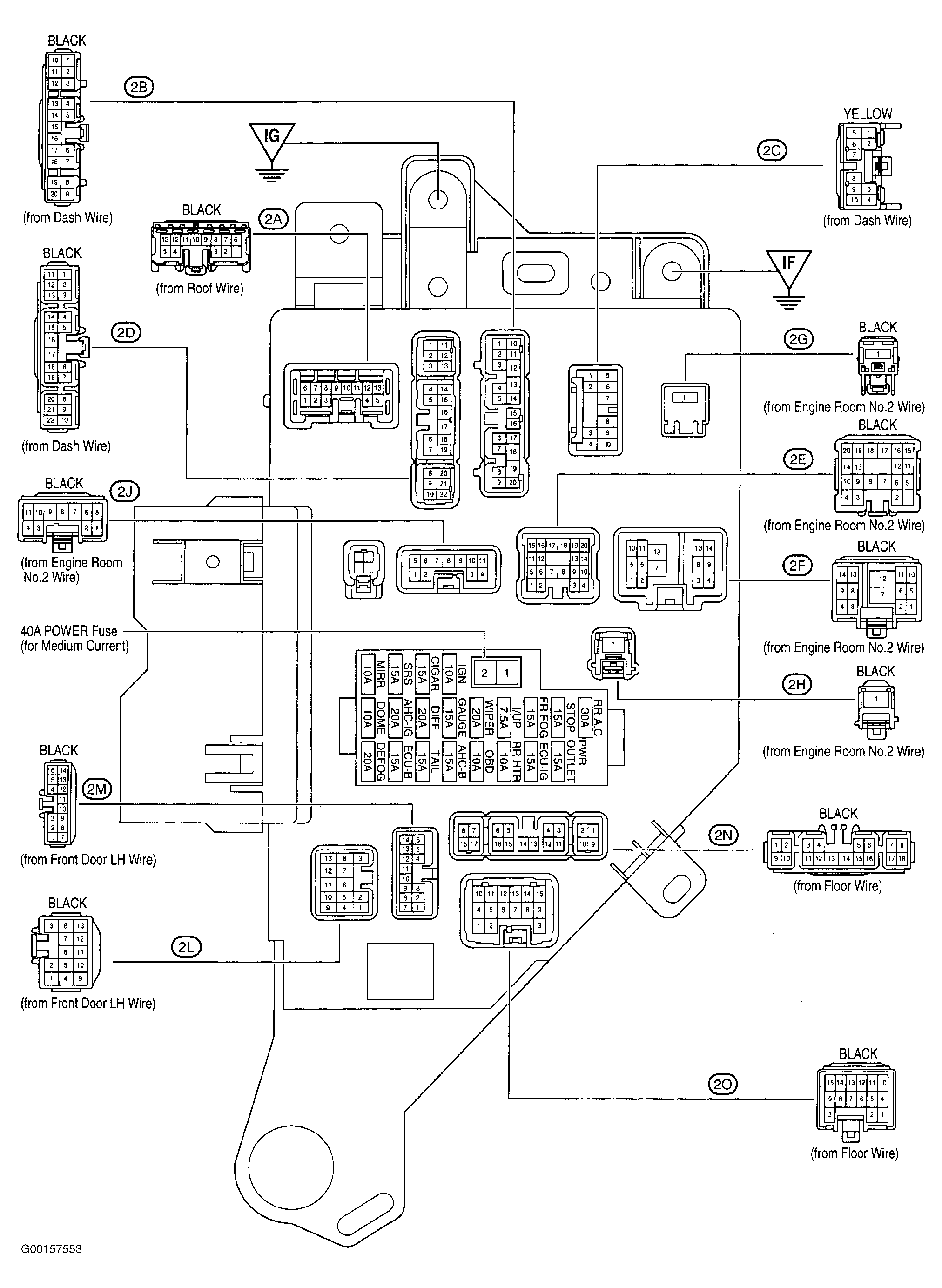

Fig 2: Identifying Cowl Side Junction Block Fuses (Left Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

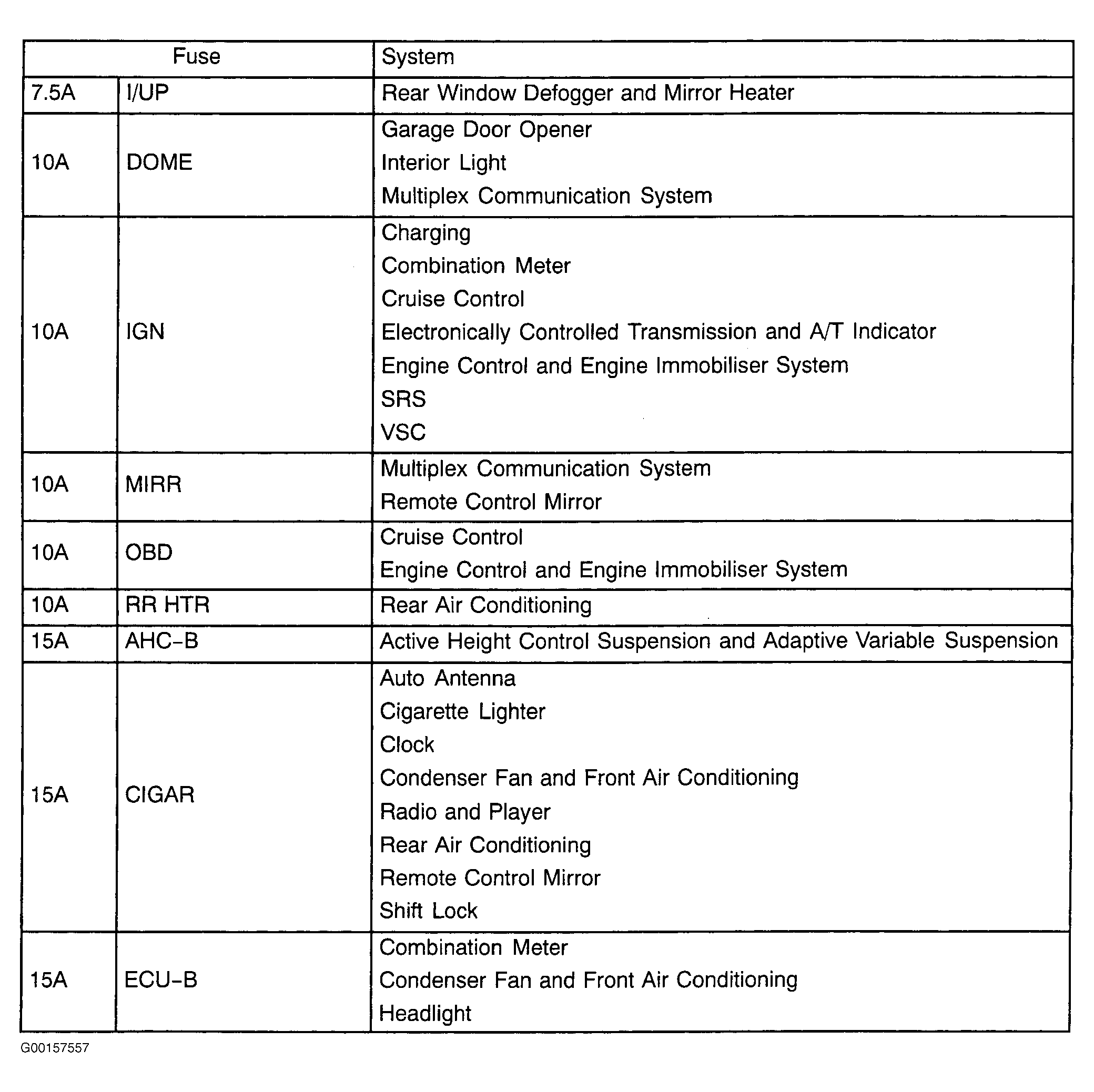

Fig 3: Cowl Side Junction Block (Left Side) Legend (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

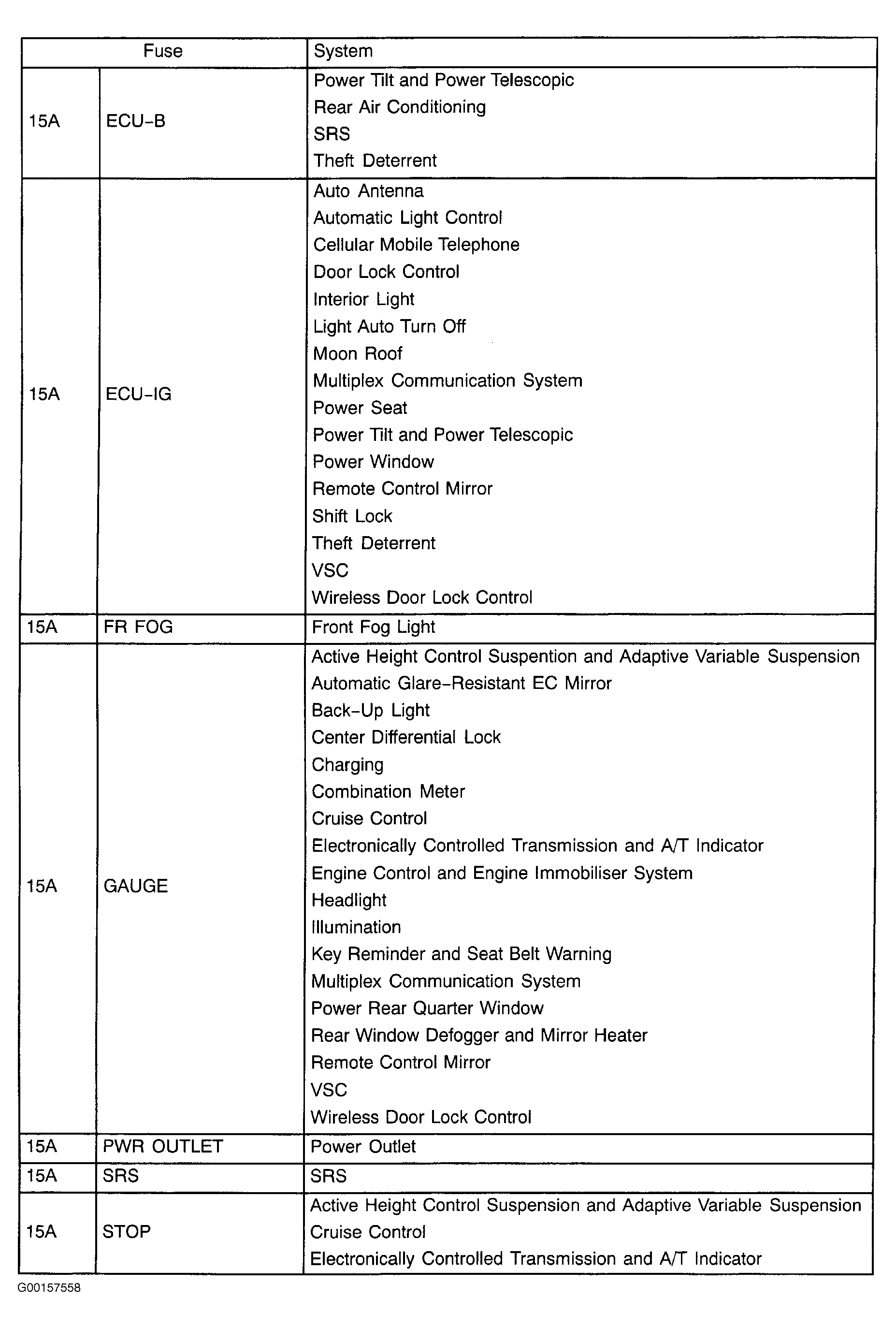

Fig 4: Cowl Side Junction Block (Left Side) Legend (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

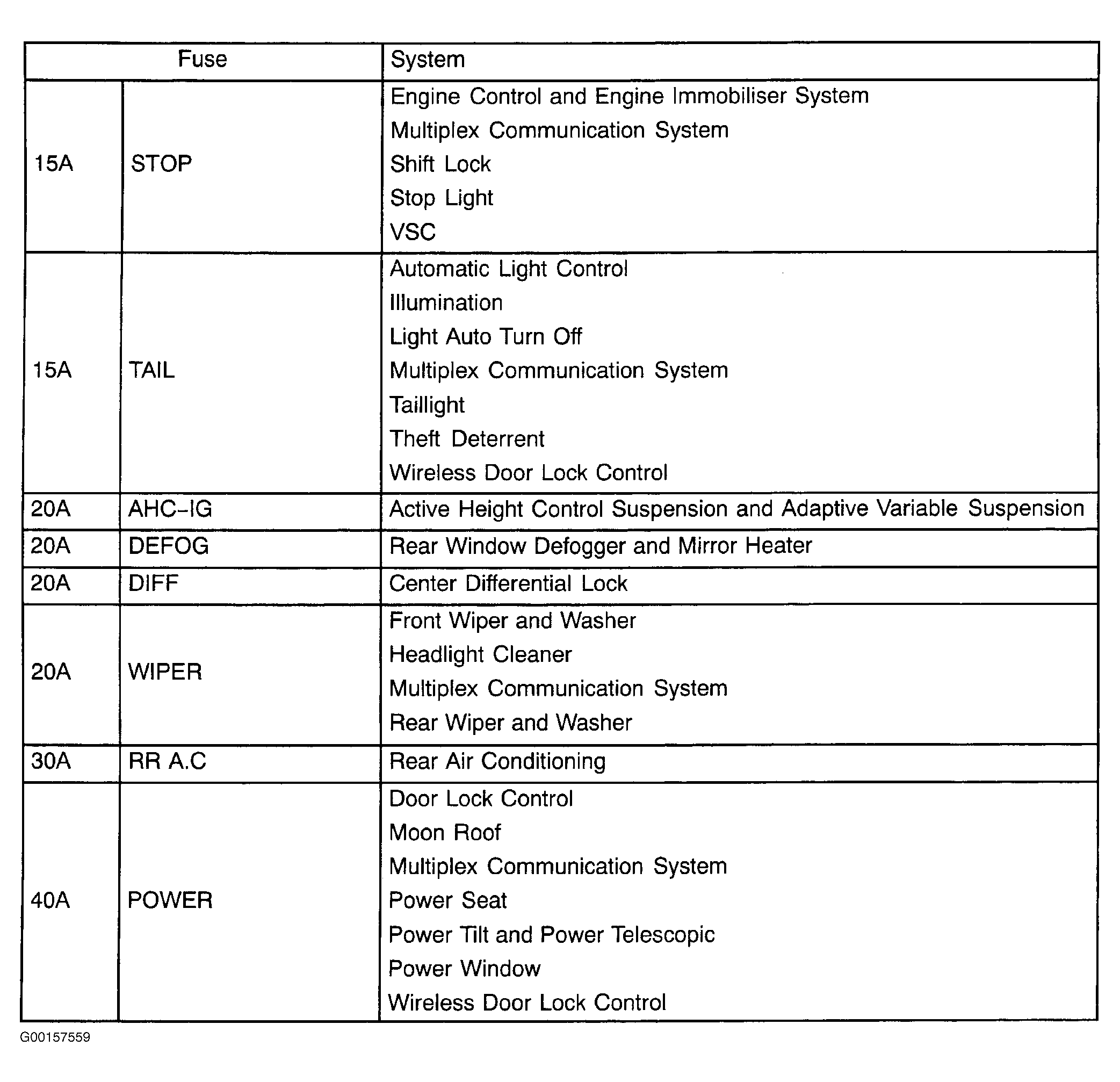

Fig 5: Cowl Side Junction Block (Left Side) Legend (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
