Lexus
›
2000
›
LX 470
›
Repair and Diagnosis
›
Suspension
›
Suspension Control Systems
›
Active Height Control & Adaptive Variable Suspension
›
Pin Voltage Test
Pin Voltage Test

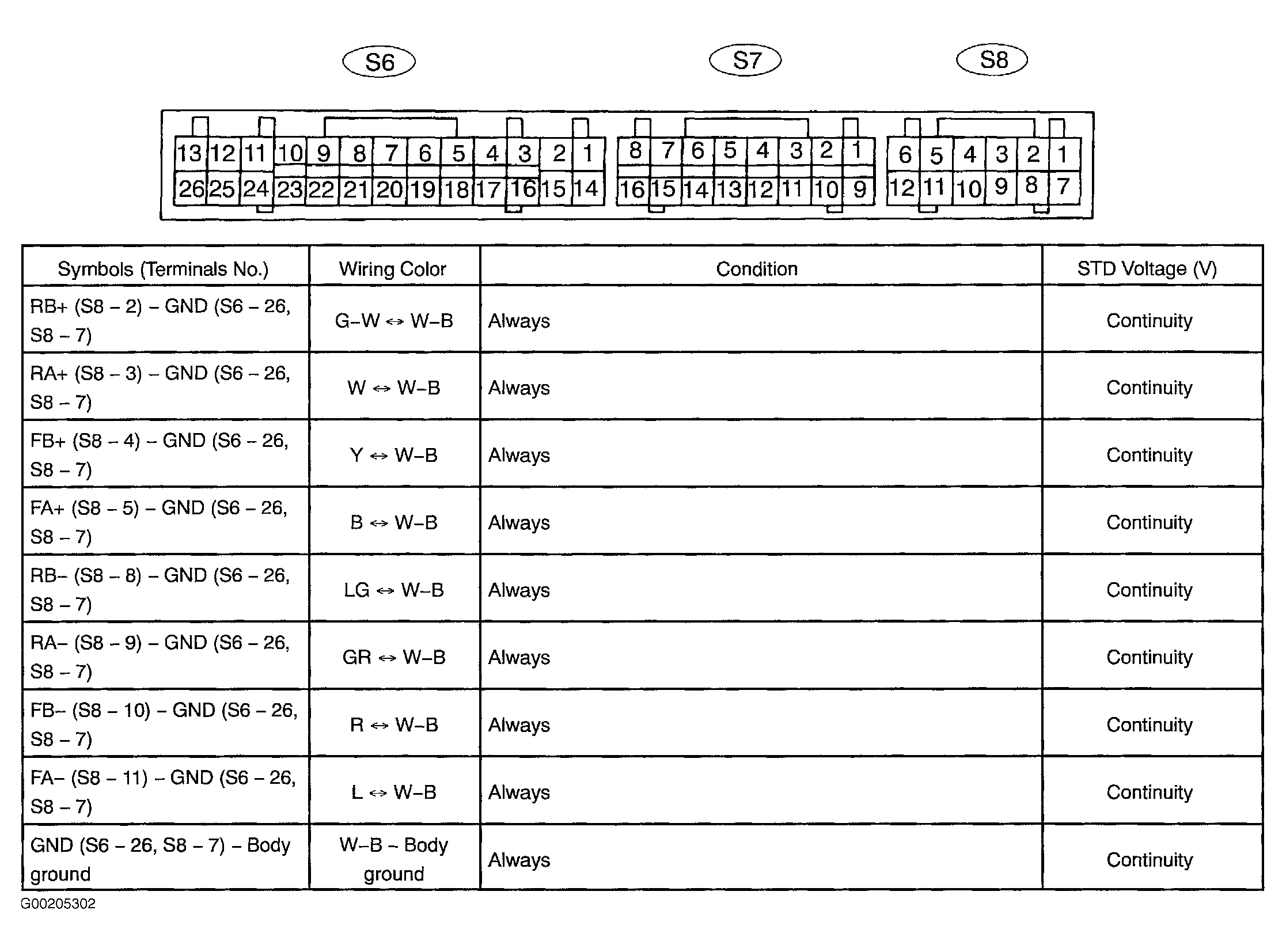

Fig 1: Suspension Control ECU Pin Voltage Chart (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

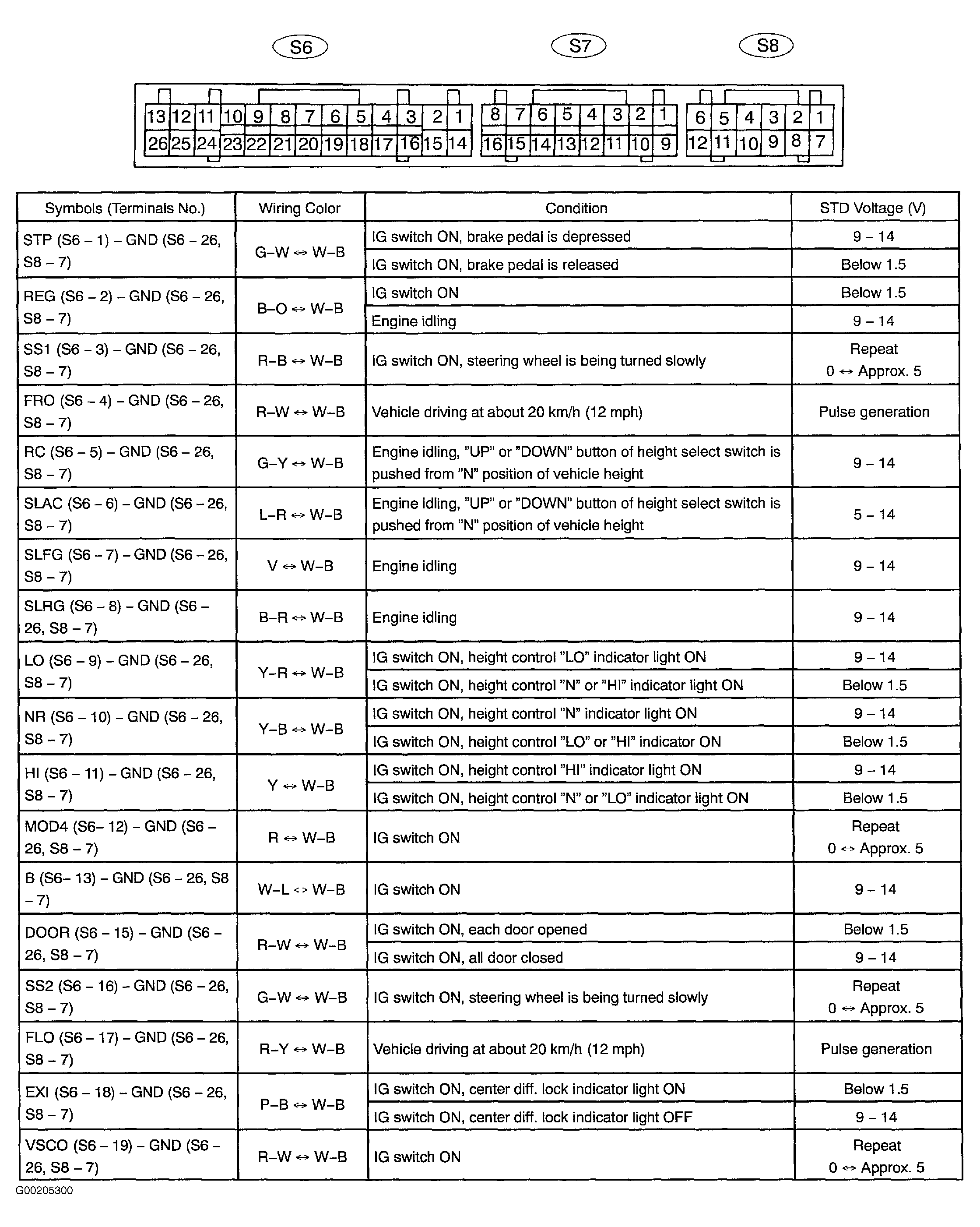

Fig 2: Suspension Control ECU Pin Voltage Chart (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

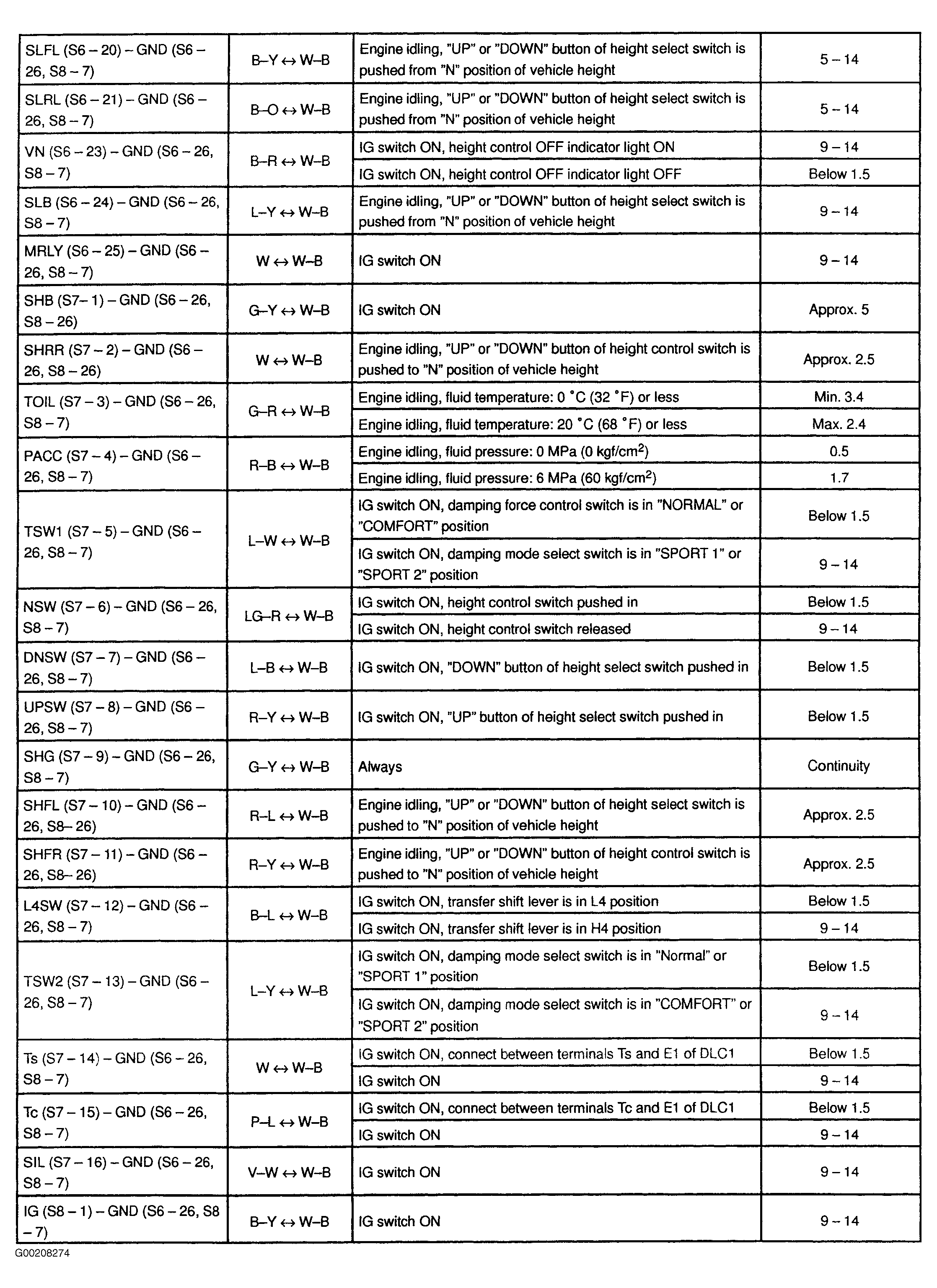

Fig 3: Suspension Control ECU Pin Voltage Chart (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
