Control Valve Assembly: Removal

1. Disconnect harness connector. See Fig 1.
2. Using special tool (09023-00100), disconnect AHC fluid lines from control valve assembly. See Fig 2.
3. Remove nuts and control valve assembly.
4. Remove holders, cushions and cushion bolts from control valve assembly.
5. Remove 4 bolts and cover.
6. Remove gasket.

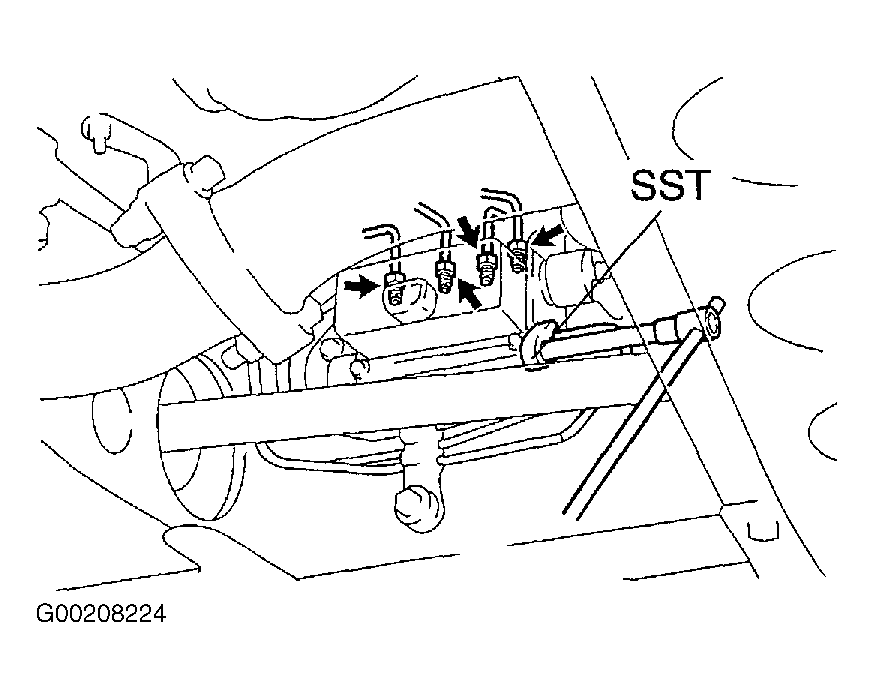

Fig 1: Locating Control Valve Assembly Components
