Test D: Height Control Operation Test (Active Test)

NOTE: DO NOT raise vehicle height higher than "HI" position when raising with active test.

1. Using special tool (09843-18020), jumper between terminals Ts and E₁ of (DLC1). See Figure.
2. Start engine. Push "DOWN" button of height select switch 5 times or more within 5 seconds. See Fig 1. Height control OFF indicator light should flash at .25 second intervals.
3. Operate each switch and check operation of height control of each wheel. See Fig 2.

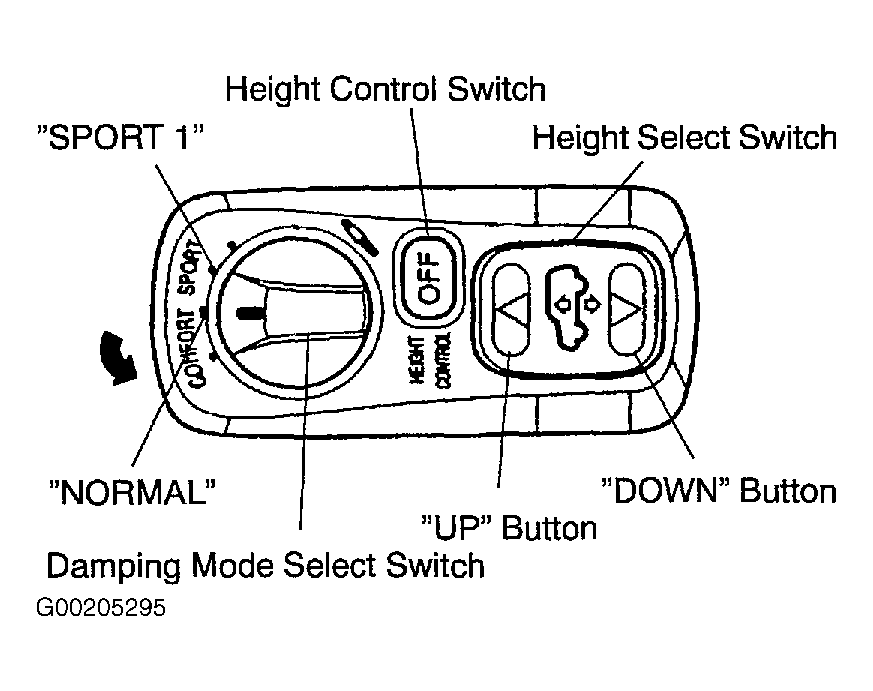

Fig 1: Locating Height Select Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

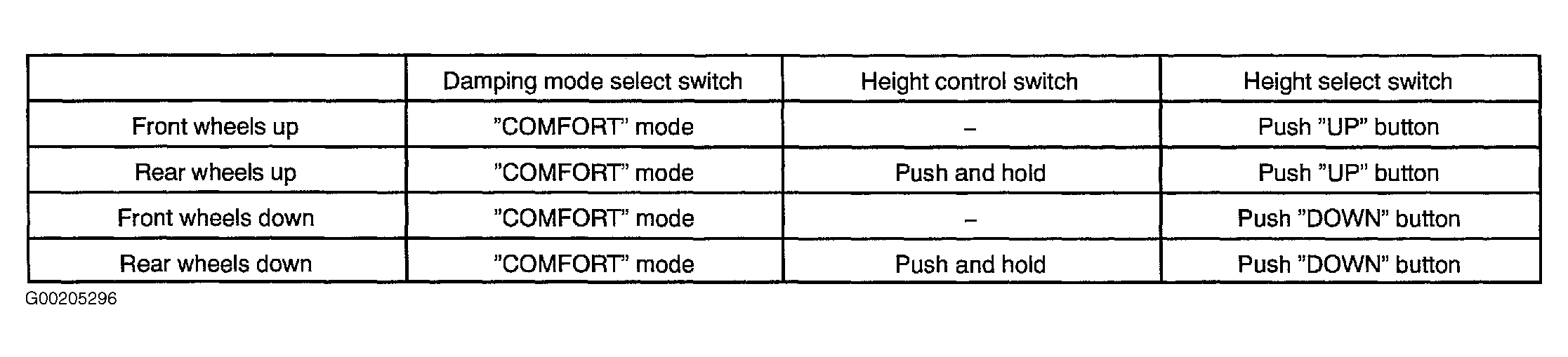

Fig 2: Testing Height Control Of Each Wheel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
