Active Height Control & Adaptive Variable Suspension
›
Trouble Shooting
›
System Pre-Check
›
Fluid Level
Fluid Level
Start engine on a level place. Adjust vehicle height to "N" position with vehicle unloaded. Do not turn engine off.

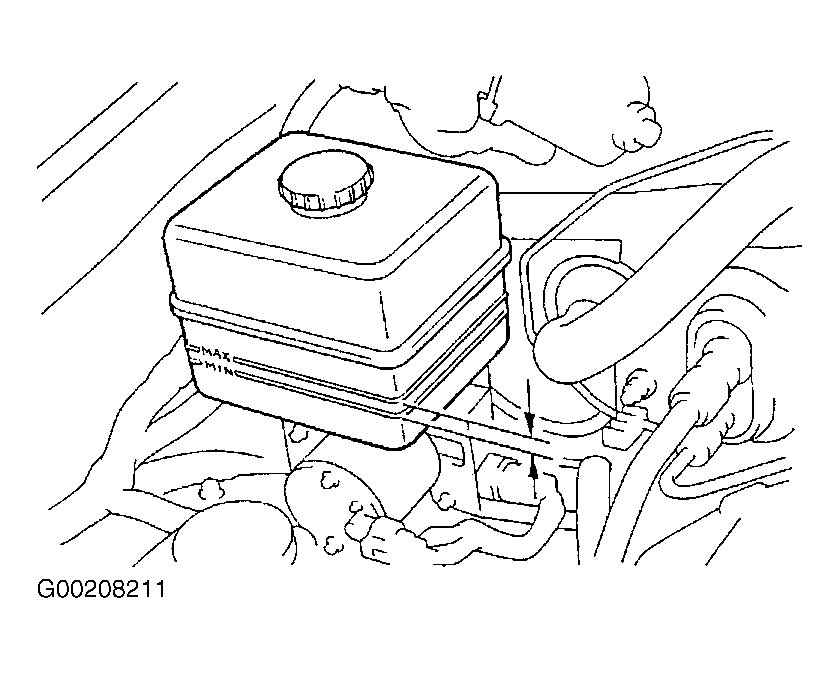

Check that fluid level in reservoir tank of AHC pump motor is within standard range. See
Figure
.
