Removal & Installation : GS300: Components

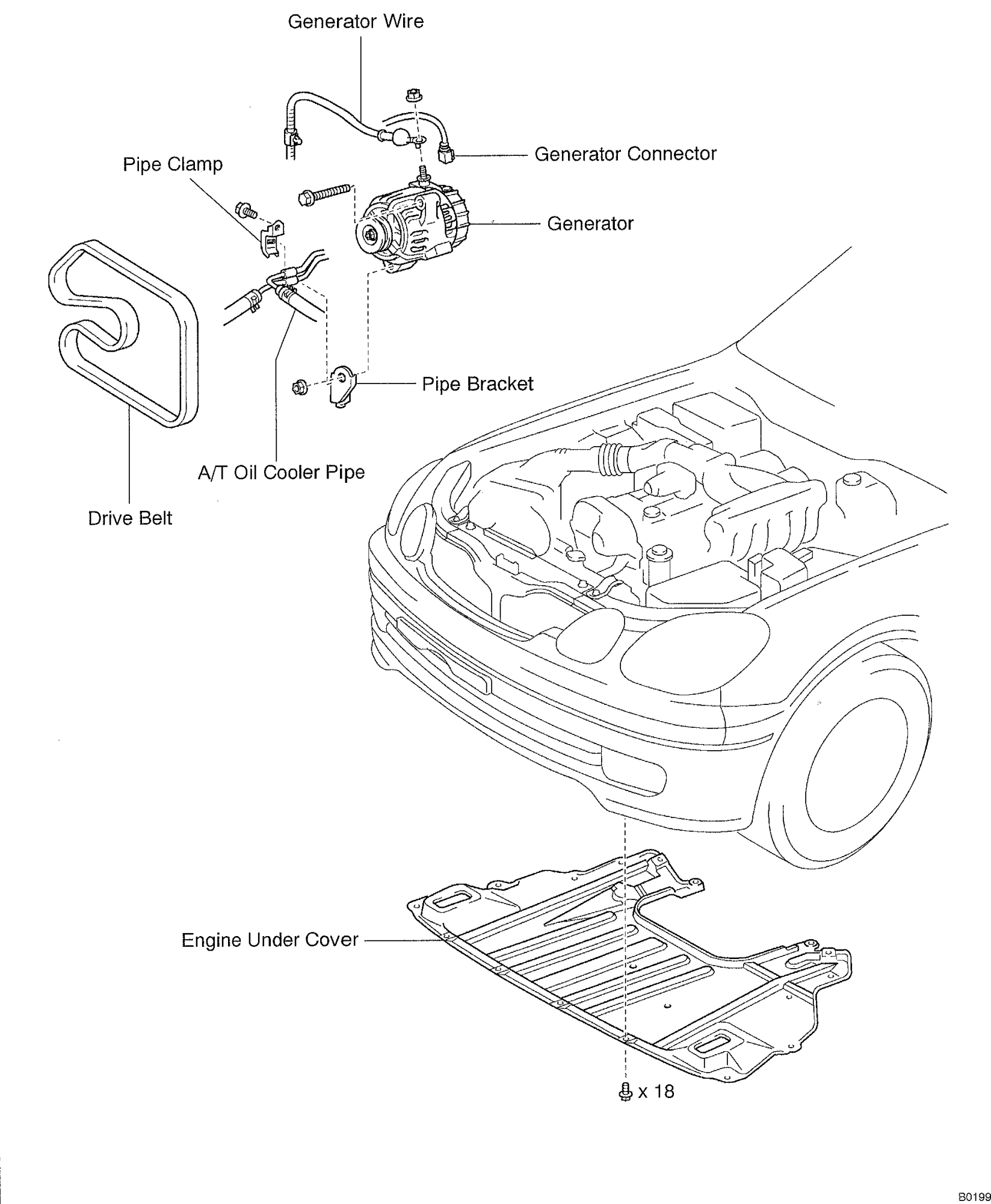

Fig 1: Identifying Generator Replacement Components

G00501227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
