Removal & Installation (GS300 & GS400)

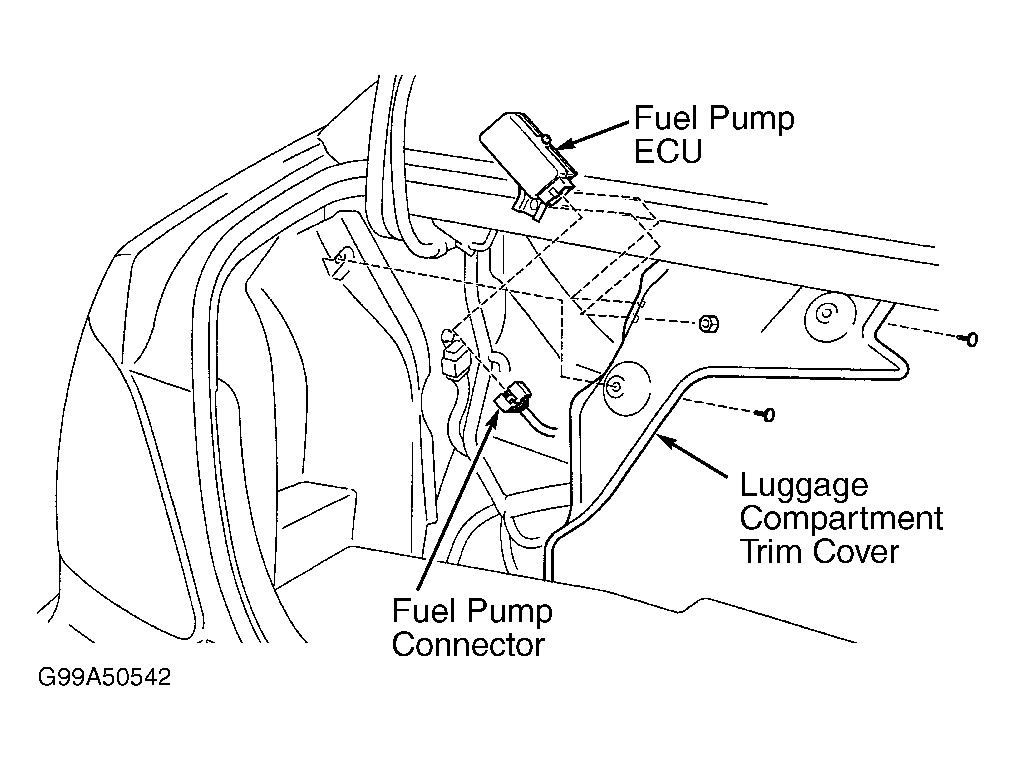

Fuel pump ECU is located on left side of luggage compartment. See Fig 1. Remove luggage compartment trim cover. Disconnect electrical connector at fuel pump ECU. Remove bolt and fuel pump ECU. To install, reverse removal procedure.
