Section 23 (Thermostat): Removal

WARNING: This page is about a different car, the 2000 Lexus SC 300, 1999 Lexus SC 300, 1998 Lexus SC 300, and 1997 Lexus SC 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal of the thermostat would have an adverse effect, causing a lowering of cooling efficiency. Do not remove the thermostat, even if the engine tends to overheat.

DRAIN ENGINE COOLANT.
DISCONNECT WATER INLET FROM WATER PUMP, AND REMOVE THERMOSTAT.

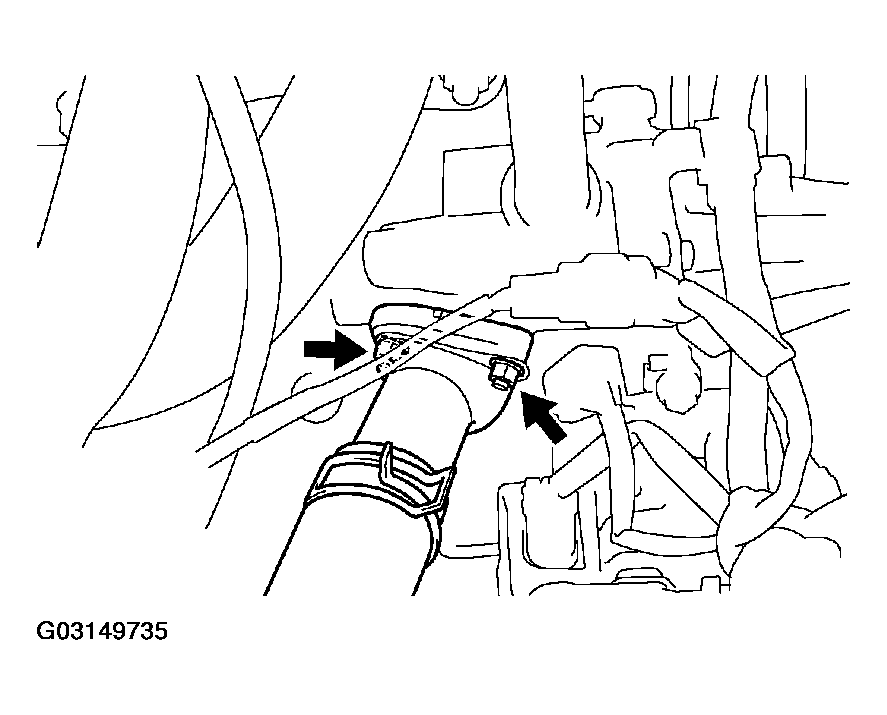

1. Remove the 2 nuts holding the water inlet to the water pump, and disconnect the water inlet from the water pump.
2. Remove the thermostat.
3. Remove the gasket from the thermostat.
