Abs & TRAC Actuator: Components

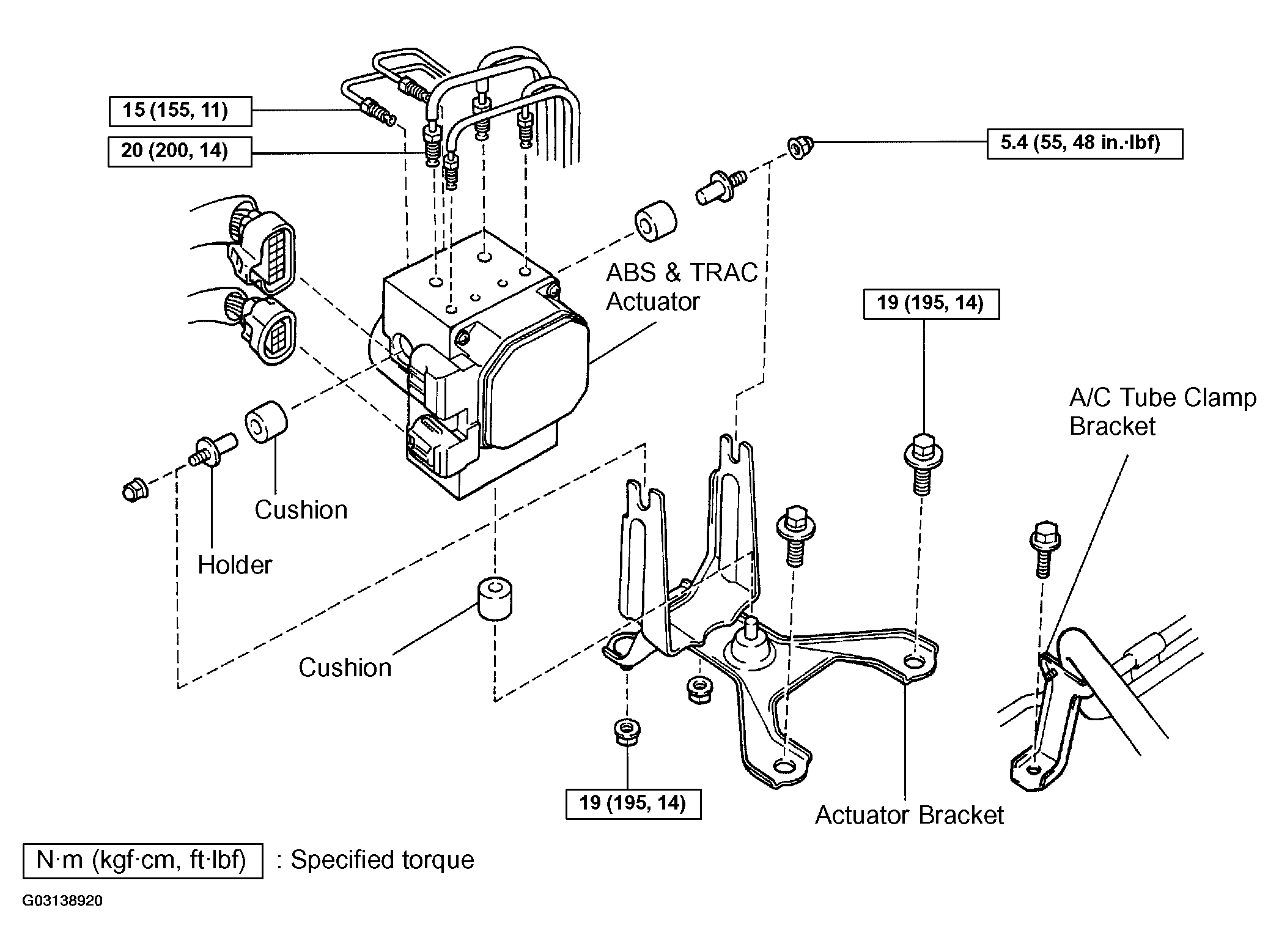

Fig 1: Exploded View Of ABS & TRAC Actuator Assembly

G03138920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
