Abs Actuator: Components

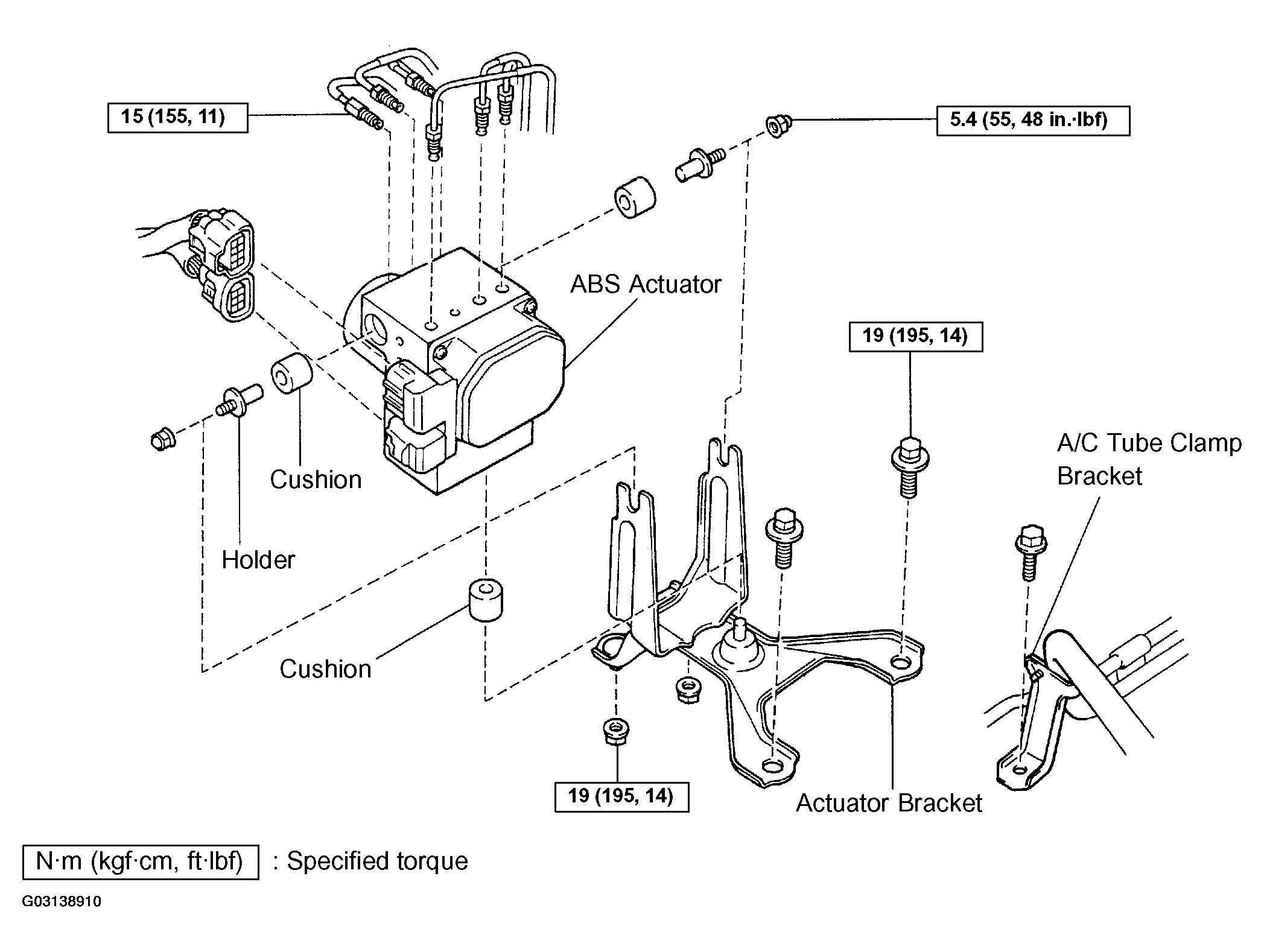

Fig 1: Exploded View Of ABS Actuator Assembly

G03138910

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
