Home › Lexus › 2001 › ES 300 › Repair and Diagnosis › Brakes › Traction Control › Front Speed Sensor › Components

Front Speed Sensor: Components

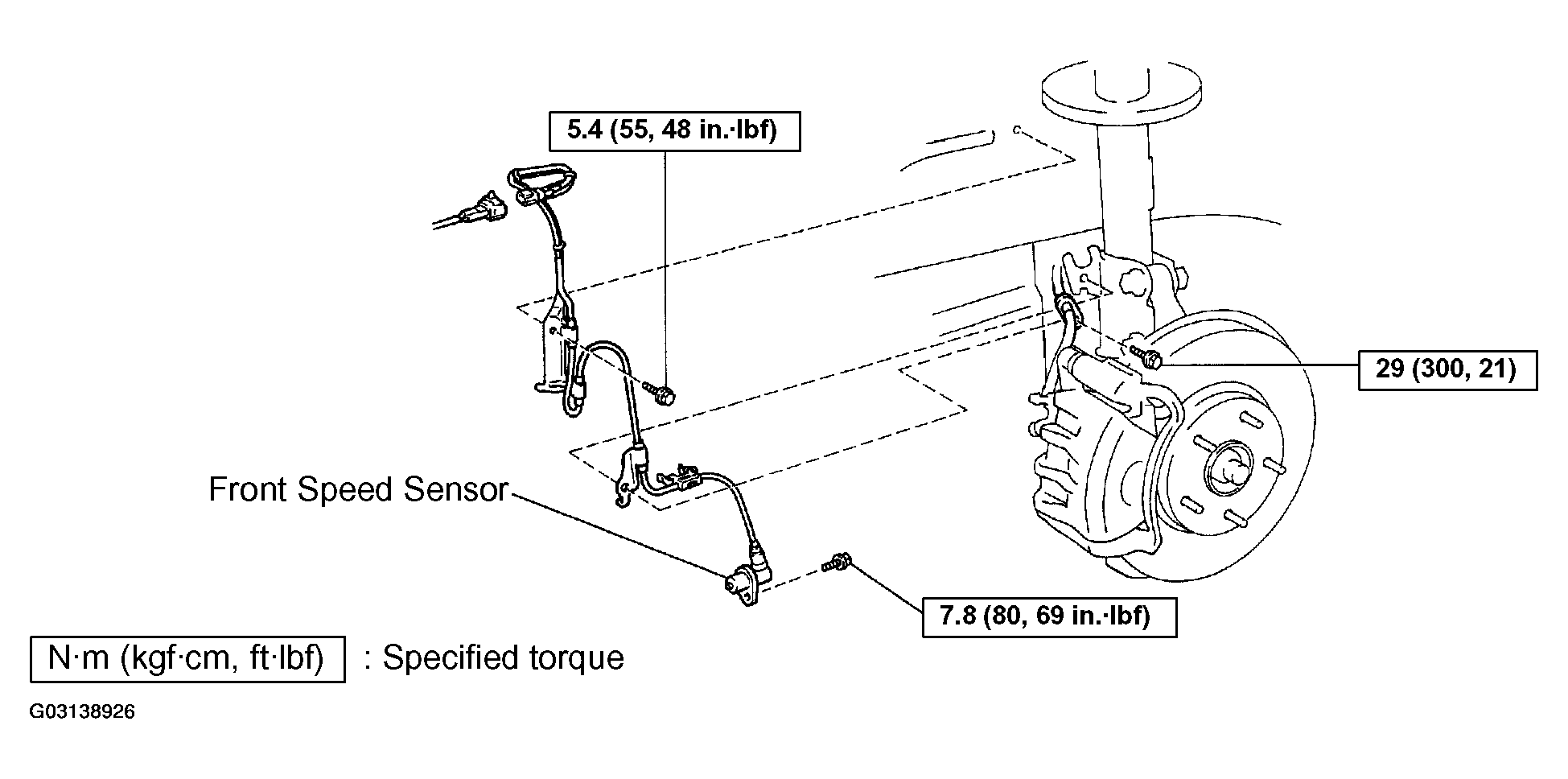

Fig 1: Exploded View Of Front Speed Sensor Components
G03138926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
