Rear Speed Sensor: Components

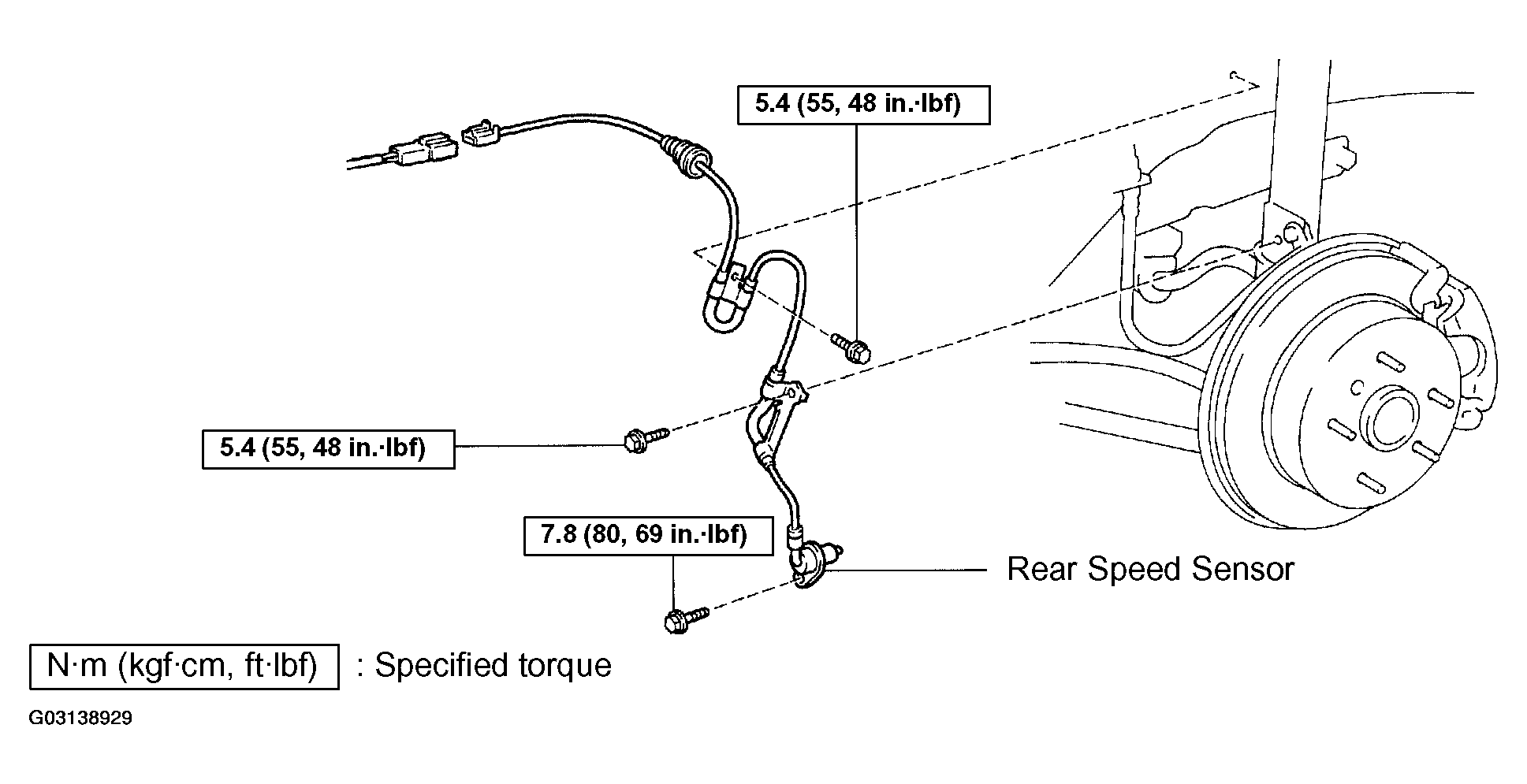

Fig 1: Exploded View Of Rear Speed Sensor Components

G03138929

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
