Instrument Panel

NOTE: For instrument panel electrical component locations, see Fig 1.

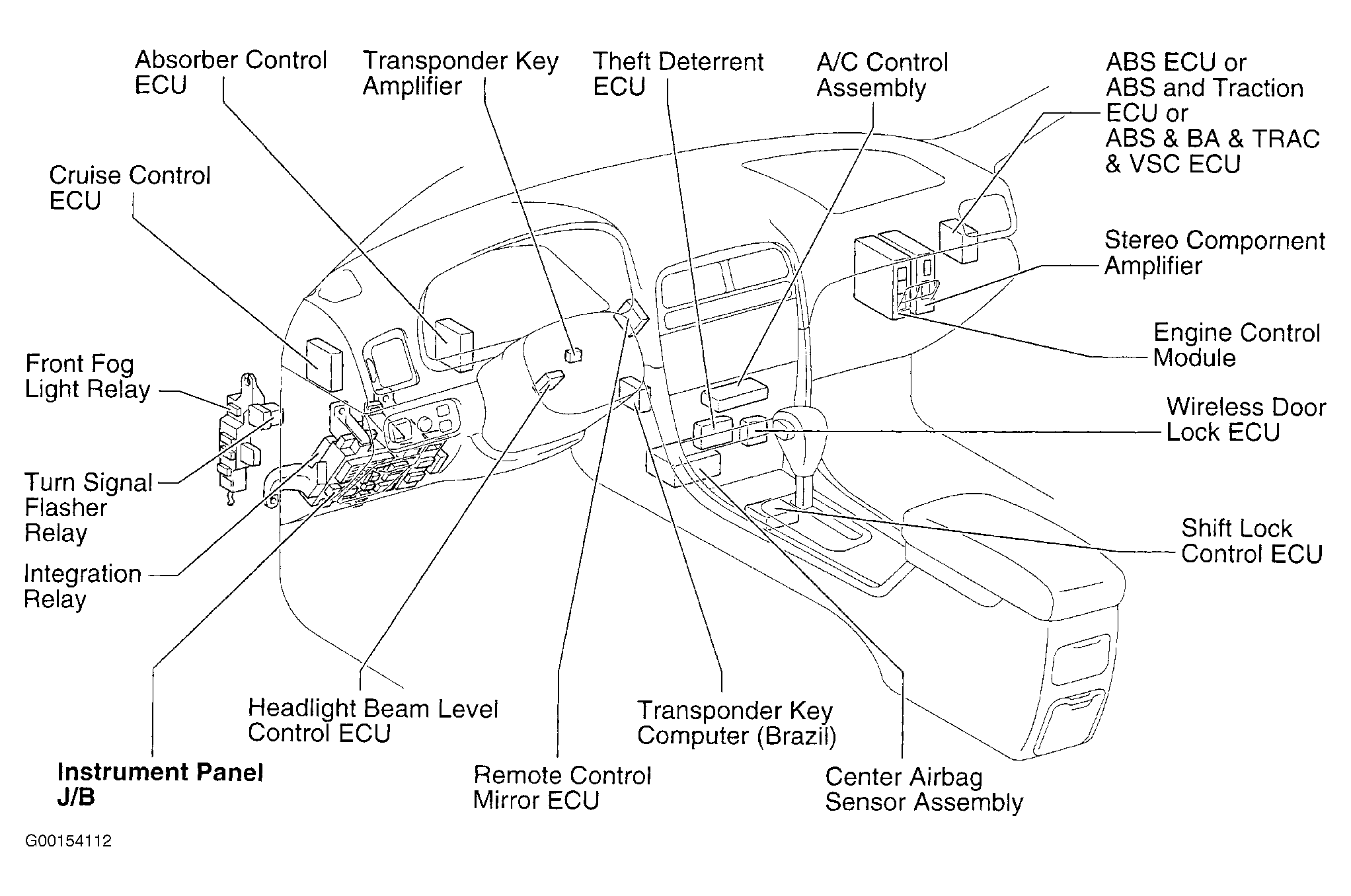

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

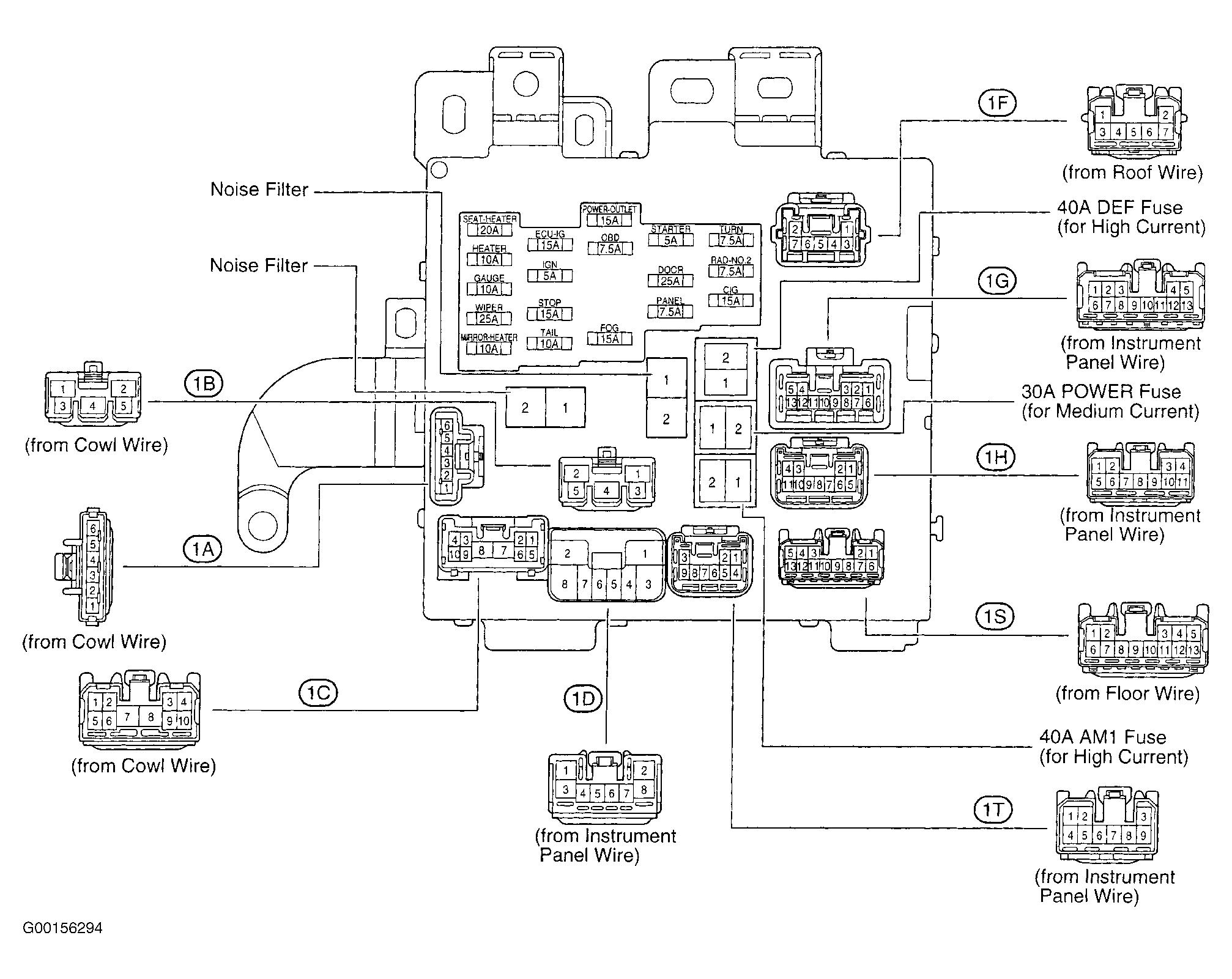

Fig 2: Identifying Instrument Panel J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Instrument Panel J/B Legend (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

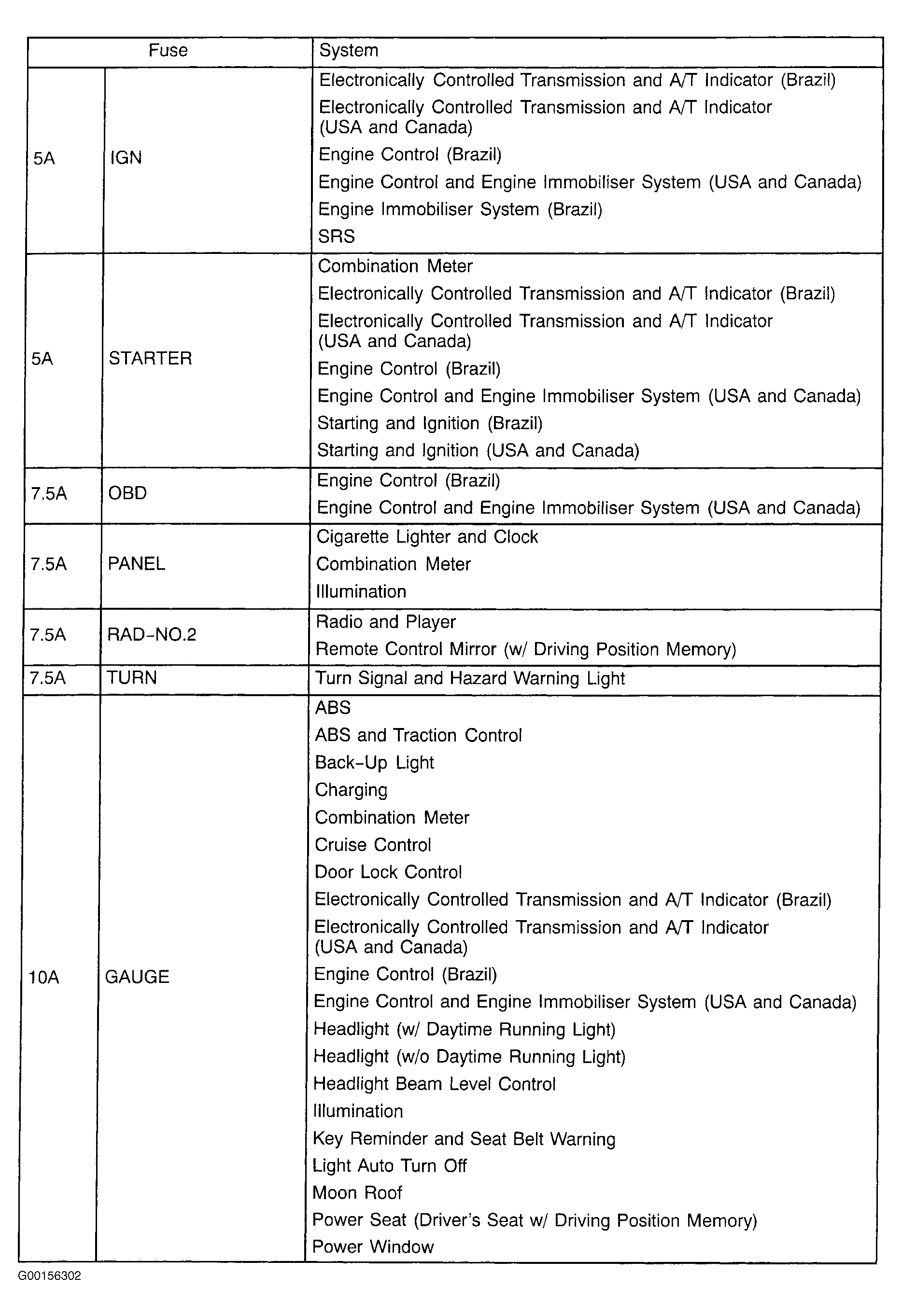

Fig 4: Instrument Panel J/B Legend (2 Of 4)

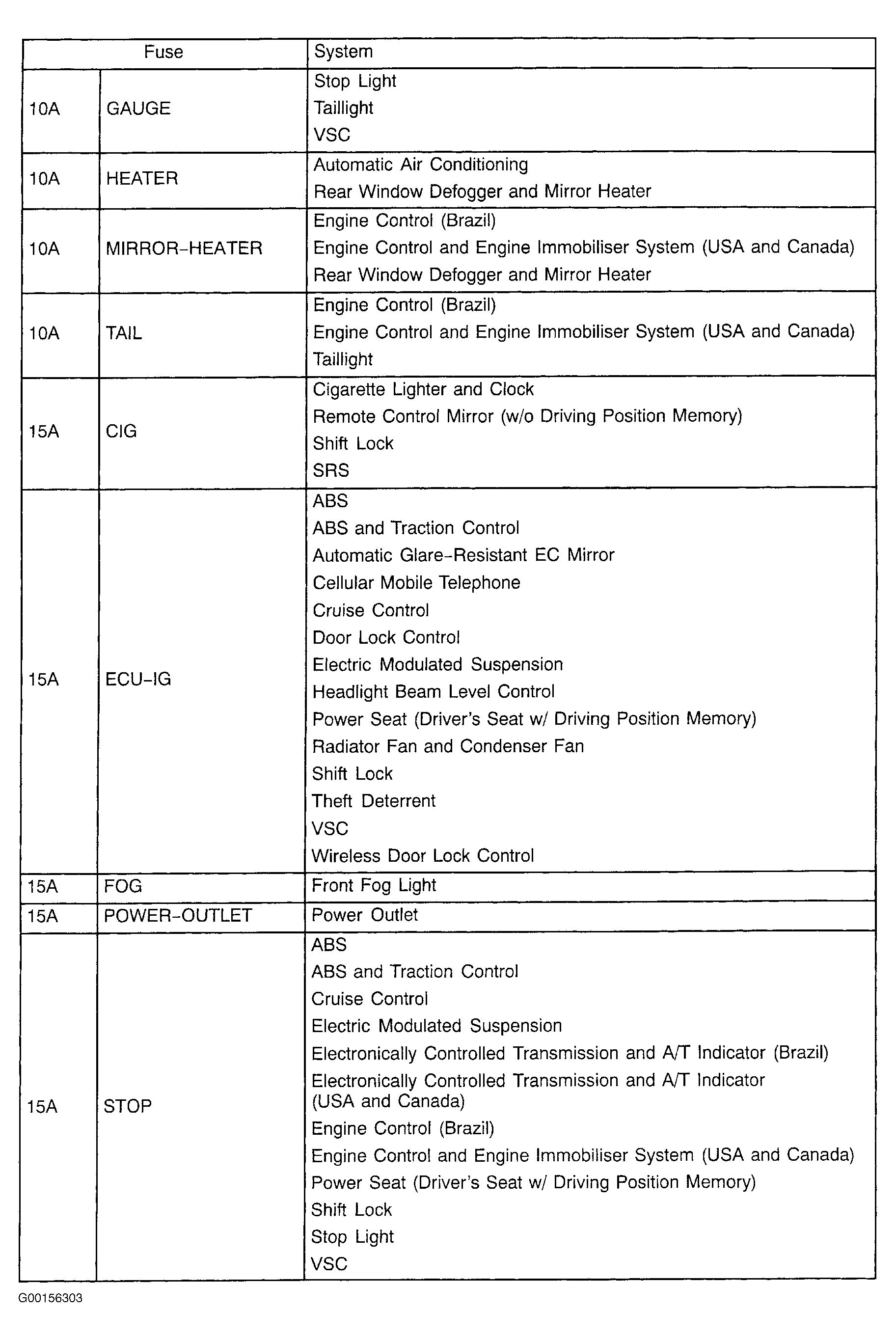

Fig 5: Instrument Panel J/B Legend (3 Of 4)

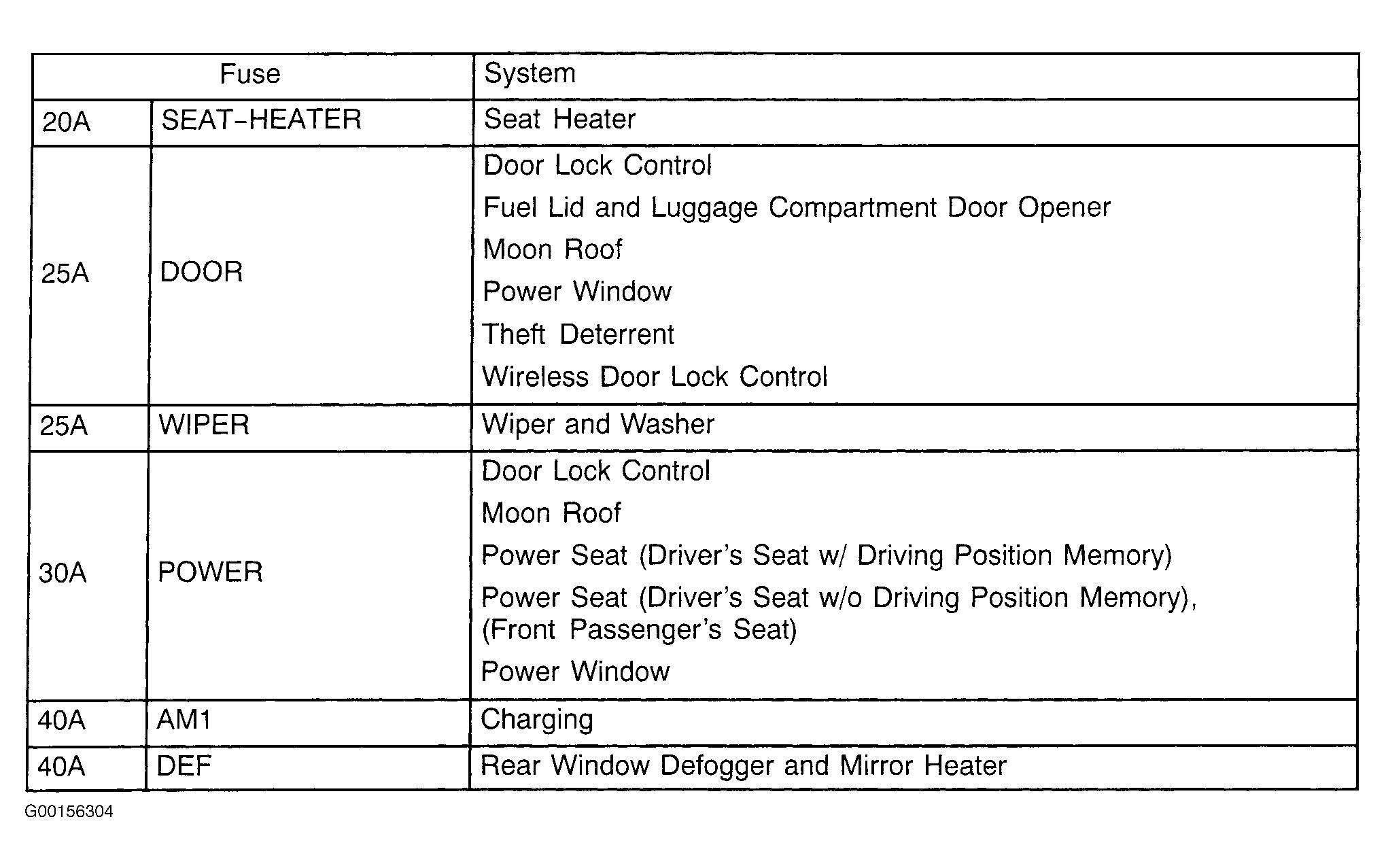

Fig 6: Instrument Panel J/B Legend (4 Of 4)
