Front Speed Sensor: Components

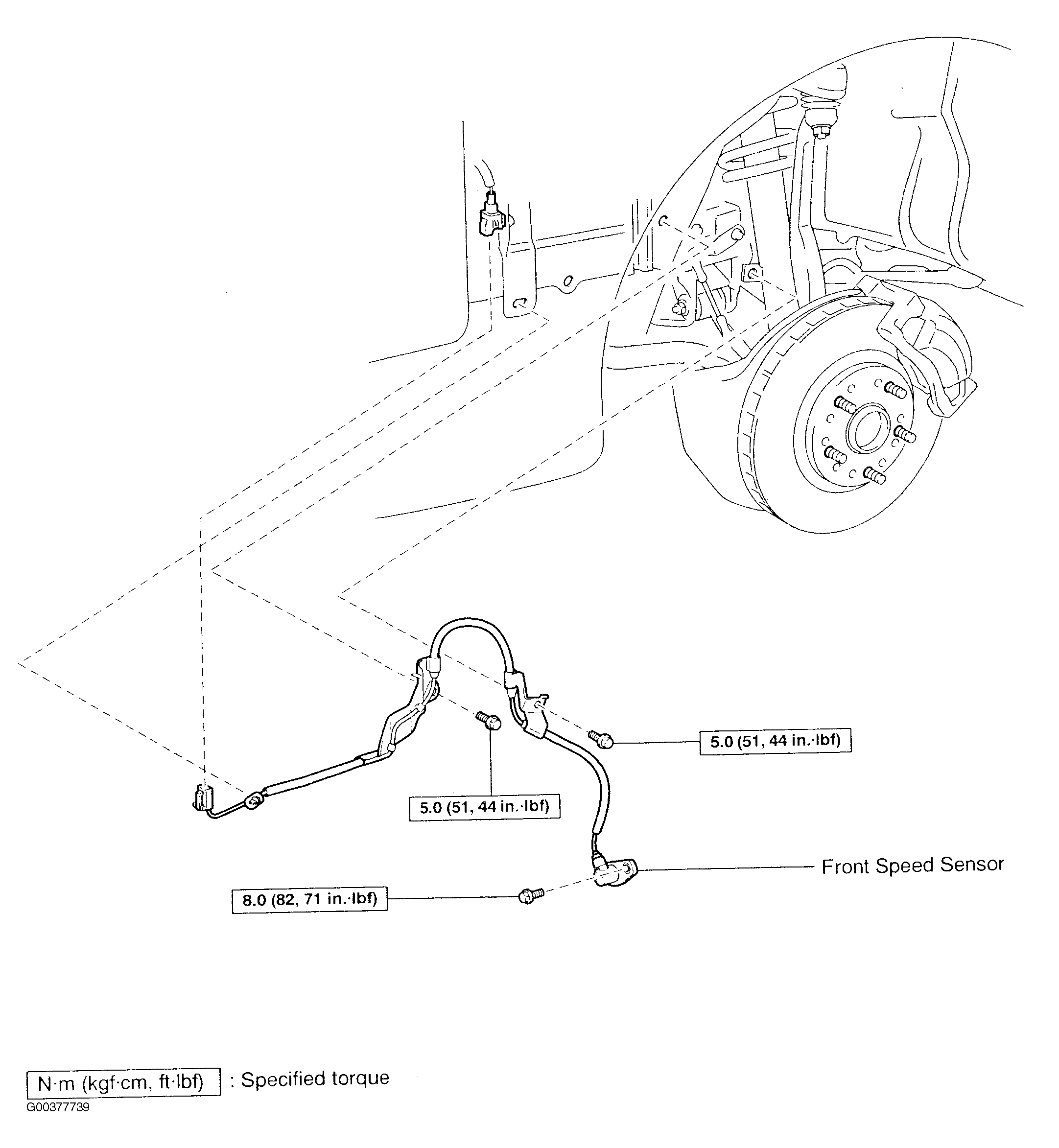

Fig 1: Exploded View Of Front Speed Sensor Removal &
G00377739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
