Charging Systems: Charging: Generator: Components

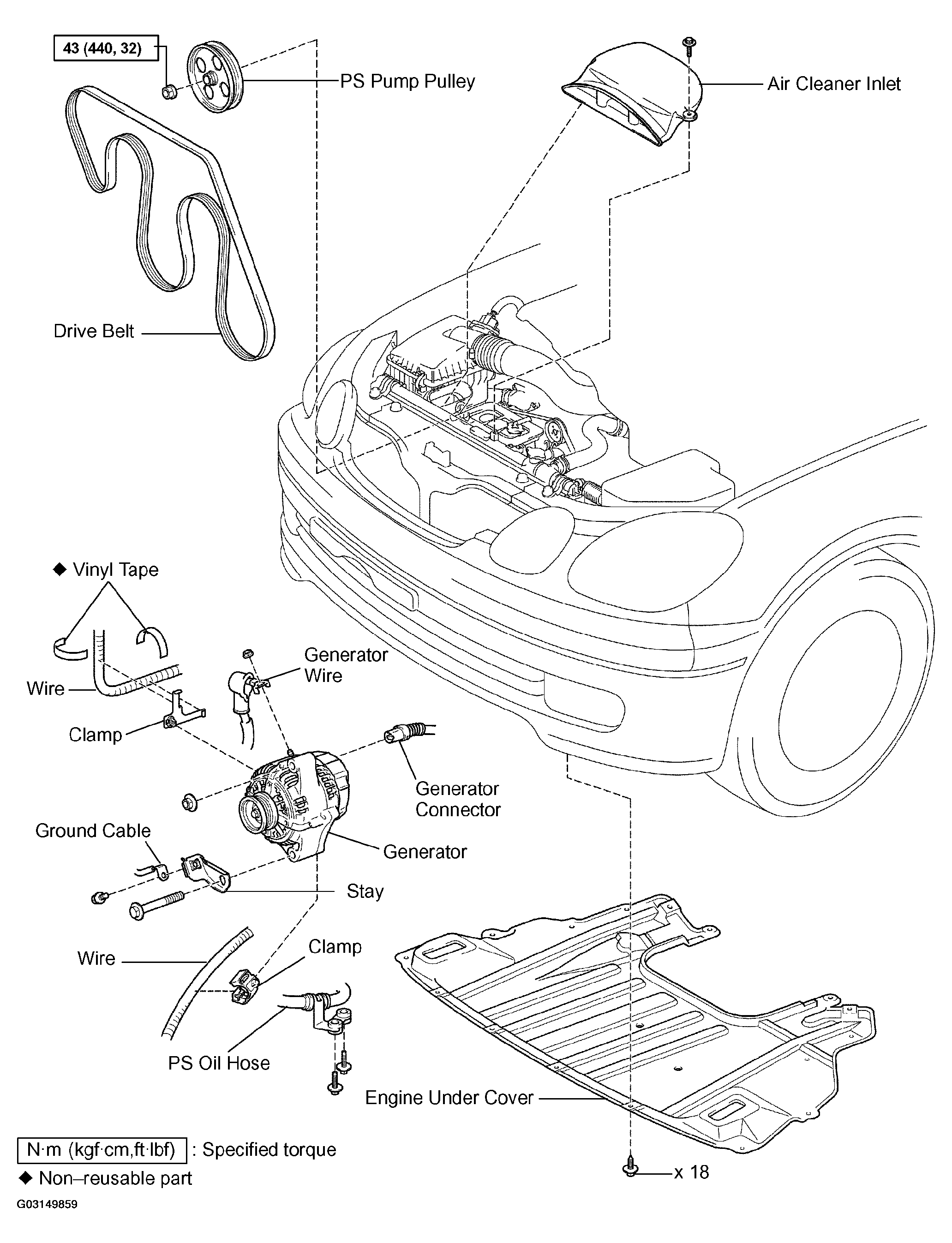

Fig 1: Exploded View Of Generator Removal & Installation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

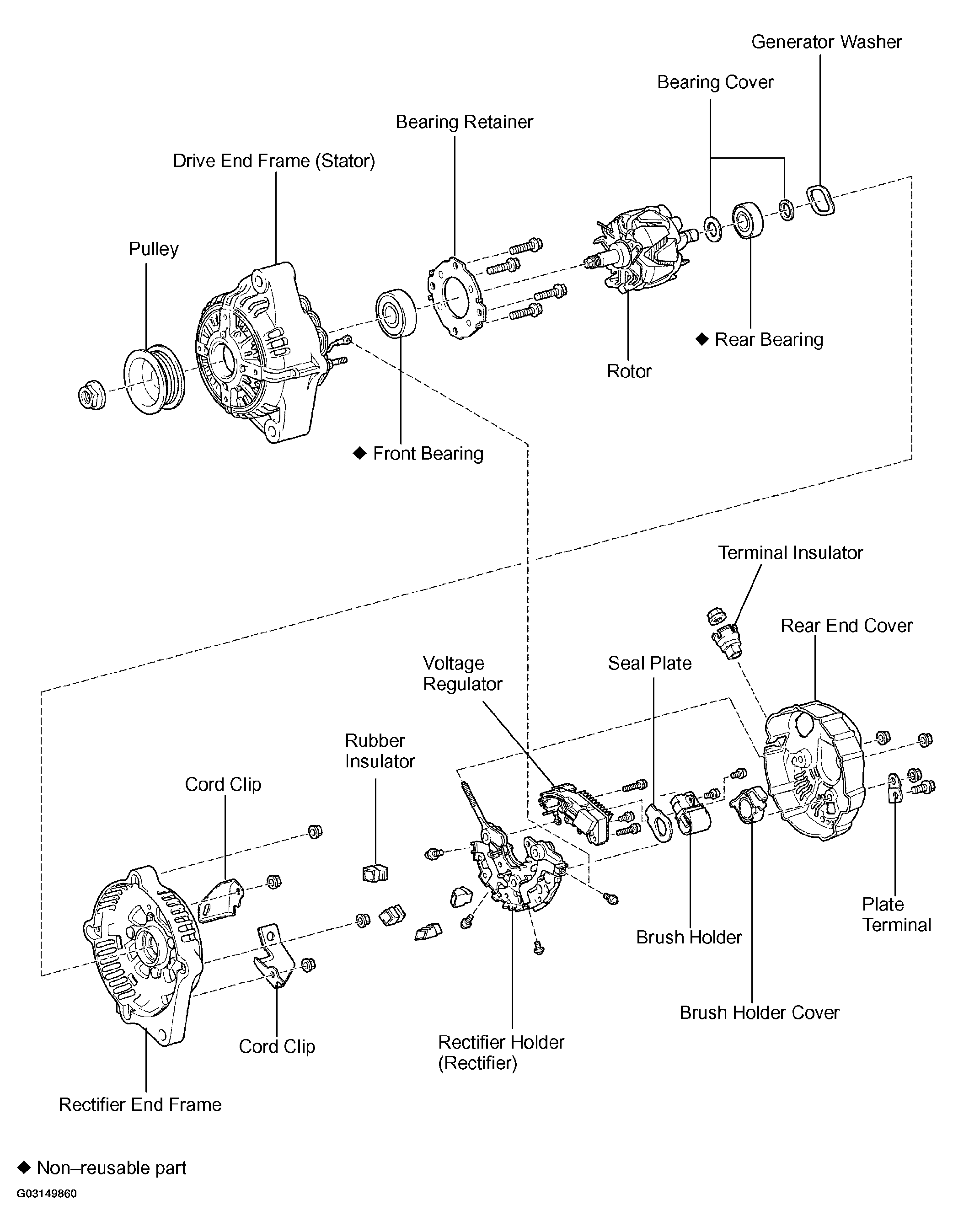

Fig 2: Exploded View Of Generator Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
