Section 8 (Radiator): Components

WARNING: This page is about a different car, the 2001 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

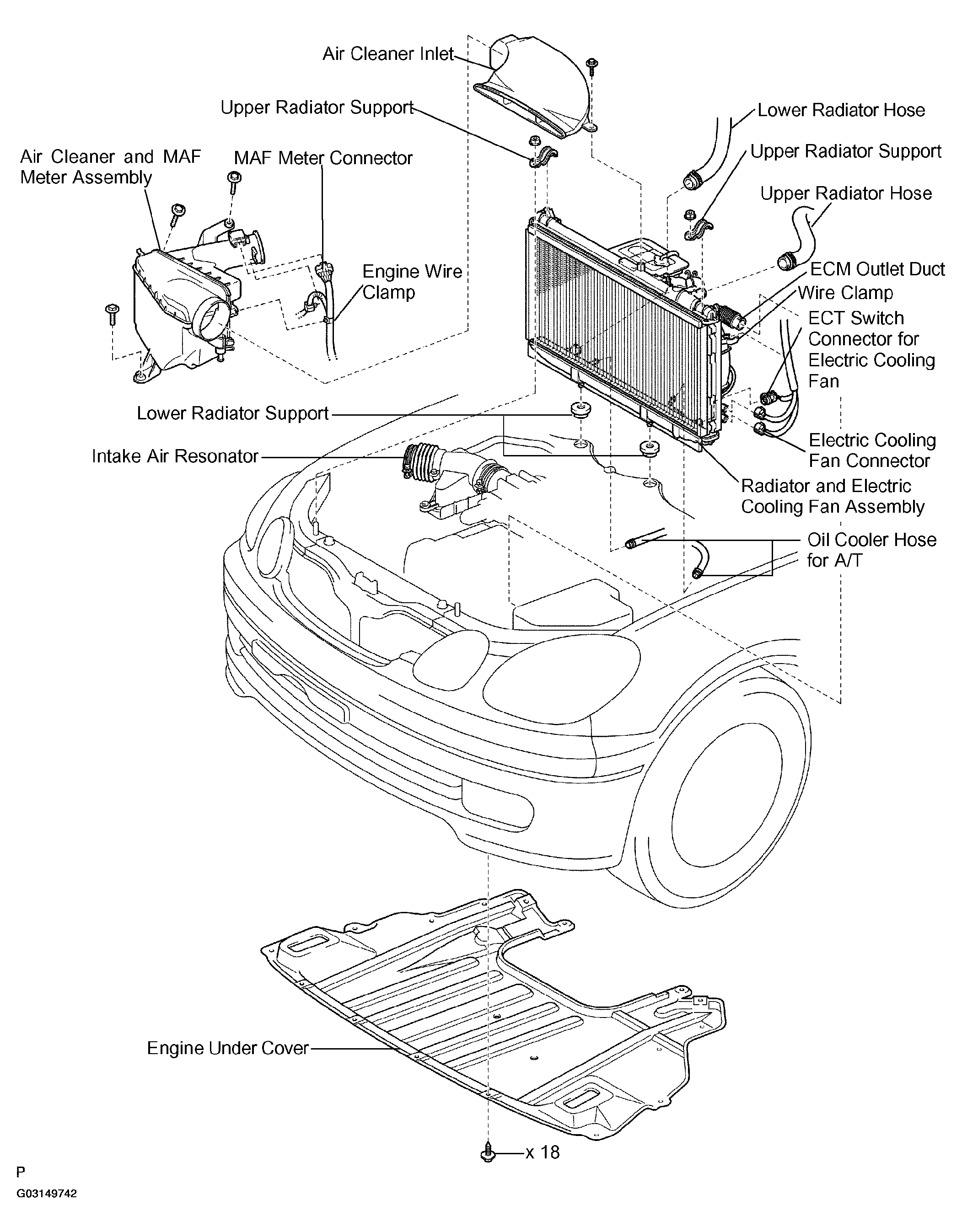

Fig 1: Exploded View Of Radiator Removal & Installation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

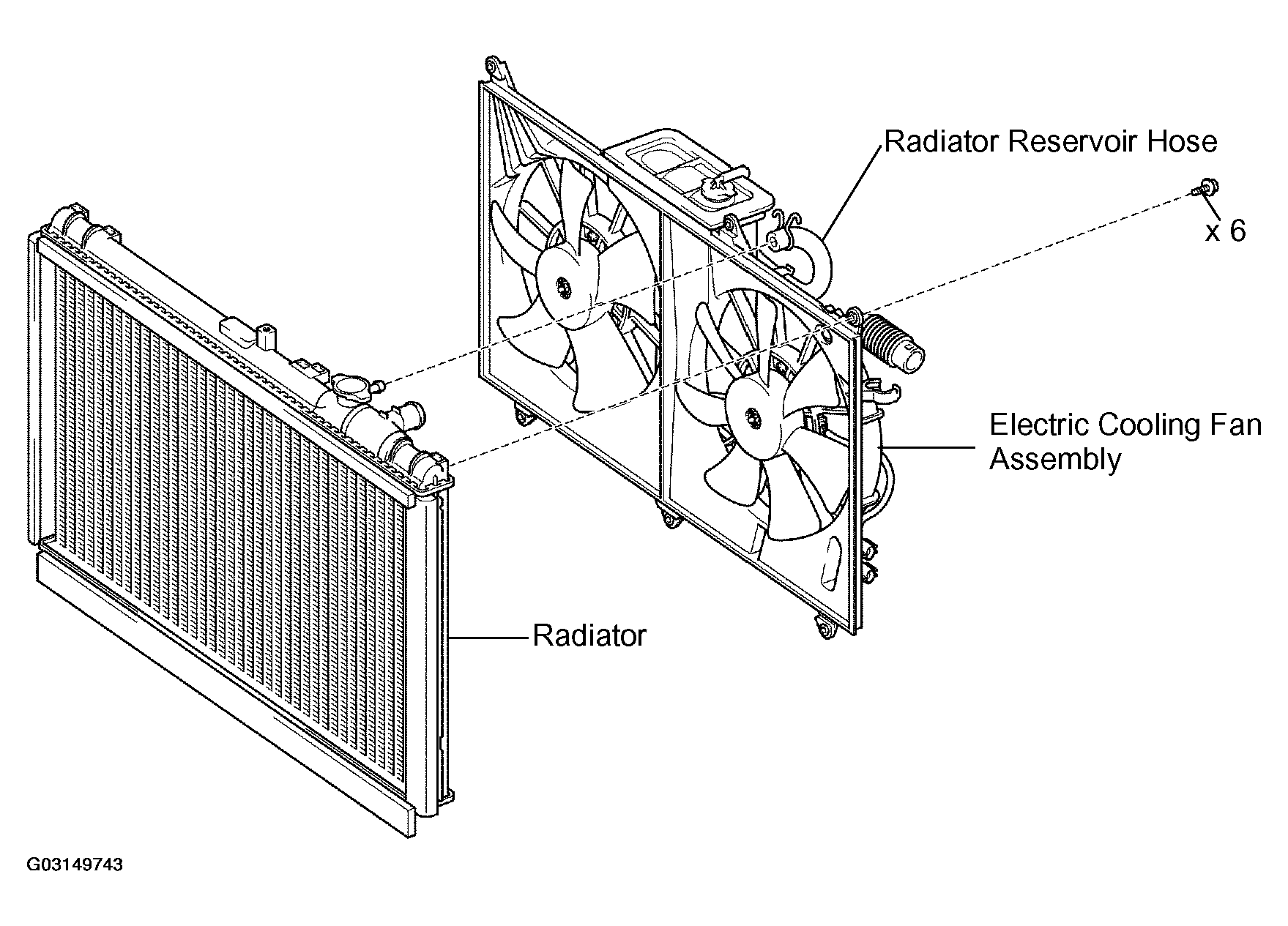

Fig 2: Exploded View Of Electric Cooling Fan Removal & Installation

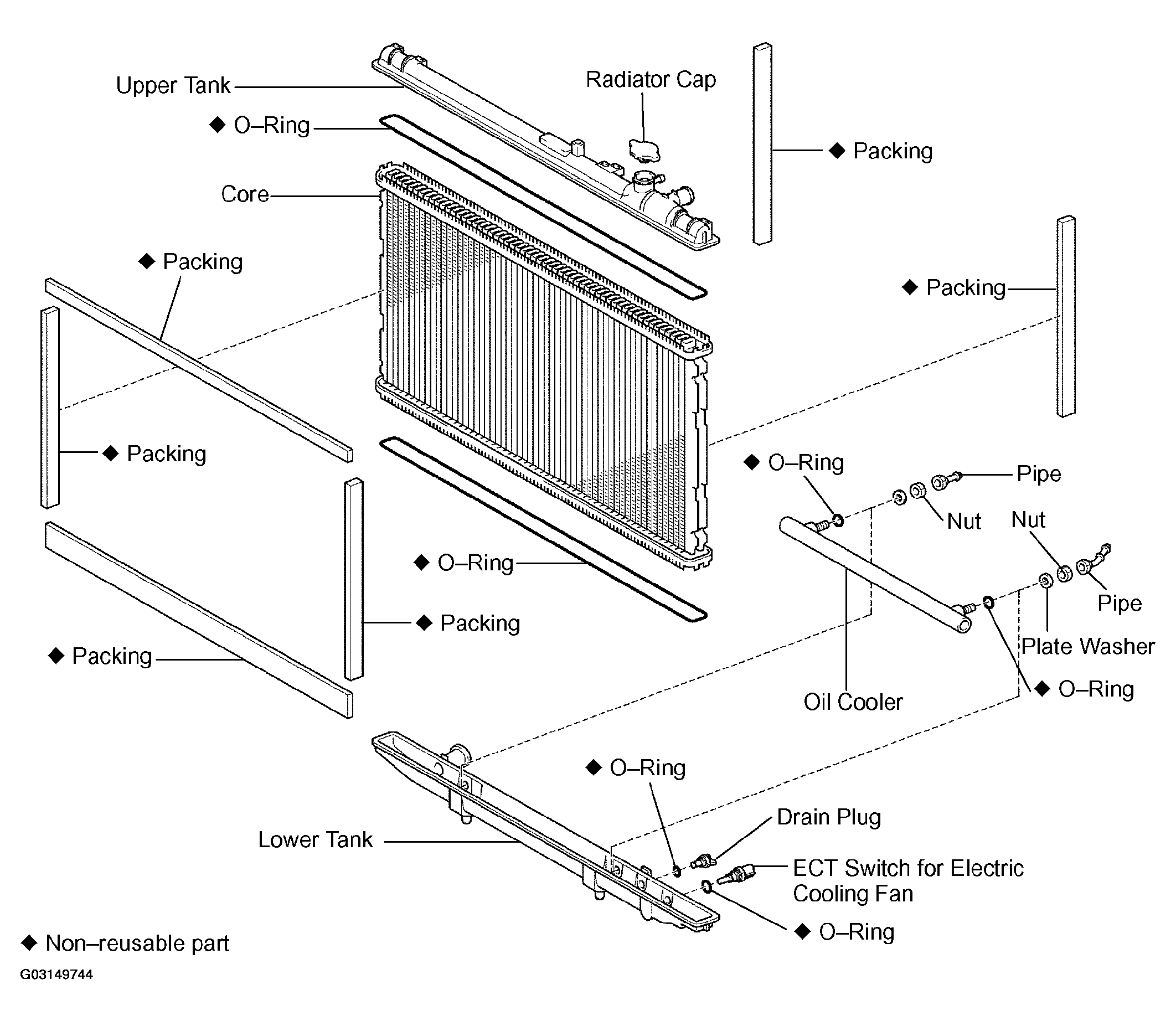

Fig 3: Exploded View Of Radiator Assembly
